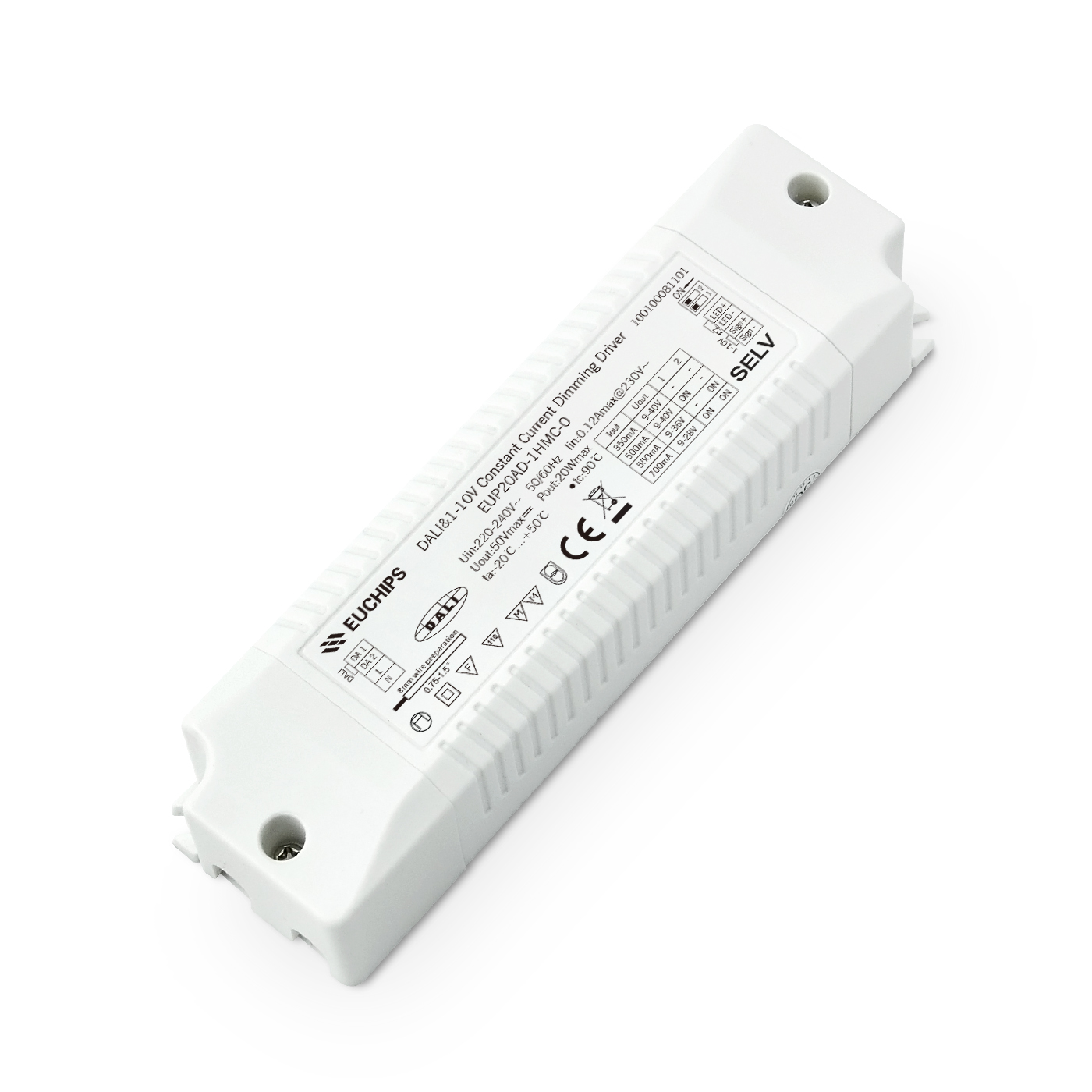

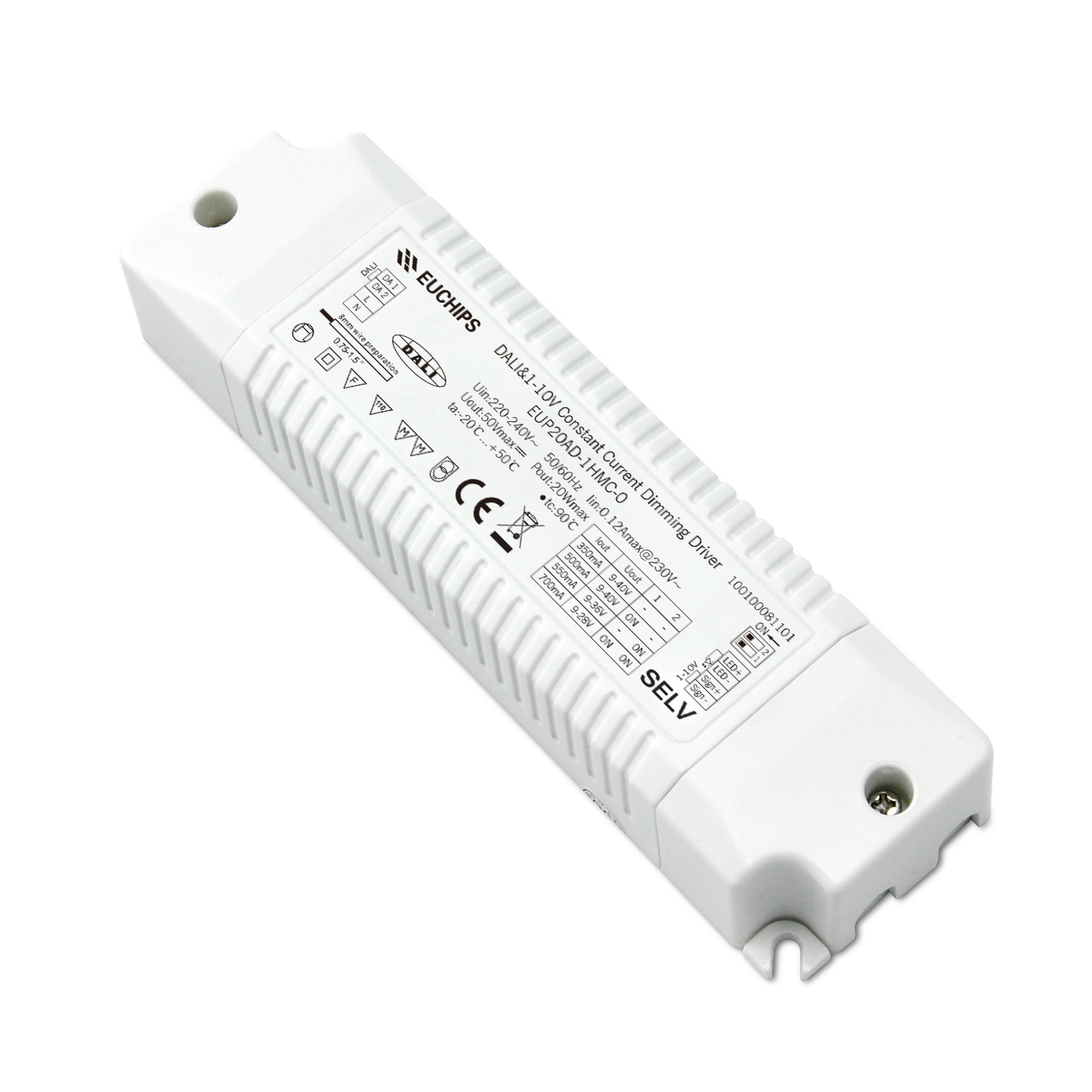

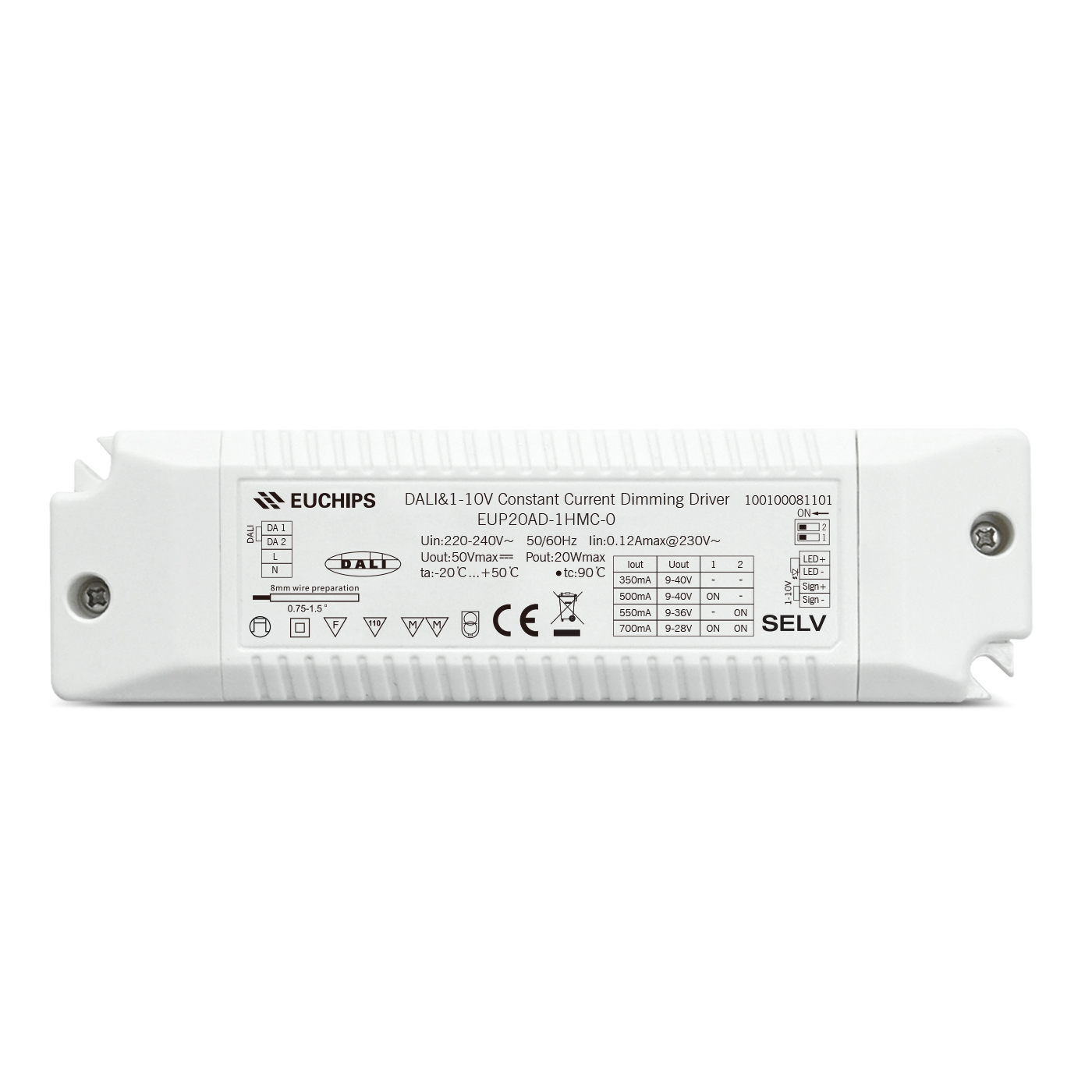

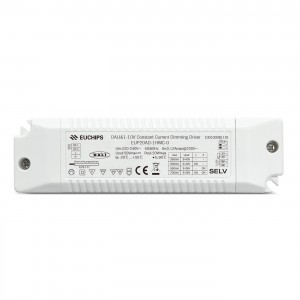

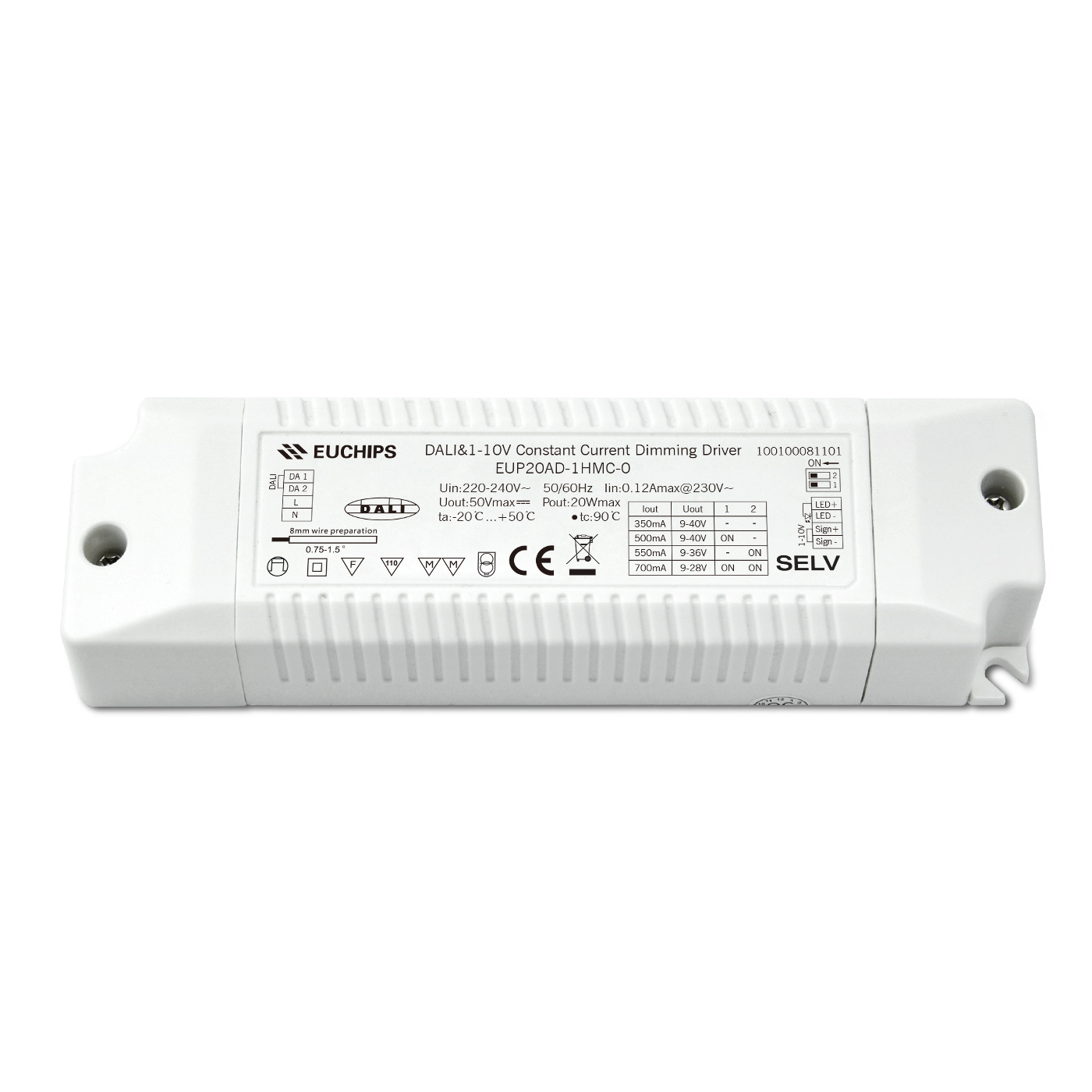

20W 350/500/550/700mA*1ch CC DALI&0-10V Driver EUP20AD-1HMC-0

Short Description:

  • Item No.: EUP20AD-1HMC-0
  • Input Voltage: 220-240
  • Output Current: 350/500/550/700mA
  • Output Voltage: 9-40
  • Output Power: 20
  • Dim Mode: DALI / 0-10v
  • G.W.: 130
  • Size: 150*43*29

Product Detail

Product Tags

20W 350/500/550/700mA DALI&0-10V Constant Current LED Driver EUP20AD-1HMC-0


1. Single channel output, output current level selectable by DIP S.W.

2. Support a variety of dimming mode(DALI/0-10V active signal/adjustable resistance/PWM/Touch DIM)

3. Wide range of input voltage 220VAC ~ 240VAC

4. High efficiency up to 83%

5. Built-in active PFC function

6. Dimming effect smooth, no flicker

7. Protections: Short circuit.

8 Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameter

Product Name 20W 350/500/550/700mA DALI&0-10V Constant Current LED Driver
Model EUP20AD-1HMC-0
Output Current 350mA 500mA 550mA 700mA
Voltage 9-40VDC 9-40VDC 9-36VDC 9-28VDC
Power 12W 20W 20W 20W
Current Accuracy ±5%
Maximum Output Voltage 50VDC
Output LF Current Ripple(< 120 Hz) <3%
Channels 1
Input Voltage 220– 240VAC
Frequency 50/60Hz
Power Factor(Type) ≥0.9@230V,full load
Efficiency(Typ) 83%@230V,full load
Current 0.11Amax@230VAC
Inrush Current 15A@230VAC
Protection Short circuit Close output,recovers automatically after fault removed
Function Dimming DALI/1-10V active signal/adjustable resistance/PWM/Touch DIM
Priority order DALI > (1-10V active signal/adjustable resistance/PWM) > Touch DIM
Others Dimension 150*43*29 mm L*W*H
G.W 130g
Working temp. -20℃ ~ 40
Relative humidity 20~90%RH
