20W 350~700mA*1ch DALI-2 CC Driver PUP20D-1WMC

Short Description:

  • Item No.: PUP20D-1WMC
  • Output Power: 20W

Product Detail

Product Tags

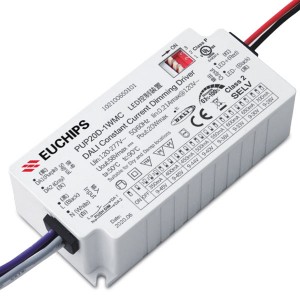

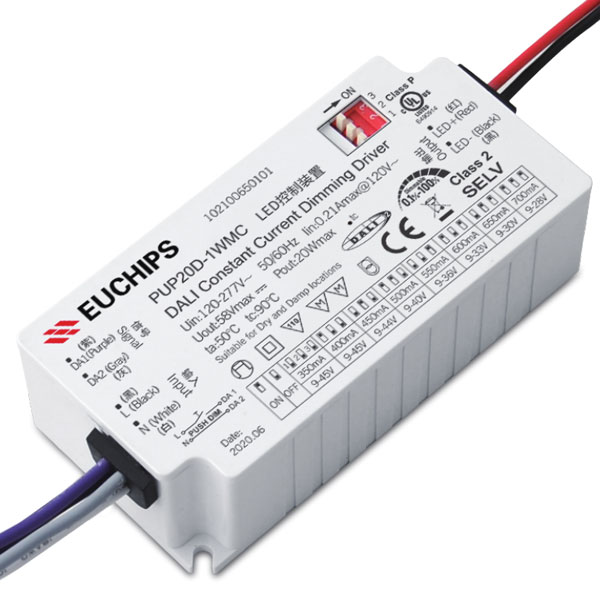

20W 350~700mA DALI Constant Current Driver PUP20D-1WMC

PUP20D-1WMC is a constant current output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.


1. Single channel output, output current level selectable by DIP S.W.

2. Support DALI dimming function, Touch DIM (Push DIM) function

3. Input voltage of 120VAC ~ 277VAC

4. Dimming range: 0.1-100%,Dimming effect smooth, no flicker

5. Protections: Short circuit, Over load,Over voltage

6. Suitable for indoor LED lighting application

Technical Paramters

Model PUP20D-1WMC
Input Voltage 120VAC-277VAC
Frequency 50/60Hz
Efficiency 85%@120VAC, Full load
PF 0.98@120VAC, Full load
THD(full load) <10%@120VAC, Full load
Current 0.21Amax@120VAC
Inrush Current Cold start,30A@120VAC
Standby Power <1W
Output Current/Voltage/Power 350mA/9-45V/15.75W
Channel 1
No load output voltage 58V Max
Frequency 1KHz Min PWM
Current Accuracy ±5%
LF current ripple(<120Hz) <3%
Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Close output, recovers automatically after fault removed
Safety&EMC Surge L-N:0.5KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMC Eission EN50515,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)
Others Dimming type DALI/Touch DIM (Push DIM)
Dimming range 0.1%-100% Dimming to off
Dimension 88*43*26.5mm(L*W*H)
Pack Information Net weight: 105g±5%/PCS; 50PCS/Carton; 5.75kg±5%/Carton; Carton Size: 234x222x194mm(L*W*H)
IP rating IP20
Working temp. -20℃~50℃
tc 90℃
Relative humidity 20~90% RH
Lifetime 50,000h@tc:85℃
Material PC
Switch cycle >25,000 times
