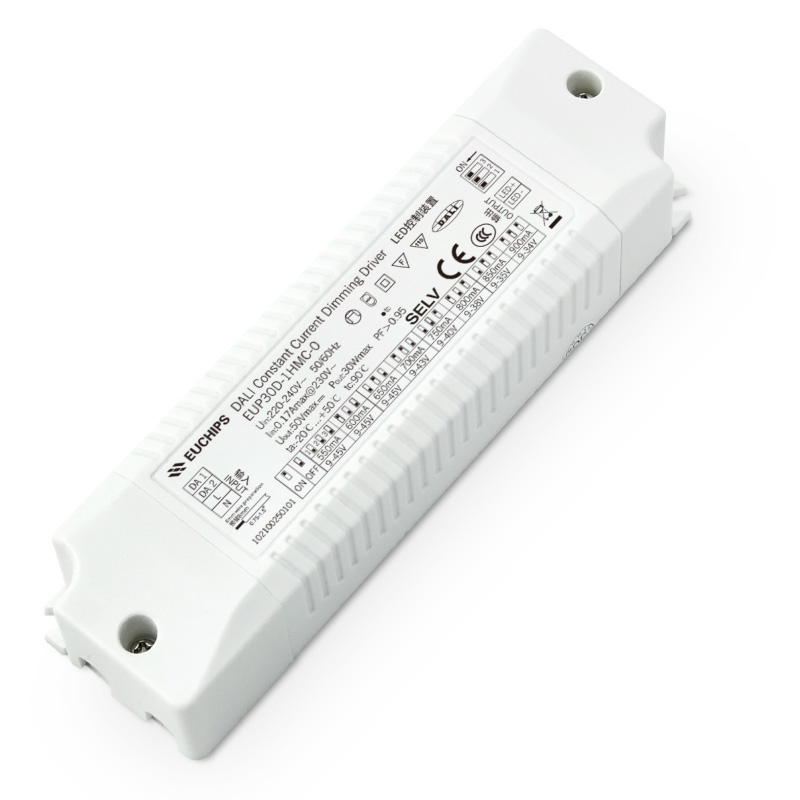

30W 550~900mA*1ch CC DALI Driver EUP30D-1HMC-0
30W 550/600/650/700/750/800/850/900mA*1ch Constant Current DALI Driver EUP30D-1HMC-0
EUP30D-1HMC-0 is a 30W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP30D-1HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386
3. Support Touch DIM function
4. High efficiency up to 87%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protection: short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel lights, and so on
Technical Parameter
| Model | EUP30D-1HMC-0 | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.17Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,28A(twidth=30us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
550mA/9-45VDC/24.75W 600mA/9-45VDC/27W 650mA/9-45VDC/29.25W 700mA/9-43VDC/30.1W 750mA/9-40VDC/30W 800mA/9-38VDC/30.4W 850mA/9-35VDC/29.75W 900mA/9-34VDC/30.6W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 50Vdc | ||
| Function | Dimming Mode | DALI/Touch DIM | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | ||
| Safety&EMC | Surge | L-N:500V | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:80℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 155g±5%/PCS; 50PCS/Carton; 8.25kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*42.5*28.5mm(L*W*H) | ||
