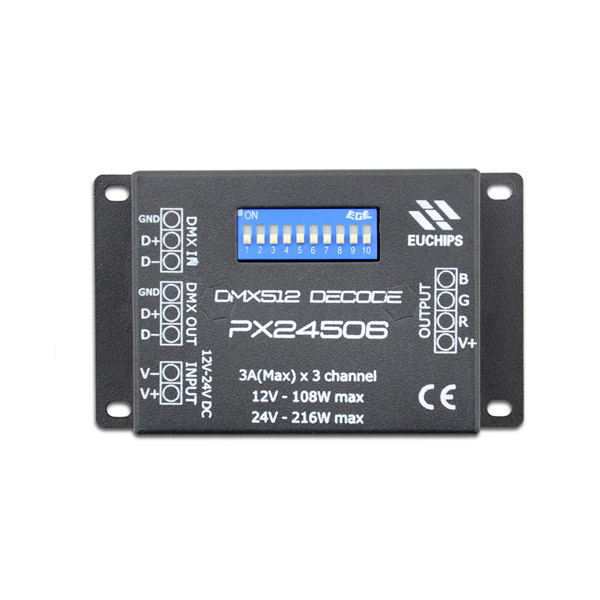

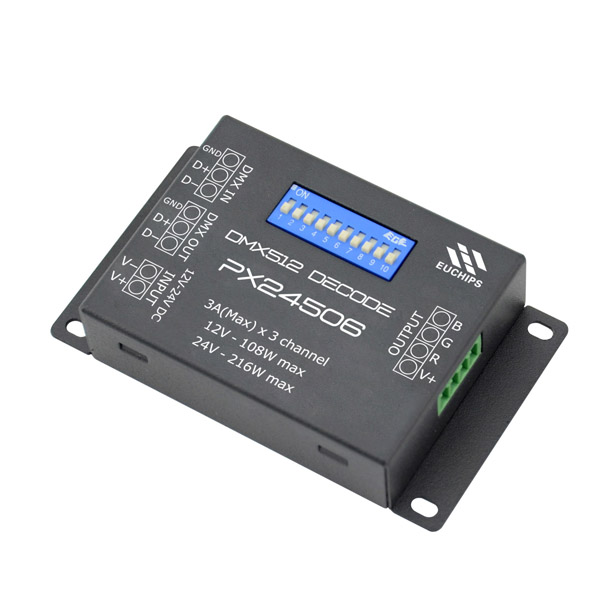

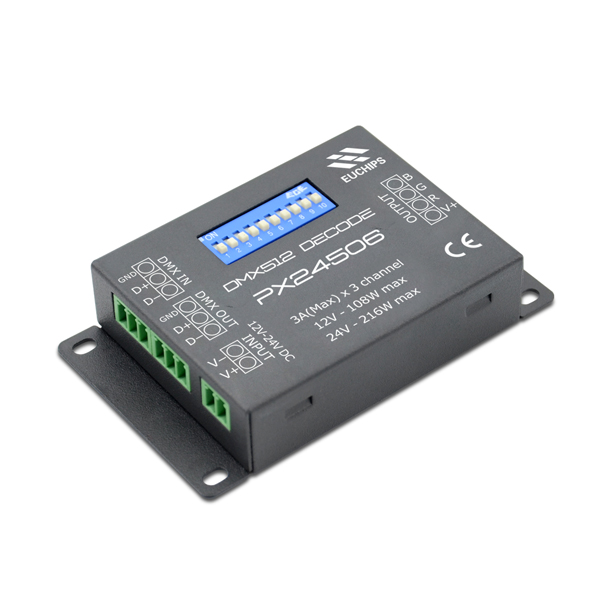

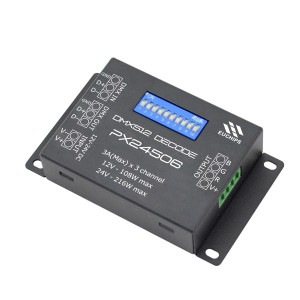

3A*3ch 108~216W 12-24VDC Connector DIP Switch Constant Voltage DMX Decoder PX24506

Short Description:

Item No.: PX24506
Input Voltage: 12-24
Output Current: 3A*3CH
Output Voltage: 12-24
Output Power: 108-216
Dim Mode: DMX512/1990
G.W.: 141
Size: 86*51*18

Send email to us Download as PDF Download Spec.

Product Detail

Product Tags

3A*3ch 108~216W 12-24VDC Connector DIP Switch Constant Voltage DMX Decoder PX24506

Summarize

Welcome to use PX series DMX512 decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512/1990 digital signal widely used in international to the analog control signal. 1~3 channels output for option and each channel able to achieve 256 gradations of controling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features

1. Meets DMX512/1990

2. 256-level brightness,full-color control

3. With 3 channels output and Max.3A/CH output

4. With control system,can express perfect effect

5. With the light color selected mechanism, and be able to control the light with 1~3 colors

6. Can set the DMX address freely

7. Can be custom-made

Technical Parameter

Product Name	Constant Voltage LED RGB DMX decoder
Item	PX24506
Decode Channels	3
Input Signal	DMX-512/1990 digital signal
Output Signal	can drive 3A(Each CH.)
Power Supply	DC 12~24V
Power Dissipation	<1W
Power Output	<216W(24V);<108W(12V)
Operating Temperature	0~50℃
Size	86(mm)51(mm)17.8(mm)
Weight	136g
