40W 350/500/700/1050mA CC 1-10V Driver

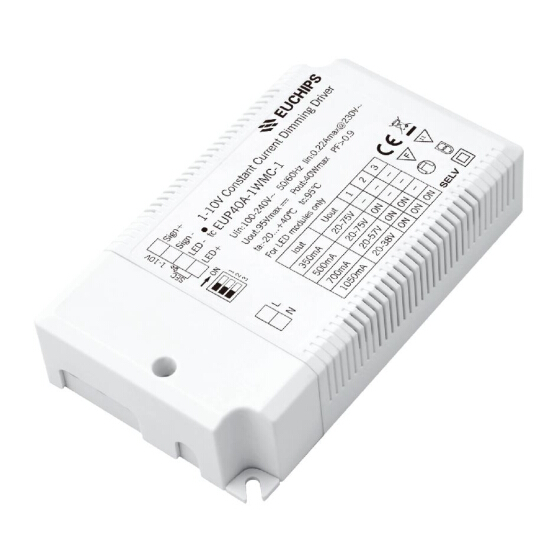

40W 350/500/700/1050mA 1-10V LED Constant Current Dimmable Driver EUP40A-1WMC-1
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
3. Wide input voltage of 100VAC ~ 240VAC
4. High efficiency up to 86%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Over load
9. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameter
| Model | EUP40A-1WMC-1 | ||||
| Output
|
Current |
350mA |
500mA |
550mA |
700mA |
| Voltage |
20-75VDC |
20-75VDC |
20-72VDC |
3-57VDC |
|
| Power |
26.25W |
37.5W |
39.6W |
39.9W |
|
| Current |
700mA |
850mA |
900mA |
1050mA |
|
| Voltage |
3-57VDC |
3-47VDC |
3-44VDC |
20-38VDC |
|
| Power |
39.9W |
39.9W |
39.6W |
39.9W |
|
| Current Accuracy | ±3% | ||||
| Maximum Output Voltage | 95VDC | ||||
| Output LF current ripple(< 120 Hz) | ＜3% | ||||
| Channels | 1 | ||||
| Input | Voltage | 100– 240VAC | |||
| Frequency | 50/60Hz | ||||
| Power factor | ≥0.9@230VAC,full load | ||||
| Efficiency | 86%@230VAC,full load | ||||
| Current | 0.22Amax@230VAC | ||||
| Inrush Current | 20A@230VAC | ||||
| Protection | Over Load | Above 110%-150% of rated power，constant voltage limit | |||
| Function | Dimming | 1-10V active signal, adjustable resistance, PWM | |||
| Others | Dimension | 137*82*31 mm（L*W*H） | |||
| G.W | 245g | ||||
| Working temp. | -20℃ ~ 40℃ | ||||
| Relative humidity | 20~90% RH | ||||
