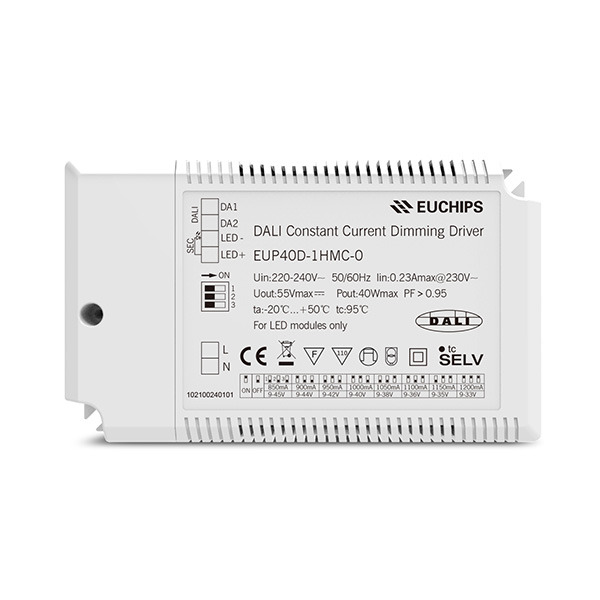

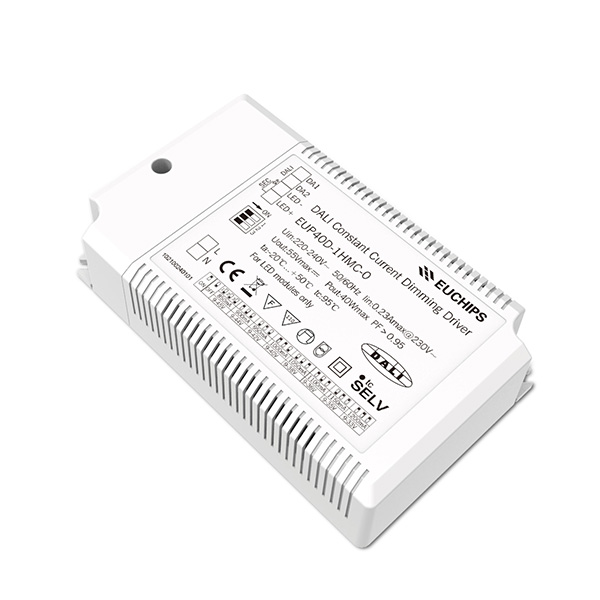

40W 850~1200mA*1ch CC DALI Driver EUP40D-1HMC-0
40W 850/900/950/1000/1050/1100/1150/1200mA Constant Current DALI Driver EUP40D-1HMC-0
EUP40D-1HMC-0 is a constant output mode LED driver. The output current can be easily set via DIP switch, EUP40D-1HMC-0 can be connected to DALI master or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386 ·Support Touch-DIM function
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 88%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP40D-1HMC-0 | ||||
| Output | Current | 850mA | 900mA | 950mA | 1000mA |
| Voltage | 9-45VDC | 9-44VDC | 9-42VDC | 9-40VDC | |
| Power | 38.25W | 39.6W | 39.9W | 40W | |
| Current | 1050mA | 1100mA | 1150mA | 1200mA | |
| Voltage | 9-38VDC | 9-36VDC | 9-35VDC | 9-33VDC | |
| Power | 39.9W | 39.6W | 49.25W | 39.6W | |
| Current accuracy | ±5% | ||||
| Maximum output voltage | 55VDC | ||||
| Output LF current ripple(< 120 Hz) | 3% | ||||
| Channels | 1 | ||||
| Input | Voltage | 220VAC – 240VAC | |||
| Frequency | 50/60Hz | ||||
| Power Factor | 0.95@230VAC, full load | ||||
| Efficiency | 88%@230VAC, full load | ||||
| THD | ＜10%@230VAC, full load | ||||
| Standby power | ＜0.5W | ||||
| Current | 0.23A max@230VAC | ||||
| Inrush current | Cold start,40A(twidth=12.8us measured at 50% Ipeak) @230VAC | ||||
| Protection | Short circuit | Close output, recovers automatically after fault removed | |||
| Over load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||||
| Over temperature | Shut down the output, recovers automatically when temp. back to normal. | ||||
| Function | Dimming | DALI/TouchDIM | |||
| Others | Dimension | 137 *82*31 mm（L*W*H） | |||
| G.W | 225g | ||||
| Working temp. | -20℃ ~ 50℃ | ||||
| Relative humidity | 20~90% RH | ||||
