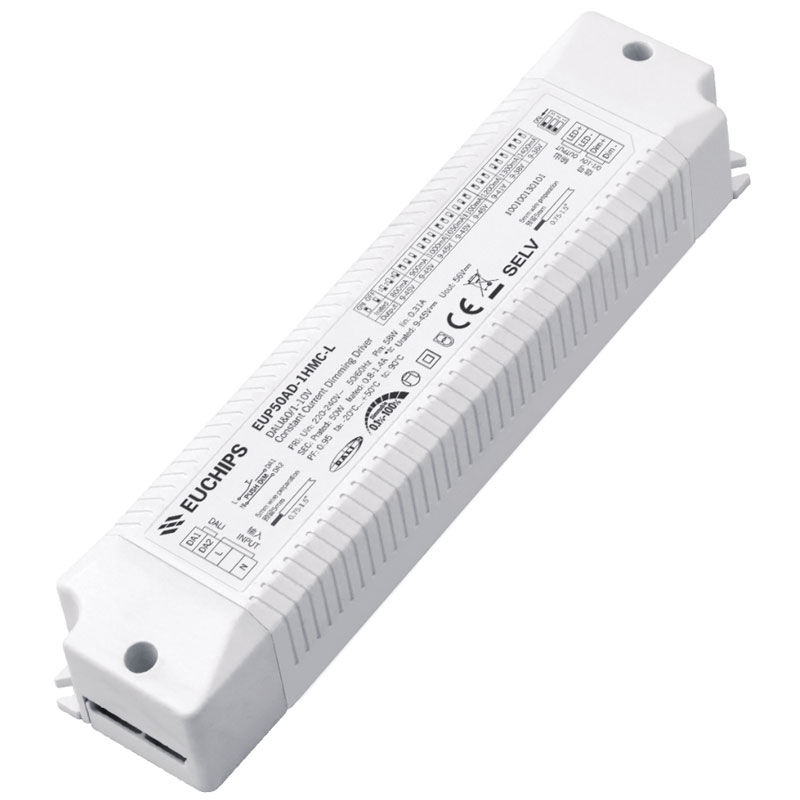

50W 800~1400mA DALI & 0-10V CC Driver EUP50AD-1HMC-L
50W 800~1400mA DALI & 0-10V CC Driver EUP50AD-1HMC-L
EUP50AD-1HMC-L is a constant Voltage output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
1. Single channel output
2. Support DALI-2 dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
3. Dimming range: 0.1-100%，Dimming effect smooth, no flicker
4. Protections: Short circuit, Over load
5. Suitable for indoor LED lighting application
Technical Parameters
| Model | EUP50AD-1HMC-L | |
| Input | Efficiency | ≥88%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Facto | ＞0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | 0.31Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start, <30A@230VAC | |
| Output | Current/Voltage/Power | 800mA/9-45V/36W 900mA/9-45V/40.5W 1000mA/9-45V/45W 1050mA/9-45V/47.25W 1100mA/9-45V/49.5W 1200mA/9-41V/49.2W 1300mA/9-38V/49.4W 1400mA/9-36V/50.4W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V DIM/PWM/Rx/DALI/Touch DIM (Push DIM) |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Connect the LED power positive output and LED negative output terminal, together |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety&EMC | Surge | L-N>1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN6154 | |
| Others | Working Temp., Humidity | -20℃~50℃, 20-50%RH |
| Storage Temp., Humidity | -40℃~85℃, 5-70%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | |
| Dimension | 185*42.5*28.5mm(L*W*H) | |
