6A*1ch 12-24VDC RJ45 Constant Voltage DMX Decoder PX24600

Short Description:

  • Item No.: PX24600
  • Input Voltage: 12-24
  • Output Current: 6A*1CH
  • Output Voltage: 12-24
  • Output Power: 72-144
  • Dim Mode: DMX512/1990
  • G.W.: 245
  • Size: 177*41.5*33.5

Product Detail

Product Tags

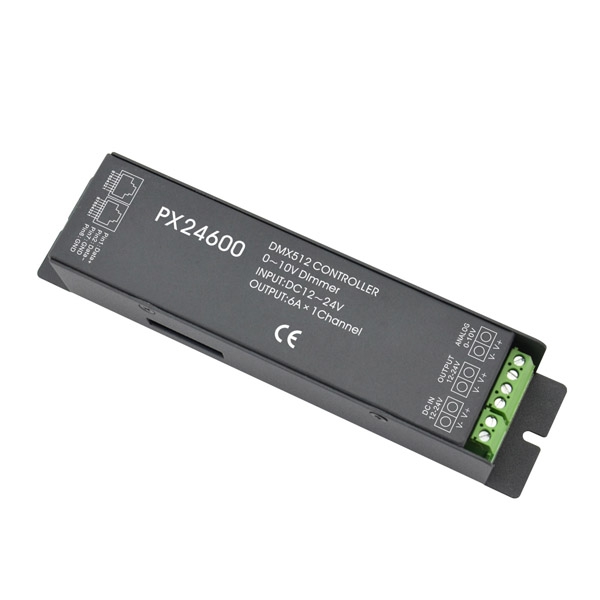

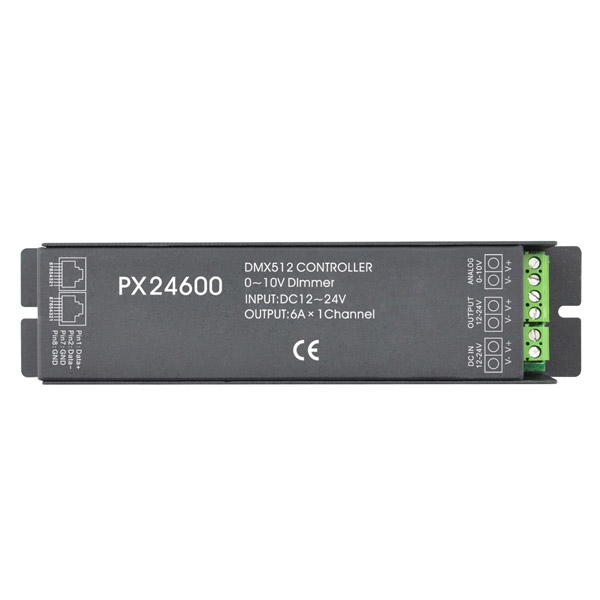

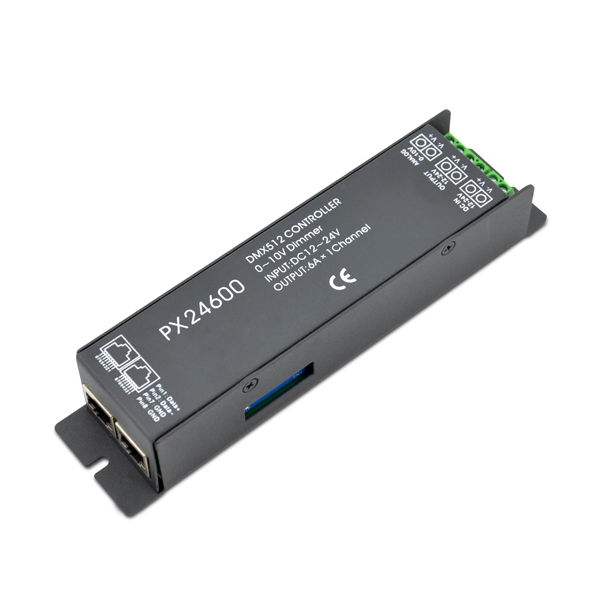

6A*1ch 12-24VDC RJ45 Constant Voltage DMX Decoder PX24600


Thank you for using PX series DMX512 decoder.With advanced micro-computer control technology,PX series convert the widely used DMX512/1990 signal to analog signal.Support DMX dimming function(prior) and 0-10V analog signal dimmer.

1. Meets DMX512/1990
2. 1 output CH.,can drive 6A
3. With control system,can express perfect effect
4. Can set the DMX address freely
5. Modularizing, can be combined with LED module neatly
6. Can be custom-made

Technical Parameter


Product Name Constant Voltage DMX Decoder
Item PX24600
Decode Channels 1 Channel
Input Signal DMX-512/1990 digital signal
Output Signal 0~24V, can drive 6A
Power Supply DC12~24V
Power Dissipation <1W
Power Output <144W
Operating Tempeture 0~70℃
Size L177(mm)*W41.5(mm)*H33.5(mm),can be custom-made
Packing size 180(mm)*43(mm)*38(mm)
Net Weight 245.5g
Gross weight 263g
