0-10V CV Dimmers

Dimming Signal
CC/CV
Input Voltage
Output Voltage
Output Current
Output Power
Output Channel
Application Area
Product Category
Certification
Download CSV Display as Poster
  • 12-24VDC 15A*1ch CV 0-10V Dimmer DIM151A-DIN

    12-24VDC 15A*1ch CV 0-10V Dimmer DIM151A-DIN

    12- 24V DC 1 Channel Constant Voltage Dimmer DIM151A-DIN Feature · Support 0-10V/1-10V Active dimming. · Support Touch DIM function. · Support minimum brightness up-regulation function. · Support dimmer curve selection function. · More than kinds of functions can be selected by switch please take the switch function tables as reference. · Add hysteresis treatment, strengthen the anti-interference. · Add fade effect, dimming smoother. · Support short circuit, over current protection and alarm ...
  • 12-24VDC 10A*1ch CV 0-10V Dimmer DIM-S1L10V-0

    12-24VDC 10A*1ch CV 0-10V Dimmer DIM-S1L10V-0

    12V 24V 10A 0-10V LED Constant Voltage Dimmer DIM-S1L10V-0 feature 1.?Support a variety of analog dimming signal; 2. Support the short circuit, over-current protection and alarm function; 3.?Support minimum brightness up-regulation function; 4. Support dimmer curve selection function; 5.?More than kinds of functions can be selected by switch,please take the switch function tables as reference; 6.F unction default setting is: 0-10V, 0V 100% output?Log Dimming Curve, Mini brightness no up-...

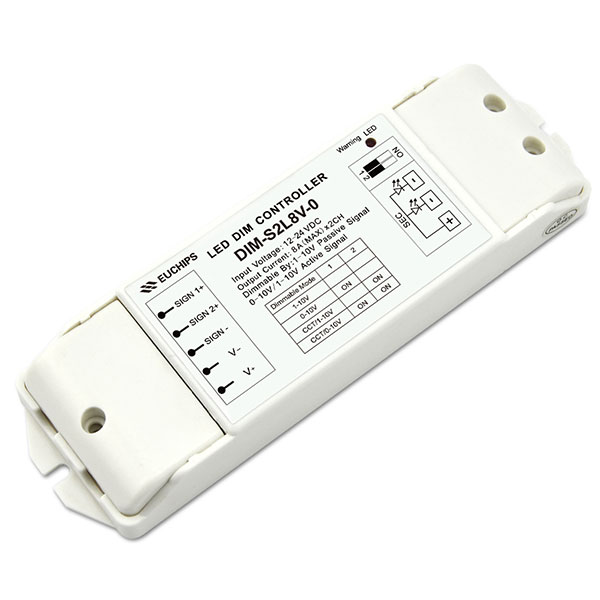

  • 12-24VDC 8A*2ch CV 0-10V Dimmer DIM-S2L8V-0

    12-24VDC 8A*2ch CV 0-10V Dimmer DIM-S2L8V-0

    12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0 Feature 1. Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM) 2. Support dimming mode selection 3. Support the short circuit, over current protection and alarm function 4. Logarithmic dimming curve 5. Built-in CCT adjust mode, the user can adjust color temperature without changing the output power 6. For adjusting the brightness/ color temperature of LED strip Technical Parameter Product Name...
  • 12-24VDC 5A*3ch CV 0-10V Dimmer DIM116

    12-24VDC 5A*3ch CV 0-10V Dimmer DIM116

    12V 24VDC 3 Channels Constant Voltage Dimmer DIM116 Feature 1. Analog Signal driver, receive DC0-10V dim signal. 2. RGB three channels output, Max.5A per channel. 3.?It is applicable to various LED modules Technical Parameter   Product Name 12V 24VDC 3 Channels Constant Voltage Dimmer Item DIM116 Input voltage DC12-24V Input & output channel 3 channel, Max.5A per channel Output power 12V≒180W; 24V≒360W Size 165(L)X39(W)X26(H) mm Weight 260g
  • 12-24VDC 15A*1ch CV 1-10V Dimmer DIM119

    12-24VDC 15A*1ch CV 1-10V Dimmer DIM119

    12-24VDC 1-10V Constant Voltage Dimmer DIM119 Feature 1. Single channel constant voltage output. 2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM) 3. Dimming range from 0.1-100%. 4. 100% output when no dimming signal input. 5. PWM digital dimming, no later LED color rendering index 6. Suitable for indoor LED lighting application. 7. Compatible with various of interfaces of the branded lighting control systems. Technical Parameter Model DIM119 Output Voltage ...
  • 12-24DC 15A*1ch CV 0-10V Dimmer Multidim-15V-0

    12-24DC 15A*1ch CV 0-10V Dimmer Multidim-15V-0

    12V 24V DC 1 Channel Constant Voltage Dimmable Driver Multidim-15V-0 This is a multi-functional LED dimmer, dimming mode, dimming curve, min brightness level all can be selected by dip switch.   Product Name: 12V 24V DC 1 Channel Constant Voltage Dimmable Driver ModelㄩMultidim-15V-0 Input Voltageㄩ DC12/24V Loadable current 15A Material ABS+PC Output Powerㄩ 180W/12V, 360W/24V Working Tempㄩ -35⊥ㄜ55⊥ Packing Sizeㄩ L167℅W52℅H24(mm) Protection(with warring led) Short-cir...
