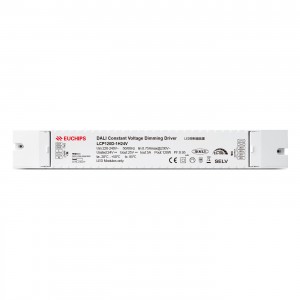

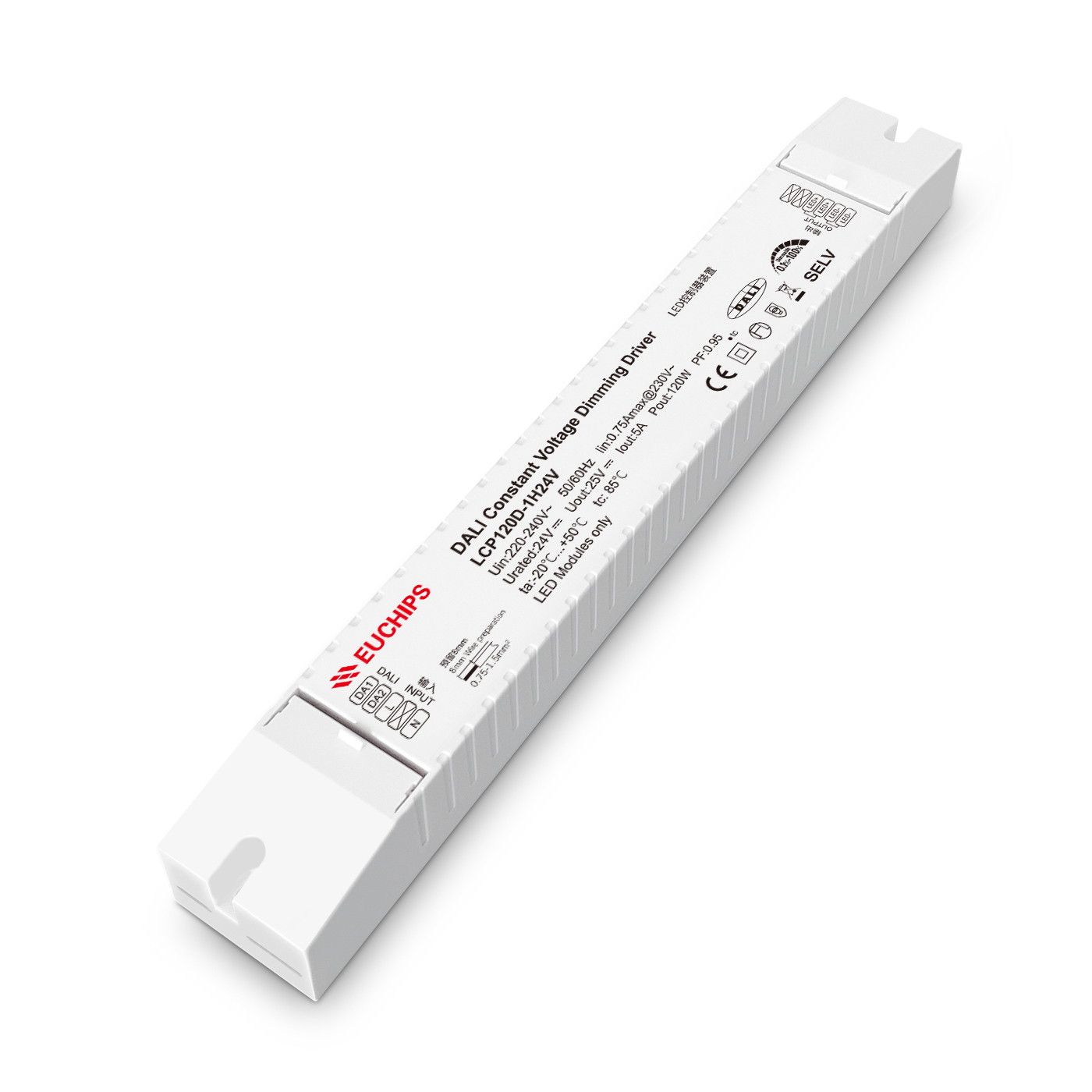

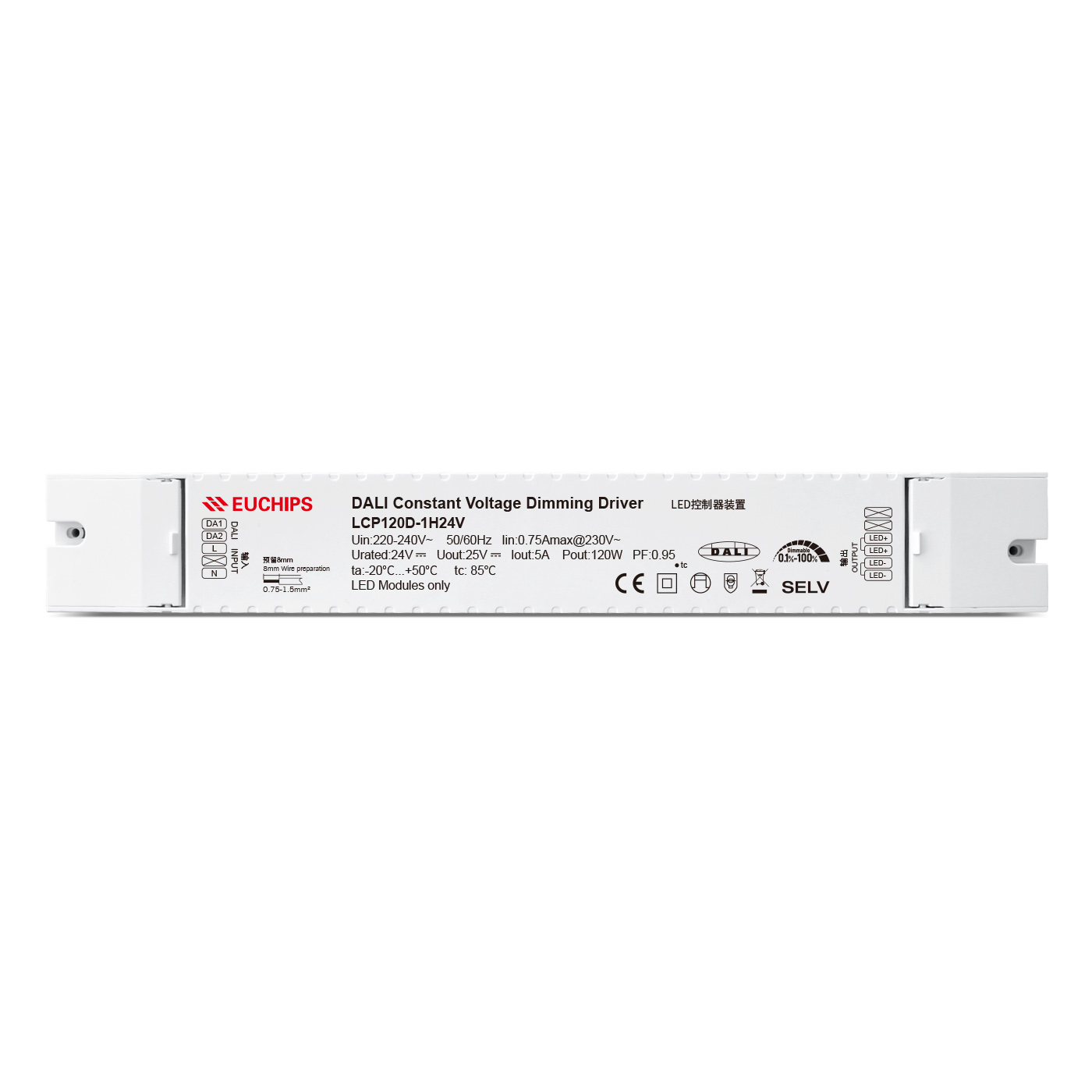

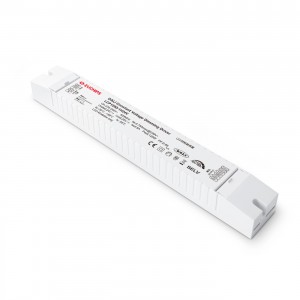

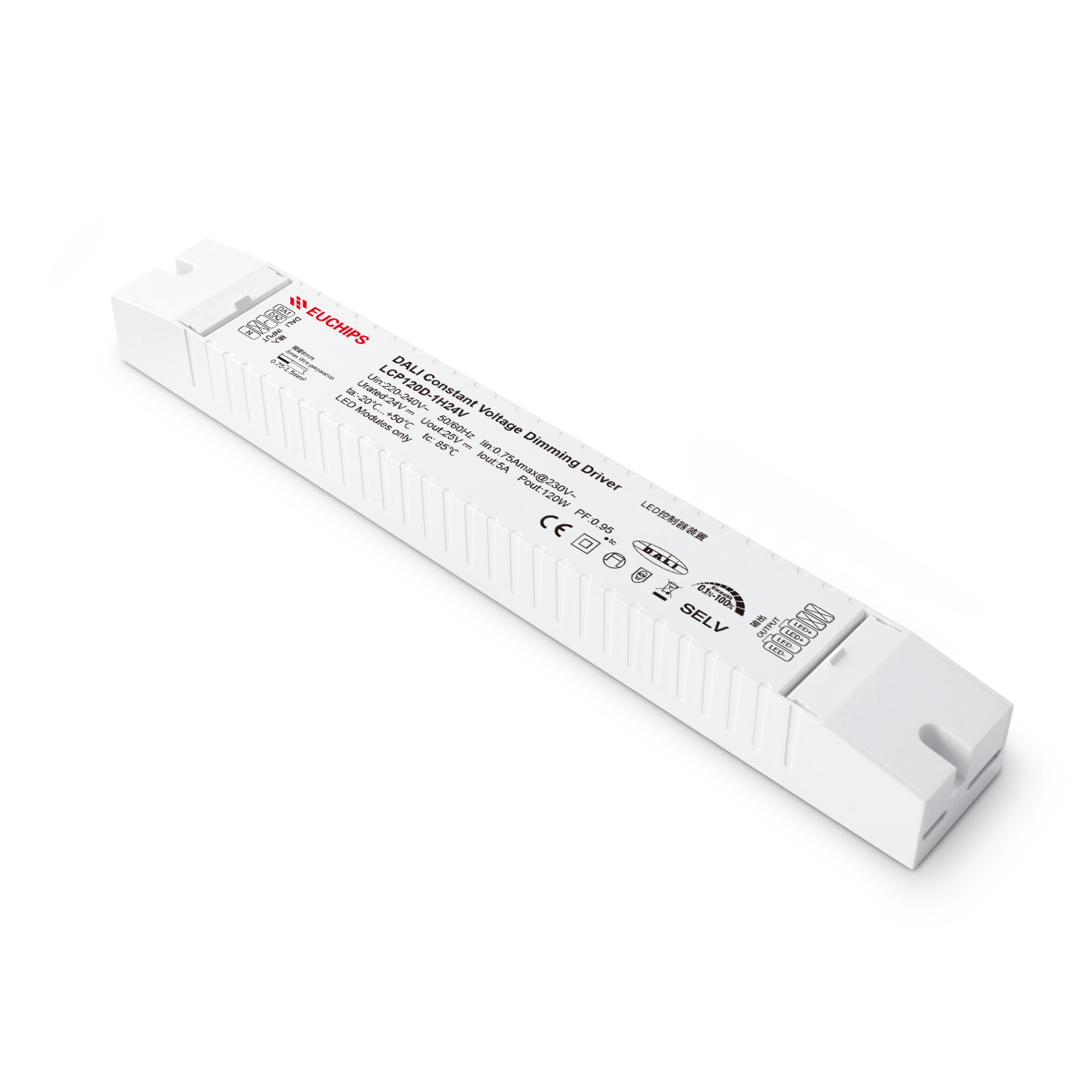

120W 24VDC DALI CV Driver LCP120D-1H24V
120W 24VDC DALI CV Driver LCP120D-1H24V
LCP120D-1H24V is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,provides dimming function DALI and Touch DIM to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,5A Max
· Meet DALI protocol IEC 62386
· High input voltage of 220VAC ~ 240VAC
· Dimming effect smooth, no flicker
· Over load protection; over voltage protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LCP120D-1H24V | |
|
Input |
Efficiency | ≥92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.75Amax@230VAC | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Inrush Current(max) | Cold start,50A@230VAC 100us | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 5A/24VDC/120W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI / Touch DIM |
| Dimming Range | 0.3%-100% Dimming to off | |
| Dimming curve | Logarithm | |
| Flicker | No | |
| Protection | Over voltage | No output, self-recovery after troubleshooting |
| Over load | No output, self-recovery after troubleshooting | |
| Short Circuit | No output, self-recovery after troubleshooting | |
| Safety& EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/5mA；Signal-O/P: 1500VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ @230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 230g±5%/PCS; 50PCS/Carton;12.2kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
