  • 75W 24V 2ch 0/1-10V CV Driver LCP75A-2W24V

    75W 24V 2ch 0/1-10V CV Driver LCP75A-2W24V

    LCP75A-2W24V is a constant voltage mode output LED driver, adjustment of brightness and colour temperature，Dimming Range 0.1%-100%。 Product Features ·Double channel constant voltage output,3.125A Max ·High input voltage of 120VAC ~ 277VAC ·Dimming effect smooth, no flicker ·Over load protection; short circuit protection ·IP20, suitable for indoor LED lighting application Technical Parameters Model LCP75A-2W24V Input Efficiency 92%@230VAC,Full load Voltage 120VAC-277VAC Frequency Ra...
    detail
  • 150W 24V 2ch 0/1-10V CV Driver LCP150A-2W24V

    150W 24V 2ch 0/1-10V CV Driver LCP150A-2W24V

    150W 24V 2ch 0/1-10V CV Driver LCP150A-2W24V LCP150A-2W24V is a constant voltage mode output LED driver, adjustment of brightness and colour temperature，Dimming Range 0.1%-100%. Features · Double channel constant voltage output,6.25A Max · High input voltage of 120VAC ~ 277VAC · Dimming effect smooth, no flicker · Over load protection; short circuit protection · IP20, suitable for indoor LED lighting application Technical Parameters Model LCP150A-2W24V Input Efficiency 92%@230VAC,Full l...
    detail

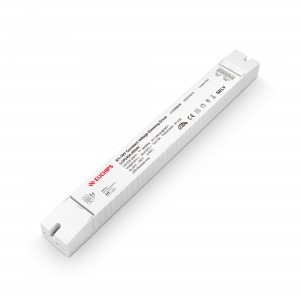

  • 240W 24VDC 2ch 0/1-10V CV Driver LCP240A-2H24V

    240W 24VDC 2ch 0/1-10V CV Driver LCP240A-2H24V

     240W 24VDC 2ch 0/1-10V CV Driver LCP240A-2H24V Features · Dual channel constant voltage output. Single channel output current 10A, with the total load across multiple channels not exceeding 10A. · Short circuit, overload, overcurrent, V0 level flame-retardant shell · Dimming range 0.5% -100% dimming, smooth dimming, flicker free · Color temperature range 2700K-6500K · Lifespan of 50000 hours, 5-year warranty · Customizable dimming curve · Long strip design for easy installation in narrow spa...
    detail
  • 150W 12VDC 2ch DALI&0/1-10V CV Driver LCP150AD-2H12V-S8

    150W 12VDC 2ch DALI&0/1-10V CV Driver LCP150AD-2H12V-S8

    150W 12VDC DALI&0/1-10V CV Driver LCP150AD-2H12V-S8 LCP150AD-2H12V-S8 is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance,and PUSH DIM) to achieve a smooth dimming effect. The color temperature can be adjusted through the dip switch, and there are 8 color temperatures to choose from. Color temperature 2700K/3000K/3500K/4000K/4500K/5000K/5500K...
    detail
  • 240W 24VDC 2ch DALI&0/1-10V CV Driver LCP240AD-2H24V-S8

    240W 24VDC 2ch DALI&0/1-10V CV Driver LCP240AD-2H24V-S8

    240W 24VDC 2ch DALI&0/1-10V CV Driver LCP240AD-2H24V-S8 LCP240AD-2H24V-S8 is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance,and Touch DIM) to achieve a smooth dimming effect. The color temperature can be adjusted through the dip switch, and there are 8 color temperatures to choose from. Color temperature 2700K/3000K/3500K/4000K/4500K/5000K/...
    detail
  • 192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B

    192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B

    192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B MUP192ADS-2W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming. Features · Dual channel constant voltage output, the maximum output current per channel is 4A · Wide input voltage of 120VAC ~ 277VAC · Dimming range of 0.1-100%, and dimming effect smooth, Flicker free · 100% output when no dimming signal input, can be used as no...
    detail
  • 120W 24VDC 2ch Triac & 0-10V CV Driver MUP120AT-2W24V-BW

    120W 24VDC 2ch Triac & 0-10V CV Driver MUP120AT-2W24V-BW

    120W 24VDC 2ch Triac & 0-10V CV Driver MUP120AT-2W24V-BW Features · Dual channel constant voltage output, per channel 2.5A Max · Input Voltage Range 120-277Vac · Support 0/1-10V, Potentiometer, PWM, Triac/ELV Dimming · TRIAC and ELV dimming at 120 Vac only · 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free · 100% output when no dimming signal input, can be used as normal power supply · Protection: Overload; short circuit; Overcurrent · Class 2 Output · Safety accor...
    detail
  • 192W 24VDC 2ch Triac & 0-10V CV Driver MUP192AT-2W24V-B

    192W 24VDC 2ch Triac & 0-10V CV Driver MUP192AT-2W24V-B

    192W 24VDC 2ch Triac & 0-10V CV Driver MUP192AT-2W24V-B MUP192AT-2W24V-B is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect. Features · 2 channel constant voltage output, Output Current 4A per channel · Wide input voltage of 120VAC ~ 277VAC · Dimming effect smooth, Flicker free · 100% output when no dimming signal input, can be used as normal power supply · Protection: Over load; s...
    detail
