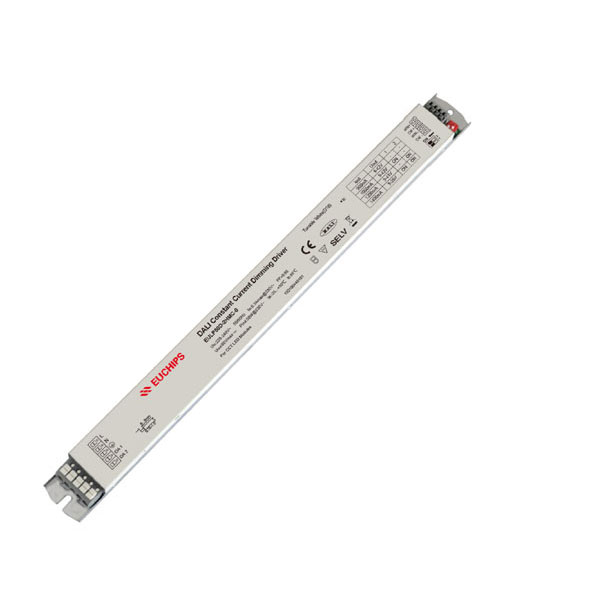

50W 900~1400mA*2ch DALI CC Driver DT8 EULP50D-2HMC-0

Short Description:

  • Item No.: EULP50D-2HMC-0
  • Input Voltage: 200-240VAC
  • Output Current: 900/1050/1200/1400mA*2ch
  • Output Power: 50W
  • Dim Mode: DALI
  • G.W.: 305g
  • Size: 360*30*21mm

Product Detail

Product Tags

DALI Tunable White Constant Current Diver EULP50D-2HMC-0

EULP50D-2HMC-0 is a LED controller that provides two channels outputs. The user can select the total output current via DIP switch.Itsupports DALI DT8 standard protocol and adjustment of brightness and colour temperature.

Features

1. Meet DALI Protocol IEC 62386 DT8

2. SELV. Full protective plastic housing

3. High efficiency up to 86 %

4. Built-in active PFC function

5. Dimming effect smooth, no flicker

6. Protections: Short circuit, over load, over temperature

7. The positive output of the two channels is common

8. Supports adjustment of brightness and colour temperature.

Technical Parameters



Model EULP50D-2HMC-0
Output Current 900mA 1050mA 1200mA 1400mA
Voltage 9-42VDC 9-42VDC 9-41VDC 9-35VDC
Power 40.5W 47.25W 49.2W 49W
Current Accuracy ±5%
No Load Output Voltage 60VDC
Output LF current ripple (<120Hz) <3%
Channels 2
Input Voltage 220– 240VAC
Frequency 50/60Hz
PowerFactor(Type) ≥0.95@230VAC,full load
Efficiency 88%@230VAC,full load
THD <10%@230VAC,full load
Standby power <0.5W
Current 0.3Amax@230VAC
Inrush Current Cold start,18A(t width=14us measured at 50% I peak )@230VAC
Protection Short circuit Close output,recovers automatically after fault removed
Over load Hiccup, when the output power exceeds the rated power of 100 ~ 120%,then,recovers automatically after fault removed
Over temperature Shut down the output, recovers automatically when temp. back to normal.
Function Dimming mode DALI
Dimming range 1%~100%
Others Dimension 360*30*21 mm(L*W*H)
G.W. 305g
Working temp -20℃ ~ 50℃
Relative humidity 20~90% RH
