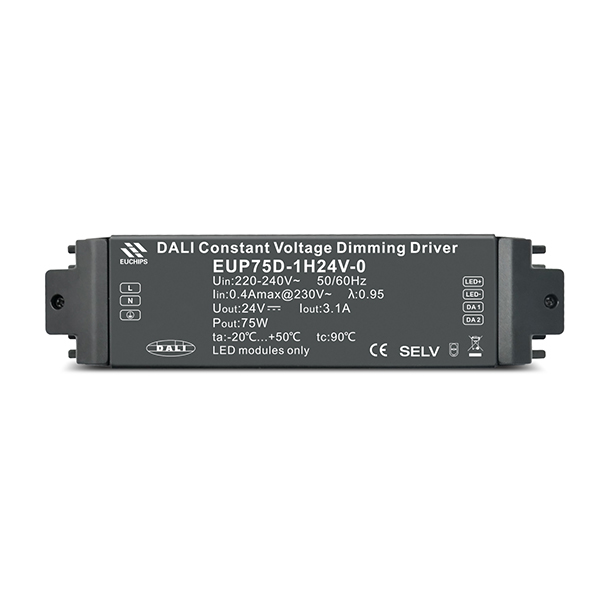

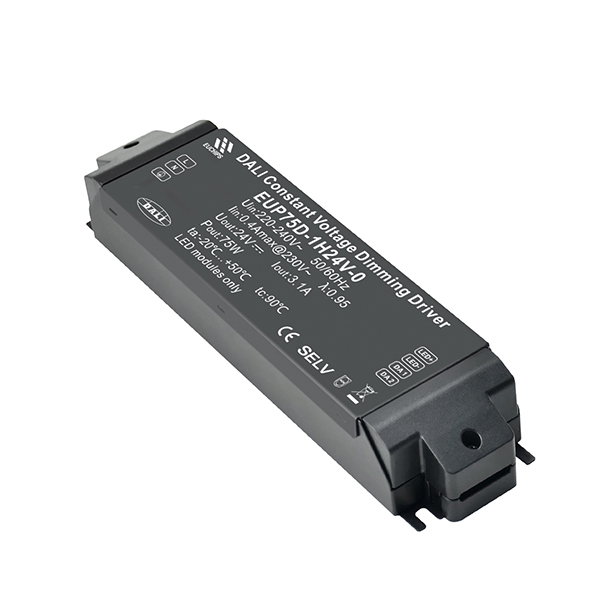

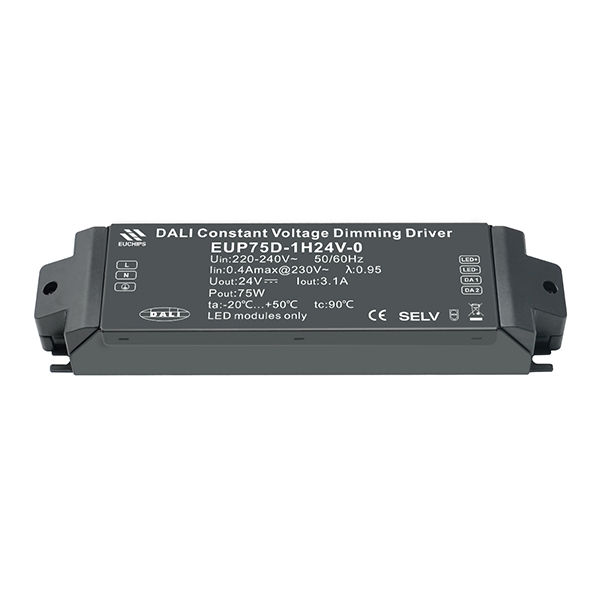

75W 24VDC DALI CV Driver EUP75D-1H24V-0

Short Description:

  • Item No.: EUP75D-1H24V-0
  • Input Voltage: 220~240VAC
  • Output Current: 3.1A*1CH
  • Output Voltage: 24VDC
  • Output Power: 75W
  • Dim Mode: Touch DIM
  • G.W.: 460g
  • Size: 213*54*33mm

Product Detail

Product Tags

75W 24VDC DALI Constant Voltage Dimmable Driver EUP75D-1H24V-0

Feature

1. Single channel constant voltage, 3.1A Max
2. Meet DALI Protocol IEC62386
3. Support Touch DIM function
4. High input voltage of 220VAC ~ 240VAC
5. Over load protection; over voltage protection; short circuit; over temperature
6. IP20, suitable for indoor LED lighting application

Technical Parameter



Product Name 75W 24VDC DALI Constant Voltage Dimmable Driver
Model EUP75D-1H24V-0
Output DC Voltage 24VDC
Current 3.1A
Rated Power 74.4W
Voltage Tolerance ±3%
R & N(max) 240mVp-p
Input Voltage Range 220-240VAC
Frequency Range 50/60Hz
Efficiency >85 %@230VAC, full load
Power Factor ≥0.95@230V, full load
Current 0.4A@230VAC
Inrush current Cold start, 45A@230VAC
Protection Short circuit Hiccup mode, recovers after fault condition is removed
Over load Hiccup mode, recovers after fault condition is removed
Over voltage Hiccup mode, recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature
Function Dimming DALI Dimming/Touch Dim
Others Dimension 213 (L) *54(W)*33(H)mm
G.W.(g) 460g
Packing 244(L)*223(W)*199(H) mm;20Pcs/10.5kg/Carton
Working Temp -20℃ ~ 50℃
Working Temp 20~90%RH
