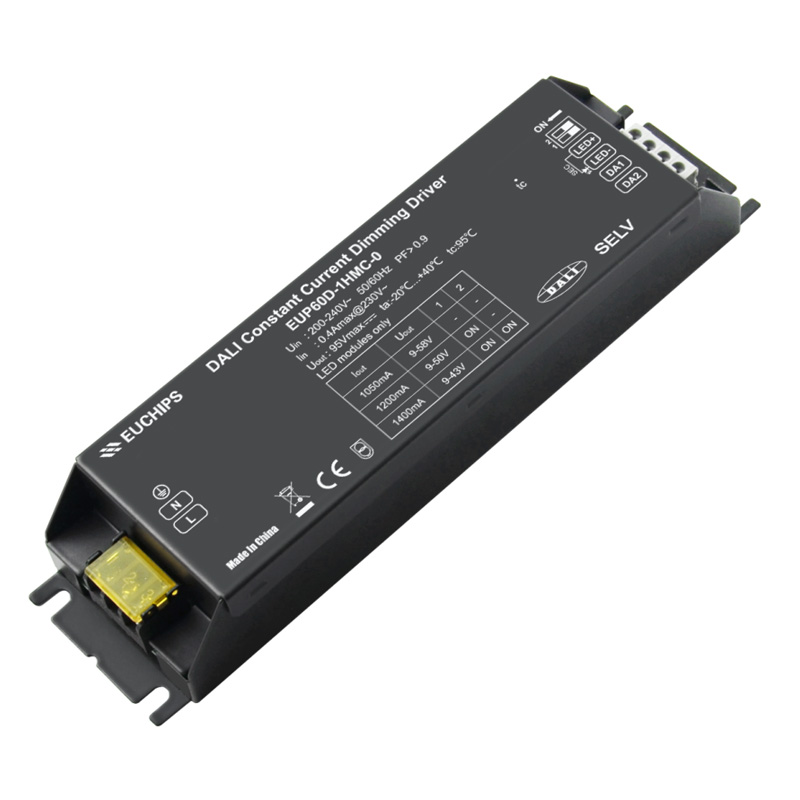

60W 1050/1200/1400mA*1ch DALI CC Driver EUP60D-1HMC-0

Short Description:

  • Item No.: EUP60D-1HMC-0
  • Input Voltage: 200– 240VAC
  • Output Current: 1050/1200/1400mA*1CH
  • Output Power: 60W
  • Dim Mode: DALI /Touch DIM(Push DIM)
  • Size: 203*54*33mm

Product Detail

Product Tags

60W 1050/1200/1400mA Constant Current DALI Driver EUP60D-1HMC-0



Feature

1. Signal channel output, output current level selected by DIP S.W.

2. Meet DALI Protocol IEC 62386.

3. Support Touch DIM dimming.

4. THD≤15%.

5. Low ripple current, no flicker.

6. High efficiency up to 86%.

7. Built-in active PFC function.

8. Over voltage protection, short circuit protection, over power protection.

9. Suitable for indoor LED lighting application, such as down light, panel light, and so on.

Technical Parameter

Model EUP60D-1HMC-0
Input Efficiency 86%@230VAC, Full load
Voltage 200VAC-240VAC
Frequency 50/60Hz
Power Factor ≥0.9@230VAC,Full load
THD(full load ≤15%@230VAC, Full load
AC Current(max) 0.4Amax@230VAC
Inrush Current(max) Cold start,27A(twidth=5.4us measured at 50% Ipeak)@230VAC
Output Current(mA)/Voltage (VDC)/
Power(W)
1050mA/9-58VDC/60.9W1200mA/9-50VDC/60W1400mA/9-43VDC/60.2W
Ripple Current <4%
Channel 1
Current Tolerance ±3%
No load output voltage 95V Max
Function Dimming Mode DALI /Touch DIM(Push DIM)
Protection Short circuit Close output,recovers automatically after fault removed
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Over Temperature Close output,recovers automatically after fault removed
Others Working Temp. -20℃~40℃
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 95℃
Material Metal
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 410g±5%/PCS; 30PCS/Carton; 12.8kg±5%/Carton; Carton Size: 383*222*217mm(L*W*H)
Dimension 203*54*33mm(L*W*H)
