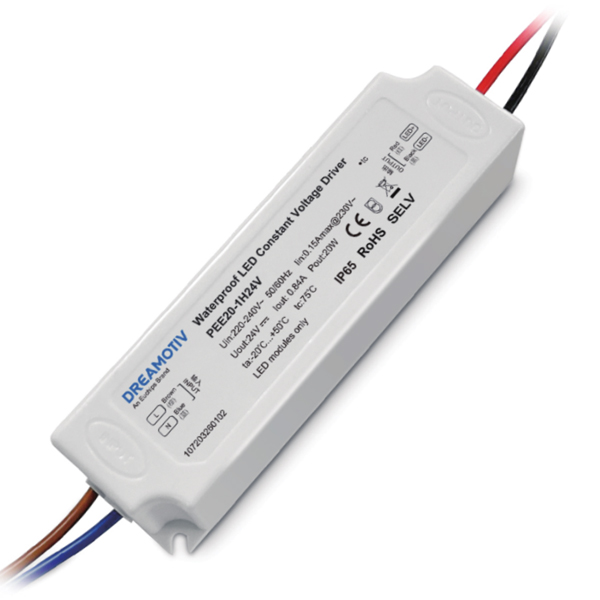

20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1H24V

Short Description:

Item No.: PEE20-1H24V
Output Power: 20W

Product Detail

Product Tags

20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1H24V

Features

·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty

Technical Parameters

Model	PEE20-1H24V
Input	Efficiency	≥86%@230VAC, Full load
	Voltage	220-240VAC
	Frequency	50/60Hz
	Current	0.15Amax@230VAC
	PF	>0.95
	THD	<10%
	No load power	≤0.5W
	Inrush Current	Cold start,15.4A@230VAC 220us
	Turn On Delay Time	≤0.5s, at230Vac (When the light begins to shine)
Output	Current/Voltage/Power	0.84A/24VDC/20W
	Channel	1
	Voltage Accuracy	±5%
	Ripple Voitage	<3%
	No load output voltage	25.2VDC max
Protection	Over load	Reduce current burp protection, troubleshoot normal output
	Short circuit	Short circuit No output, troubleshooting output normal
	Over Current	Voltage drop, troubleshooting output normal
Safety & EMC	Lightning Surge	L-N:2kV
	Withstand Voltage	I/P-O/P:3000VAC/1min/<5mA
	Safety Standards	IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
	Insulation Resisance	5MΩ
Others	Working Temp.	-20℃~+50℃
	Storage Temp.; Humidity	-40℃~85℃ 20-90%RH
	Tc	75℃
	Material	PC
	IP Rating	IP65
	Lifetime	50 000h@tc:50℃
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing Size	Net weight: 153g±5%/PCS; 60PCS/Carton; 9.5kg±5%/Carton; Carton Size: 282230140mm(LWH)
	Dimension	1183526mm(LWH)
