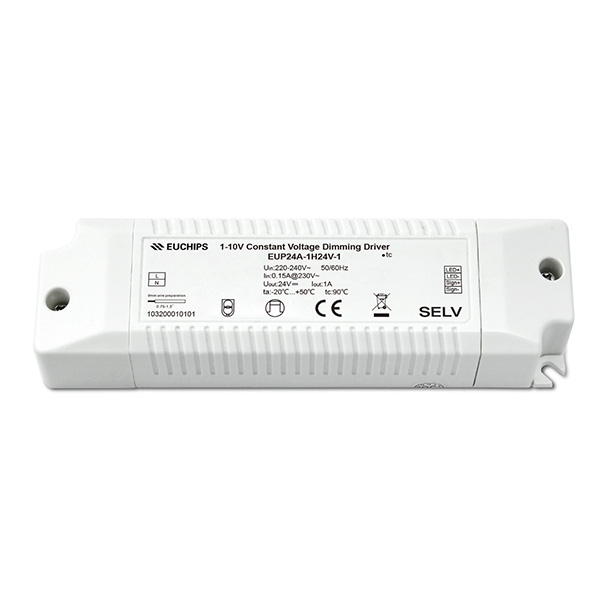

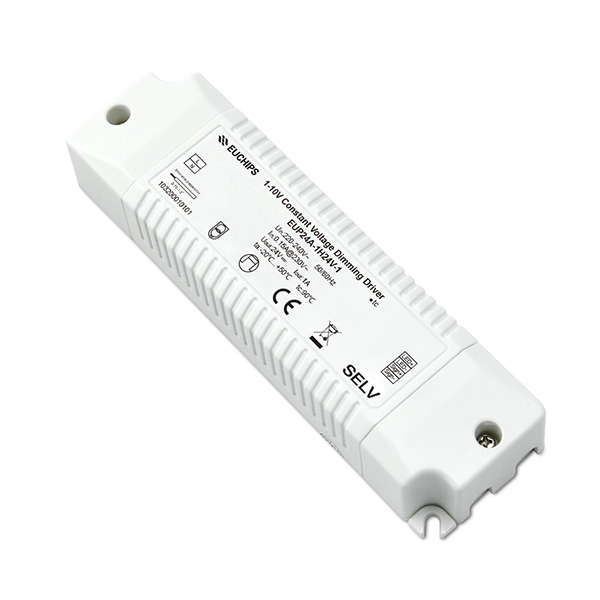

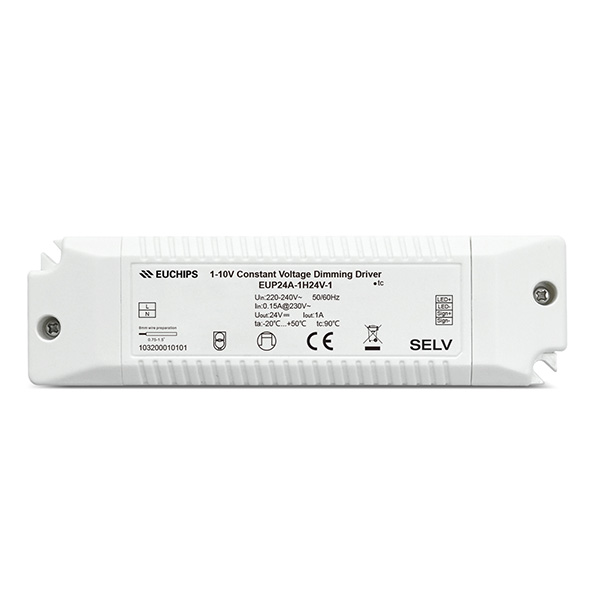

24W 24VDC 0/1-10V CV Driver EUP24A-1H24V-1

Short Description:

  • Item No.: EUP24A-1H24V-1
  • Input Voltage: 220-240
  • Output Current: 1A*1CH
  • Output Voltage: 24
  • Output Power: 24
  • Dim Mode: 1-10V/PWM
  • G.W.: 150
  • Size: 150*43*29

Product Detail

Product Tags

24W 1A*1ch 1-10V Constant Voltage LED Driver EUP24A-1H24V-1

EUP24A-1H24V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal (1 -10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.


1. Single channel constant voltage output, 1A Max

2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance and PWM signal)

3. Dimming range of 0-100%, and dimming effect smooth, no flicker

4. 100% output when no dimming signal input, can be used as normal power supply

5. Over load protection; over temperature protection, short circuit protection

6. IP20, suitable for indoor LED lighting

Technical Parameter

Model EUP24A-1H24V-1
Output Channels 1
Voltage 24VDC
Current 1A
Power 24W
Voltage Accuracy ±3%
Input Voltage 220-240VAC
Frequency 50/60HZ
Efficiency >85 %@230VAC,full load
PF >0.95@230VAC,full load
THD <10 %@230VAC,full load
Current 0.15A@230VAC
Inrush Current Cold start,15A(twidth=40us measured at 50% Ipeak) @230VAC
Protections Over Temperature Close the output,automatically restore the normal temperature
Short Circuit Close output,recovers automatically after fault removed
Over Load Close output,recovers automatically after fault removed
Function Dimming Mode 1-10V active signal, adjustable resistance and PWM signal
Others Dimension 150*43*29mm
G.W. 150g
IP rating IP20
Working Temperature -20 ℃ ~ 50℃
Relative Humidity 20~90% RH
