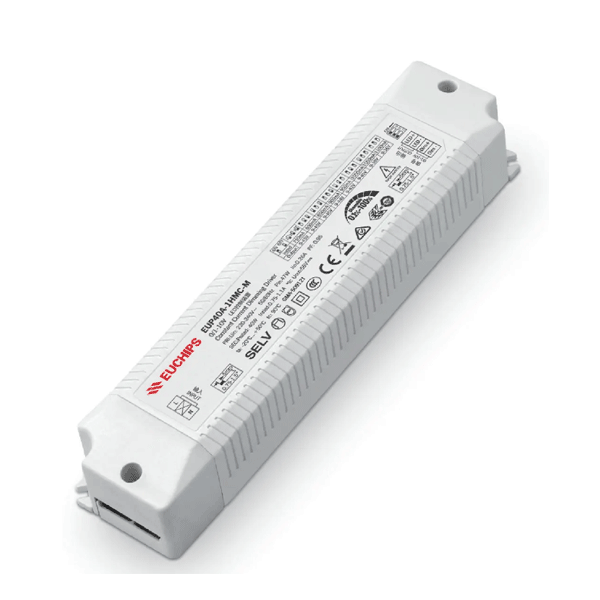

40W 750~1100mA*1ch 0/1-10V CC Driver EUP40A-1HMC-M
40W 750/800/850/900/950/1000/1050/1100mA 0-10V/1-10V Constant Current Driver
EUP40A-1HMC-M is a constant current output mode LED driver. Support 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
Single channel output, output current level selectable by DIP S.W.
Support 0/1-10V Dimming function
Dimming range: 0.1-100% Dimming effect smooth, no flicker
Protections: Short circuit, Over load, Over Voltage
Suitable for indoor LED lighting applicatio
Technical Paramaters
| Model | EUP40A-1HMC-M | |
| Input | Efficiency | 88%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby power | 0.5W | |
| AC Current(max) | 0.26Amax@230VAC | |
| Inrush Current(max) | Cold start,60A@230VAC | |
| Output | Current(mA)/Voltage (VDC)/Power(W) | 750mA/9-45V/33.75W 800mA/9-45V/36W850mA/9-45V/38.25W 900mA/9-44V/39.6W950mA/9-42V/39.9W 1000mA/9-40V/40W1050mA/9-38V/39.9W 1100mA/9-36V/39.6W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No-Load Voltage | 56VDC | |
| Voltage Range | 9-45VDC | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V/PWM/RX |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed. |
| Over Load | Hiccup, recovers after fault condition is removed. | |
| Over Voltage | Hiccup, recovers after fault condition is removed. | |
| Safety&EMC | Surge | L-N:1KV; |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3, EN6154 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
| Others | Working Temp. | -20°C~+50°C, 20-50%RH |
| Storage Temp., Humidity | -40℃~85℃, 5-70%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –mm(L*W*H) | |
| Dimension | 185*43*29mm(L*W*H) | |
