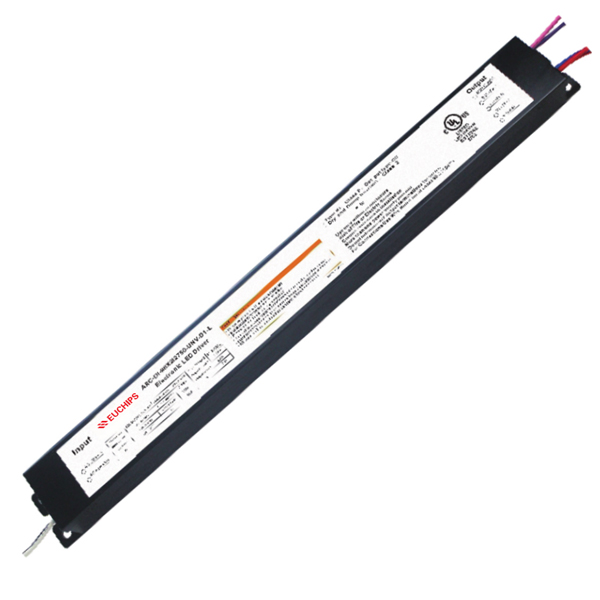

60-96W 0-10V CC Dimming Driver ARC DI 60-96 Wx2 L Series
60-96W 0-10V CC Dimming Driver ARC DI 60-96 Wx2 L Series
Features
· Supply Voltage 108-305Vac
· Great Surge Immunity 2.5k(ringwave)
· 50000Hour Life @ Tc=90℃
· 5Year Warranty@Tc<=90℃
· ±5% Output Current Accuracy
· 0-10V/DIP Dimmable
· UL Class P, Class 2
· Safety according to UL8750 & UL 1310
| Model No. | InputVoltage (VAC) | Input Current (A) |
PF |
Output Voltage (VDC) | MAX Output power (W) | MAXIout(mA) | Eff(Max) | Life at Tc 90℃(h) |
| ARC-DI-96X2-I3000-UNV-DI-L | 120-277 | 2.20(Max) |
0.90 |
24-32 | 96×2 | 3000 | 88% | 50000 |
| ARC-XX-AAx2-BBBB-CCC-XYZ-L | CCC | 0.44-2.20 |
0.90 |
24-50 | (27-96)×2AA×2 | (1200-3000)x2 AA×2 | 88% | 50000 |
Technical Parameters
| THD | <20%@70-100%load, refer to THD vs. Load curve |
| Inrush Current | 50A peak, 1.2ms duration, <0.25A2s@120Vac, Cold Start |
| Surge Protection | L-N 2.5KV L/N-PE 2.5KV The RING WAVE is IEC61000-4-12 |
| Leakage Current | 0.75mA max @277Vac 60Hz, UL8750 |
| Current Accuracy | ±5%Io |
| Ripple Current | Ip-p:8%Io max |
| Setup Time | 0.75s max |
| Short Circuit | Auto recovery. The output recovers when short is removed. |
| EMC | FCC Part 15 Class A |
| Operating Temperature | -20℃～+55℃ ；10%RH～100%RH |
| Storage Temperature | -40℃～+85℃； 5%RH～100%RH |
| MTBF | ≥320,000 hours, 75℃ case temperature (MIL-HDBK-217F) |
| Case Temperature | 90℃ max, marked in the Tc point of label |
