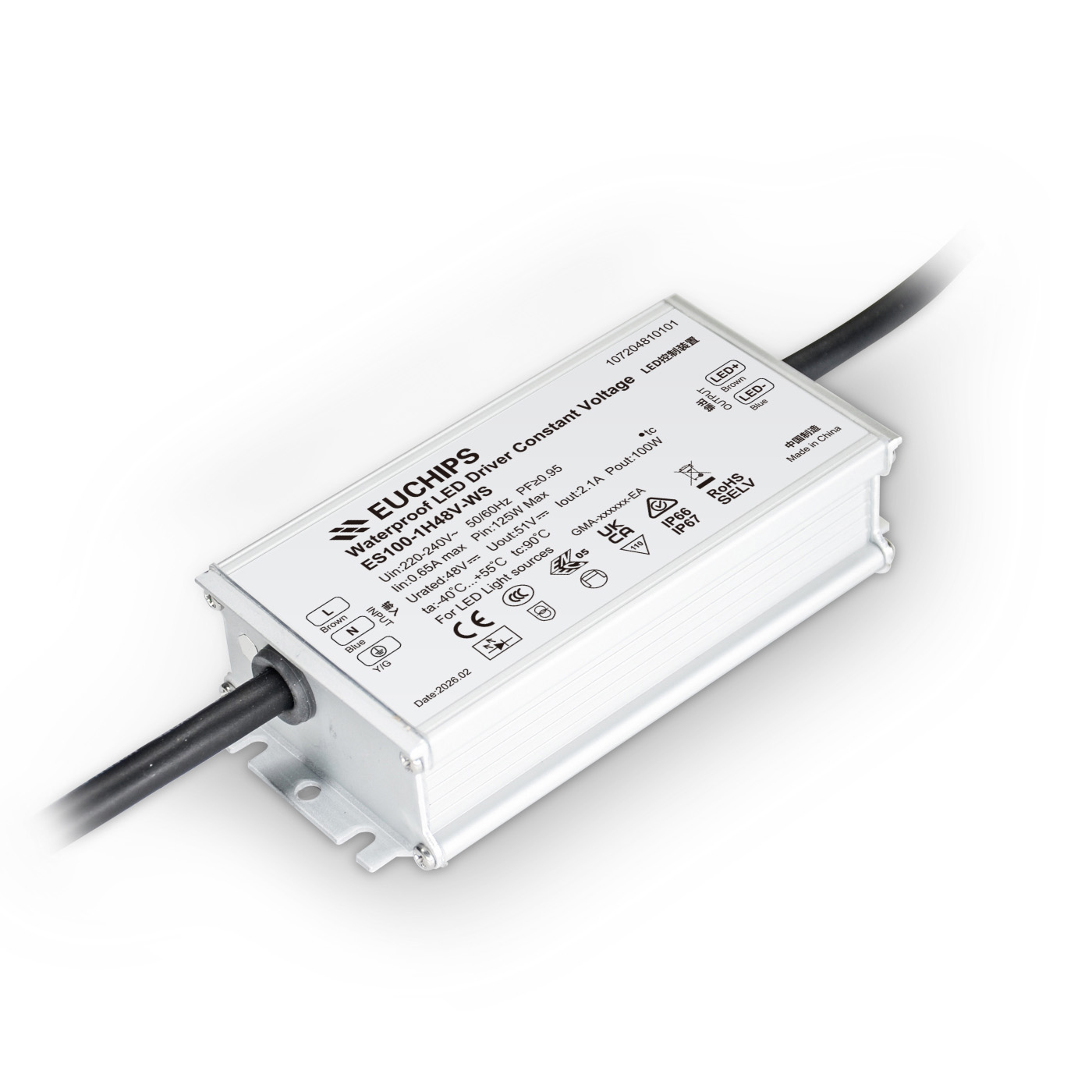

100W 48VDC Non-dimmable Waterproof CV Driver ES100-1H48V-WS

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

100W 48VDC Non-dimmable Waterproof CV Driver ES100-1H48V-WS

Product Feature

• Input voltage range: 176-305Vac.

• Isolated constant voltage design.

• Built-in active PFC function.

• No-Load Power < 0.5 W.

• SELV Output.

• All-around protection: IUVP, SCP, OLP, OVP, OTP.

• Input surge protection: Differential mode: 6kV, Common mode: 10kV.

• IP67 design for indoor and outdoor applications.

• Suitable for dry / damp / wet locations.

• 5-year warranty.

Application

Architectural lighting, Decorative lighting, Advertising light box.

Models

Model Number

Input Voltage Range

Max. Output

Power

Output

Voltage

Output Current Range

Efficiency

(Typ.)

THD

(Typ.)

ES100-1H48V-WS

176-305Vac

100W

48Vdc

0-2.10A

91%

0.98

10%

Note:
1. All specifications are measured at 25℃ ambient temperature, input voltage 220Vac, and the typical value tested by full load.

Technical Parameters

Parameter		Min.	Typ.	Max.	Remark
Input	Rated Input AC Voltage	-	220-240Vac	-
	Input AC Voltage Range	176Vac	-	305Vac	Reference derating curve
	Frequency Range	47Hz	50/60Hz	63Hz
	Input AC Current	-	-	0.65A	At 220Vac input and 100% load
	Input AC Power	-	-	125W	At 220Vac input and 100% load
	Leakage Current	-	-	0.70mA	IEC 60598-1; 240Vac/ 60Hz
	Inrush Current	-	-	70A	At 230Vac input and 100% load, 25°C Cold Start
	No-load Power	-	-	0.5W	At 230Vac input
	Power Factor	0.90	0.98	-	At 230Vac, 50-60Hz, 50%-100% load
	THD	-	10%	20%	At 230Vac, 50-60Hz, 50%-100% load
Output	Output Voltage Range	45.6V	48V	50.4V	±5%
	Open Circuit Voltage	-	-	50.4V
	Total Output Voltage Ripple(Pk-Avg)	-1%	-	+1%	At 100% load, 20 MHz BW
	Output Current Range	-	-	2.10A
	Efficiency	90%	91%	-	Measured at 100% load
	Startup Overshoot Voltage	-	-	5%	At 100% load
	Line Regulation	-1%	-	+1%	At 100% load
	Load Regulation	-3%	-	+3%	Input Voltage 230Vac, load changes from 70% to 100%.
	Turn-on Delay Time	-	-	1.0s	At 230Vac input and 100% load
	Dynamic Response deviation	-2.0V	-	+2.0V	R/S: 1 A/μs, 25% ~ 100% load.
	Dynamic Response settling time	-	-	10ms

Parameter		Min.	Typ.	Max.	Remark
Other Characteristics	Operating Case TemperatureFor safety (Tc)	-40℃	25℃	+90℃
	Operating Ambient TemperatureFor safety (Ta)	-40℃	25℃	+55℃	At 220-240VAC input
	Operating Case TemperatureFor warranty (Tc)	-40℃	25℃	+75℃	Humidity: 10% RH to 95% RH
	Storage Temperature (Ta)	-40℃	25℃	+85℃	Humidity: 5% RH to 95% RH
	Altitude	-65m	-	4000m
	Temperature Coefficient	-0.06%/℃	-	+0.06%/℃	Tc:0 ℃~90℃
	Under Voltage Protection	140VAC	170VAC	176VAC	Self-recovery
	Over load Protection	110%load	-	150%load	Self-recovery
	Over Temperature Protection	90℃	95℃	100℃	Drop current when OTP, and it can be self-recovery after the abnormality is removed.
	Short Circuit Protection	-	-	-	Self-recovery, short circuit without damage
	Lifetime (Tc≤75℃)	≥50,000 hours			At 220Vac,100% load, please refer to lifetime vs. case temperature curve
	MTBF	200, 000 hours			At 220Vac,80% load, Ta=25 ℃ (MIL-HDBK-217F)
	Warranty	5 years			Tc ≤ 75℃
	Net Weight	640g
	Dimension	132mm63mm33mm			L x W x H
