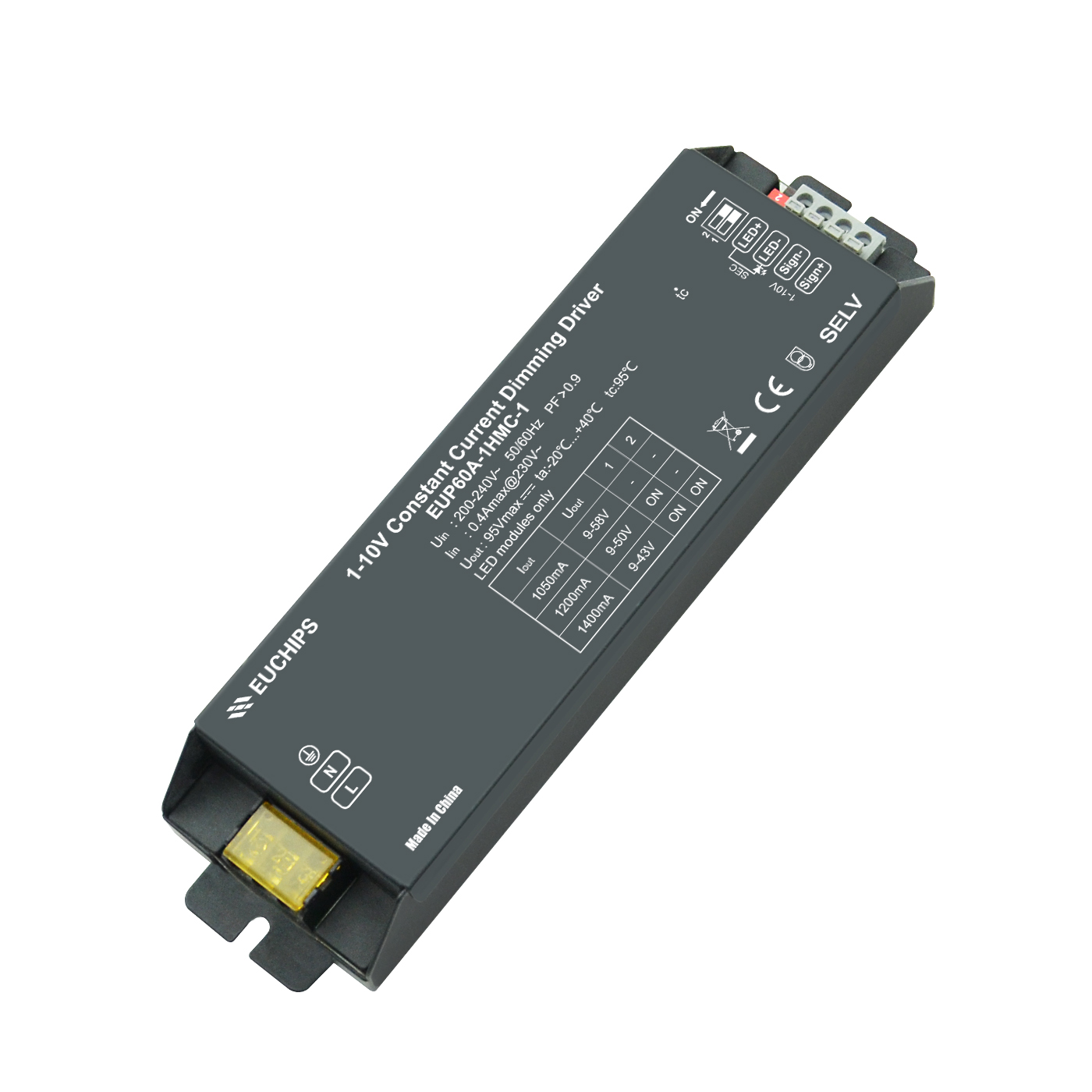

60W 1050/1200/1400mA*1ch 0/1-10V CC Driver EUP60A-1HMC-1

Short Description:

  • Item No.: EUP60A-1HMC-1
  • Input Voltage: 200-240
  • Output Current: 1050/1200/1400mA*1CH
  • Output Voltage: 9-58
  • Output Power: 60
  • Dim Mode: 1-10V /PWM
  • G.W.: 365
  • Size: 203.4*53.9*32.6

Product Detail

Product Tags

60W 1050/1200/1400mA constant current led driver dimmable 1-10V EUP60A-1HMC-1



Feature

1. Signal channel output, output current level selected by DIP S.W.

2. Support 3-in-1 dimming function(active signal,adjustable resistance, PWM)

3. THD≤15%

4. Low ripple current, no flicker.

5. High efficiency up to 86%.

6. Built-in active PFC function.

7. 100% output when no dimming signal input,can be used as normal power supply.

8. Over voltage protection,short circuit protection,over power protection.

9. Suitable for indoor LED lighting application,such as down light, panel light, and so on.

Technical Parameter





Product Name 60W 1050/1200/1400mA constant current led driver dimmable 1-10V
Model EUP60A-1HMC-0
Output Current 1050mA 1200mA 1400mA
Voltage 9-58VDC 9-50VDC 9-43VDC
Power 60.9W 60W 60.2W
Current Accuracy ±5%
Maximum Output Voltage 95VDC
Output LF Current Ripple(< 120 Hz) 4%
Channels 1
Input Voltage 200– 240VAC
Frequency 50/60Hz
Power Factor@230VAC,full load 0.9
THD@230VAC,full load 15%
Efficiency(Typ) 86%
Current 0.4Amax@230VAC
Inrush Current

40A@230VAC

Function Dimming 1-10V active signal, adjustable resistance, PWM
Others Dimension 203.4*53.9*32.6 mmL*W*H
G.W 365g
Working temp. -20 ~ 40
Relative humidity 20~90% RH
