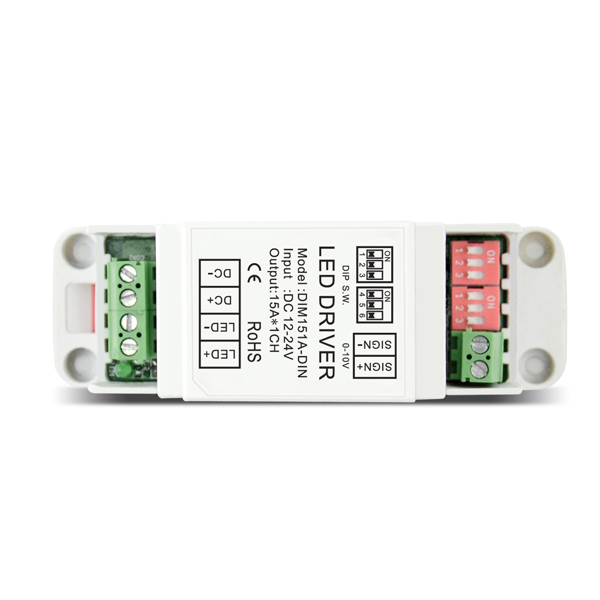

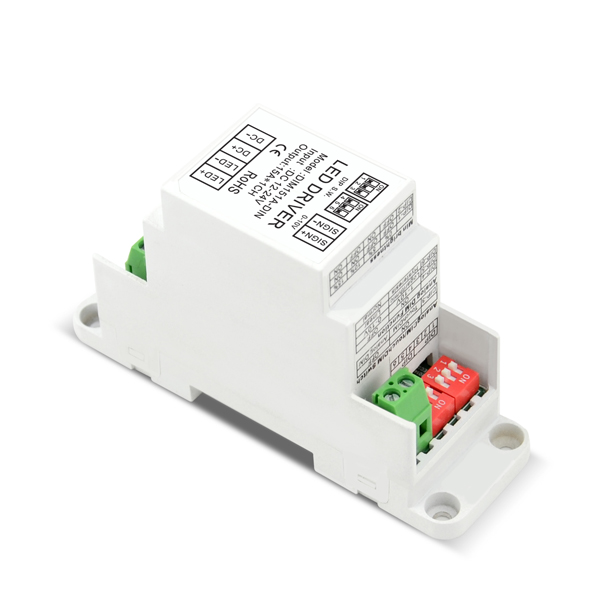

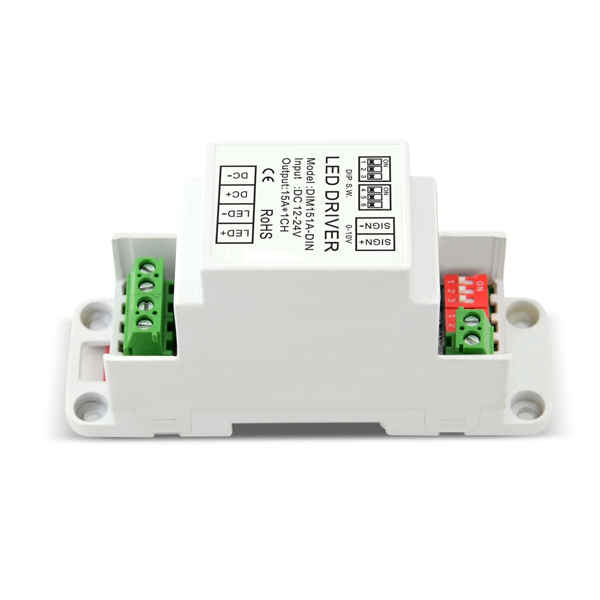

12-24VDC 15A*1ch CV 0-10V Dimmer DIM151A-DIN

Short Description:

  • Item No.: DIM151A-DIN
  • Dim Mode: 0-10V /1-10V

Product Detail

Product Tags

12- 24V DC 1 Channel Constant Voltage Dimmer DIM151A-DIN

· Support 0-10V/1-10V Active dimming.
· Support Touch DIM function.
· Support minimum brightness up-regulation function.
· Support dimmer curve selection function.
· More than kinds of functions can be selected by switch please take the switch function
tables as reference.
· Add hysteresis treatment, strengthen the anti-interference.
· Add fade effect, dimming smoother.
· Support short circuit, over current protection and alarm function.

Technical Parameters

Model DIM151A-DIN
Input Voltage DC12-24V
Signal 0-10V/1-10V( Active), Touch-DIM
Output Channels Max.5A per channel
Current 15A * 1channel, Max 15A
Power 180W(12V)/360W(24V)


Dimming mode PWM
Dimming Range 0-100%
Current consumption of 0-10V signal 0.25mA

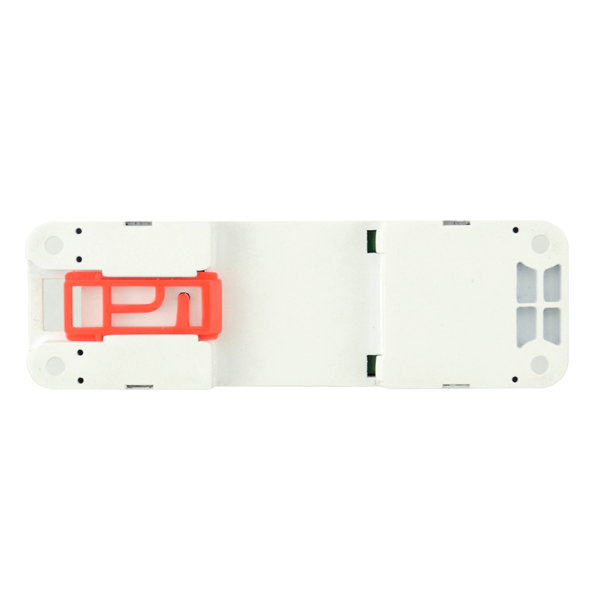

Installation Rail or Screw fixing
Install Rail TS-35/7.5 or TS-35/15
Product Size 112*35 *67mm (L*W*H)
Pack Size 354*234*232 mm (L*W*H);  60Pcs/6kg/Carton
G.W 85g
Work Temperature -30 ~ 50℃
