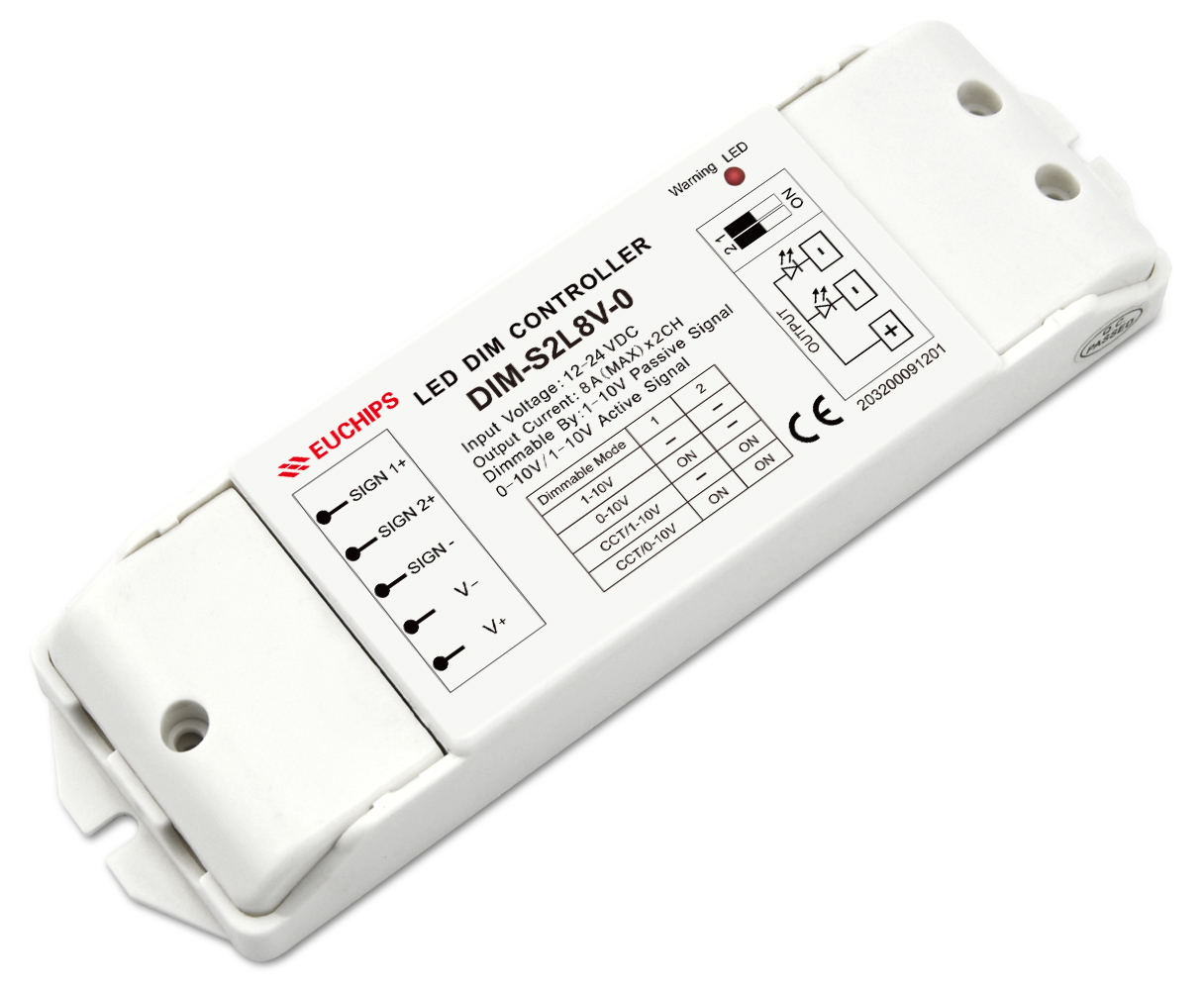

12-24VDC 8A*2ch CV 0-10V Dimmer DIM-S2L8V-0

Short Description:

  • Item No.: DIM-S2L8V-0
  • Output Current: 8A*2CH

Product Detail

Product Tags

12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0

Feature

1. Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM)

2. Support dimming mode selection

3. Support the short circuit, over current protection and alarm function

4. Logarithmic dimming curve

5. Built-in CCT adjust mode, the user can adjust color temperature without changing the output power

6. For adjusting the brightness/ color temperature of LED strip

Technical Parameter

Product Name 12-24VDC 0-10V analog constant voltage led dimmer
Model DIM-S2L8V-0
Input voltage 12-24VDC
Output voltage 12-24VDC
Output current 8A*2CH
Over current protection The red indicator light is on, recovers automatically after fault removed
Short circuit protection The red indicator light is on, recovers automatically after fault removed
Dimming mode 0-10V /1-10V active signal/Adjustable resistance/PWM
Current consumption of 0-10/1-10V signal 0.25mA
Dimension 167*51*23mmㄗL*W*Hㄘ
G.W. 100g
