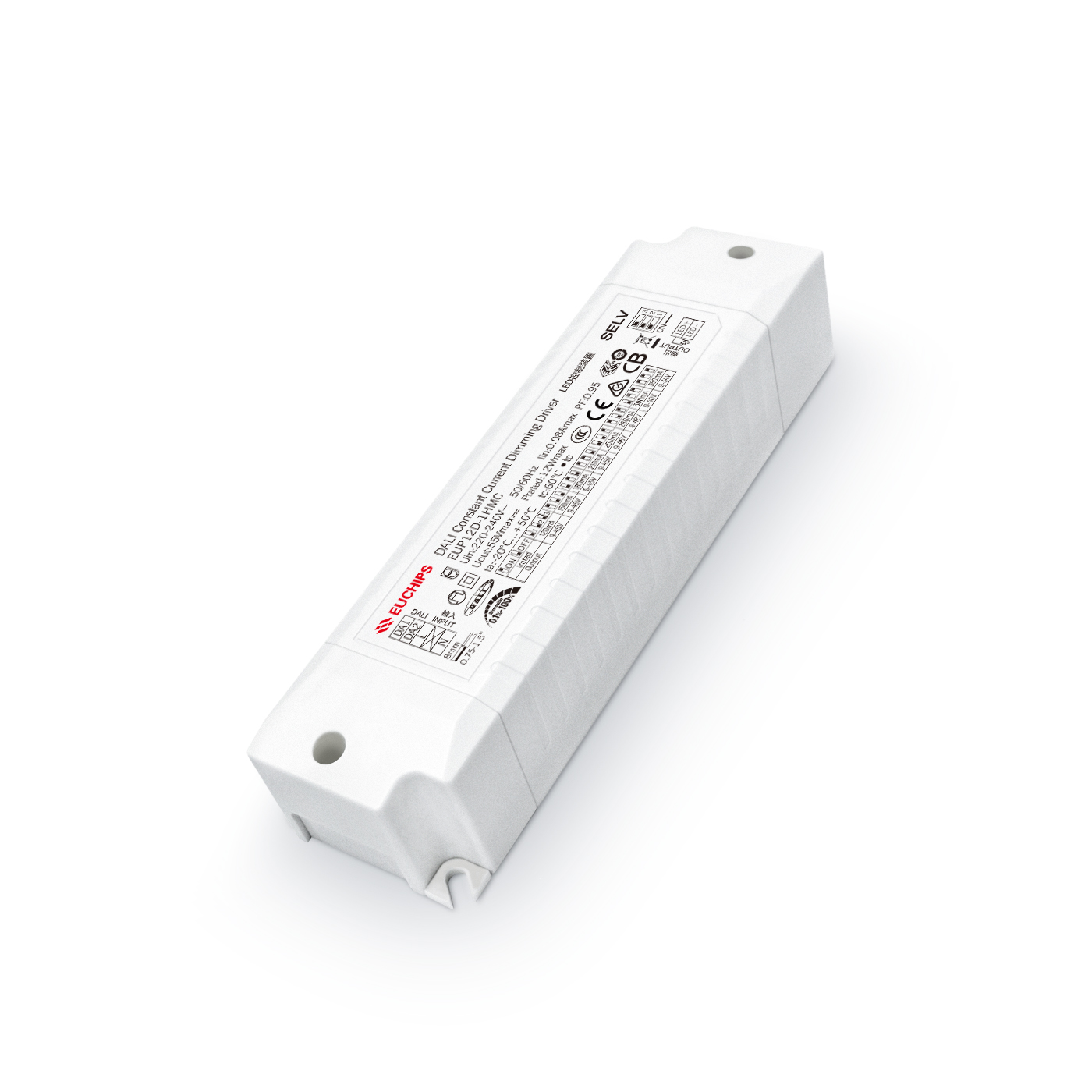

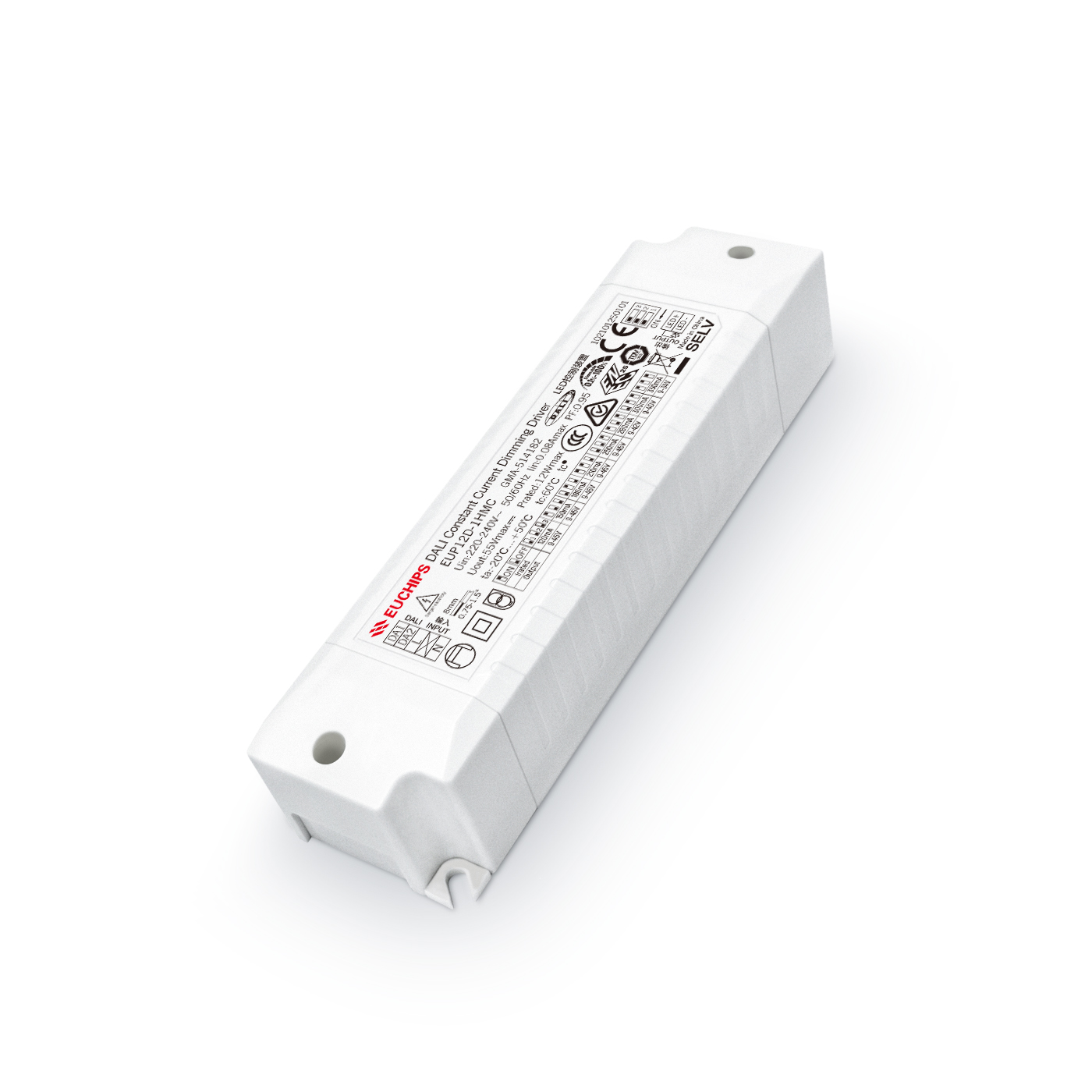

12W 120~350mA*1ch DALI CC Driver EUP12D-1HMC
12W 120/150/180/210/250/280/300/350mA Constant Current DALI-2 Driver EUP12D-1HMC
EUP12D-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP12D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed2.0
3. Support Touch-DIM function
4. High efficiency up to 84 %
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP12D-1HMC | ||
| Input | Efficiency | 84%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.08Amax@230VAC | ||
| Inrush Current(max) | Cold start,20A@230VAC 100us | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 210mA/9-42VDC/8.83W 250mA/9-42VDC/10.2W 280mA/9-42VDC/11.76W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| No load output voltage | 55VDC Max | ||
| Function | Dimming Mode | DALI | |
| Dimming Range | 0.3%-100% | ||
| Protection | Short circuit | after fault removed Close output ,the output current recovers automatically. | |
| Over Load | Hiccup , recovers after fault condition is removed. | ||
| Over Voltage | Hiccup , recovers after fault condition is removed. | ||
| Safety&EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety Standards | EN61347, GB19510 | ||
| EMC Emission | EN55015, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 60℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:60℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
