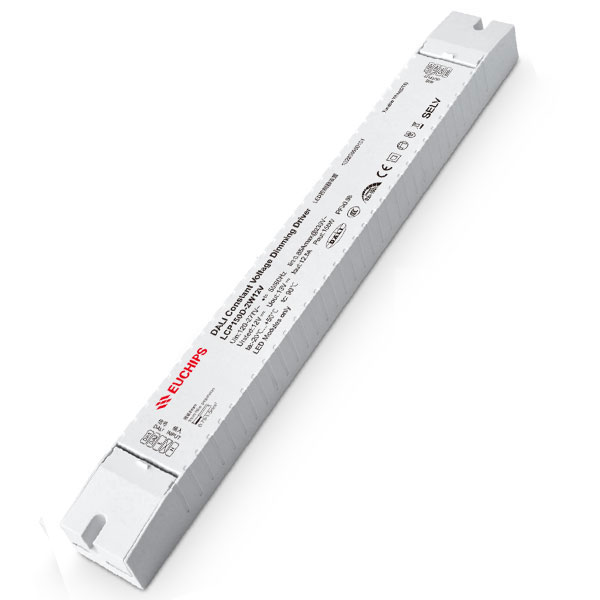

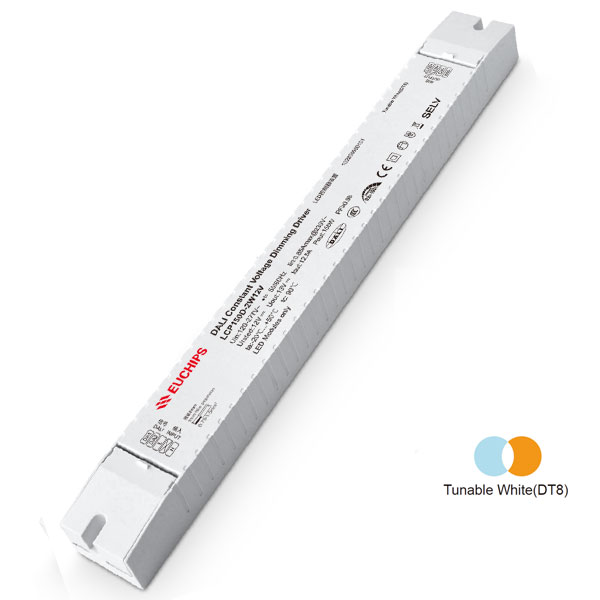

150W 12VDC 2ch DALI CV Driver DT8 LCP150D-2W12V
150W 12VDC 12.5A*2ch Constant Voltage DALI Driver LCP150D-2W12V
LCP150D-2W12V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Feature
1. 2 channels of constant voltage output, each carrying 12.5A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 12.5A
2. Meet DALI Protocol IEC62386 DT8
3. High input voltage of 120VAC ~ 277VAC
4. Dimming effect smooth, no flicker
5. Over load protection; short circuit protection
6. IP20, suitable for indoor LED lighting application
Technical Parameter
| Model | LCP150D-2W12V | |
| Input | Efficiency | 90%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC, full load | |
| THD(full load) | 5%@230VAC, Full load | |
| AC Current(max) | 0.85Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start 40A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 12.5A/12VDC/150W |
| Channel | 2 | |
| Current Tolerance | ±5% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Hiccup, recovers after fault condition is removed |
| Short Circuit | after fault removed Close output ,the output current recovers automatically | |
| Safety&EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 730g±5%/PCS; 25PCS/Carton;19kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | |
| Dimension | 360*40*32mm（L*W*H） | |
