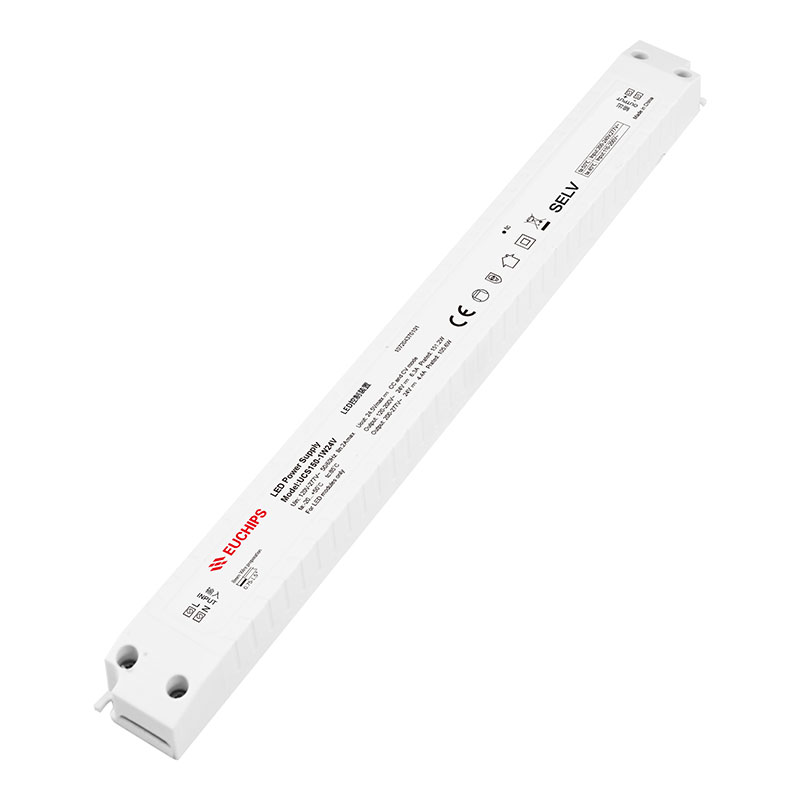

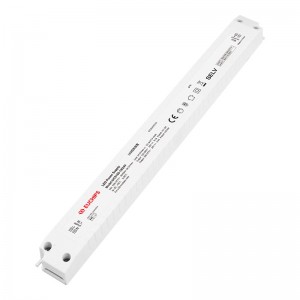

150W 24VDC Non-Dimmable CV LED Driver UCS150-1W24V

Short Description:

Item No.: UCS150-1W24V
Output Power: 150W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

150W 24VDC Non-Dimmable CV LED Driver UCS150-1W24V

Features

·Current + Voltage Output Mode
·Short circuit, overcurrent, overload protection, V0 flame-retardant housing
·Slim-profile linear design for easy installation in confined spaces
·50,000-hour lifespan with a 5-year warranty
·100% full-load burn-in testing
·IP20 rating for indoor LED strip applications

Technical Parameters

Model	UCS150-1W24V
Input	Rated Voltage Range	120VAC-305VAC (The output will be reduced under low input voltage conditions. Please refer to the static characteristic curve for details.)
	Rated Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.99Amax@120VAC、0.72Amax@230VAC、0.6Amax@277VAC
	Power Factor	≥0.97@120-277VAC , Full load
	Efficiency	>88%@120VAC , >91%@277VAC , Full load
	THD(full load)	<10%(@load≥60%/120VC,230VAC; @load≥75%/277VAC)
	Leakage current	<0.25mA / 277VAC
	Standby power	<0.5W
	No load power	<0.5W
	Inrush Current	Cold start 65A(Test twidth=270us at 50% Ipeak)/230VAC; Per NEMA 410
Output	Output Voltage	24VDC
	Constant Current Range	16.8~24V
	Output Current	6.3A Max
	Output Power Range	153W
	Output current accuracy	±3%
	Strobe (depth of fluctuation)	IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard (IEEE Std 1789-2015)
	Line regulation	±1% @Full load
	Load regulation	±1.5% @Full load
	Turn on Time	≤0.75s, at230Vac (When the lights start to come on)
Protection	Short circuit	Hiccups will recover by themselves after the fault is eliminated
	Overcurrent	Hiccups will recover by themselves after the fault is eliminated
	Overload	Load power ≥110% protection, normal output after fault elimination
	overvoltage	28~34V
Safety & EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3860VAC/1min/5mA
	Safety standard	UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,
	Safety standard	BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed
	EMC	CCC (China) GB/T17743，GB17625.1
	EMC	CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	85℃
	material	Metal
	IP Rating	IP20
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	32330.522mm (LWH)
	Packing(weight)	Net weight: 330g±5%/PCS; 50PCS/Carton; 17.15kg±5%/Carton; Carton Size:499366134mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
