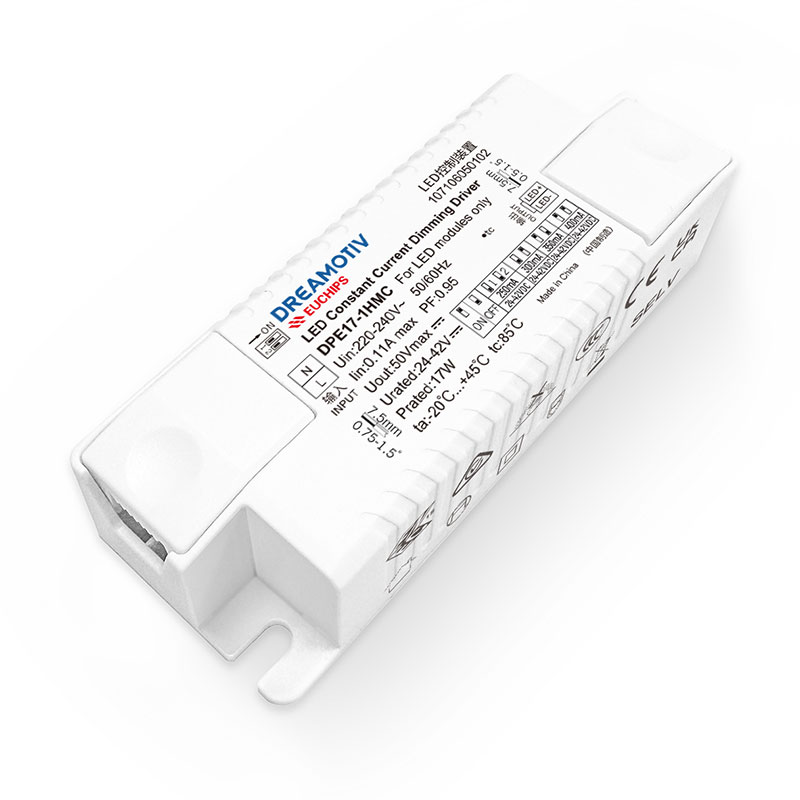

17W 250/300/350/400mA Non-dimmable CC Driver DPE17-1HMC
17W 250/300/350/400mA Non-dimmable CC Driver DPE17-1HMC
DPE17-1HMC is a 17W constant current driver, which adjusts the current through dialing. Both standalone and built-in models are available, with the option to switch between them.
Features
· Single-channel constant current output
· Short circuit, overload, and Overcurrent Protection, V0 grade flame-retardant shell
· Efficiency up to 85%
· The design of the end cap shell allows for easy disassembly, facilitating installation in confined spaces
· No-load power consumption < 0.5W
· Lifespan of 30,000 hours, with a 3-year warranty
· Protection level IP20, suitable for indoor ClassⅡlighting fixtures
Technical Parameters
|
Model |
DPE17-1HMC | |
|
Input |
Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.11Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, full load | |
| Efficiency | ≥85%@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Inrush Current | Cold start, 18.2A@230VAC 44us | |
|
Output |
Current/Voltage/power | 250mA/24-42V 300mA/24-42V 350mA/24-42V 400mA/24-42V |
| Current accuracy | ±5% | |
| Line Regulation | ±5% @ full load | |
| Load Regulation | ±5% @ full load | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Turn on delay Time | <0.5s, @230Vac(When the light begins to shine) | |
|
Protection |
Short circuit Protection | Hiccup, Auto-Recovery when the fault is removed |
| Overcurrent Protection | Hiccup, Auto-Recovery when the fault is removed | |
| Overload Protection | Load power ≥ 120% protection; protection hiccup, troubleshooting, and normal output | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
|
EMC Emission |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
|
EMC Immunity |
CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Environment |
Working Temp | -20℃~45℃ |
| Storage Temp | -25℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | Comply with 2011/65/EU |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:85℃ | |
| Warranty Condition | 3years | |
| Switch Cycle | 25,000times | |
| Body size | 95.8*36.2*24mm(L*W*H) | |
| Packing(weight) | Net weight: 53g±5%/PCS; 120PCS/Carton; 6.36kg±5%/Carton; Carton Size: 367*292*137mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
|
Remark |
All parameters were measured at an input voltage of 230VAC/50Hz，an ambient temperature of 25 ℃ and 50% humiditywithout any special instructions. | |
