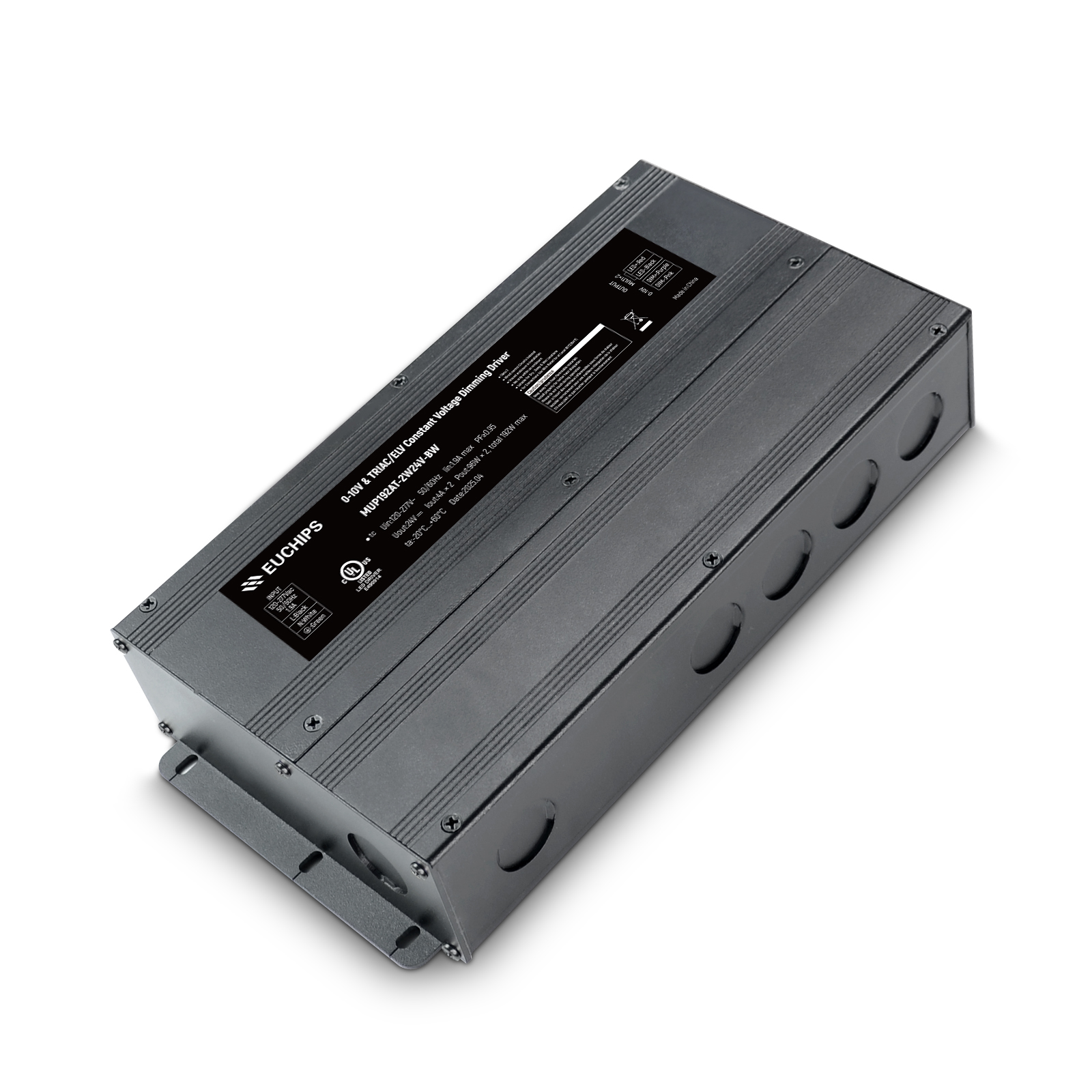

192W 24VDC 3ch Triac & 0-10V CV Driver MUP192AT-3W24V-BW
192W 24VDC Triac & 0-10V CV Driver MUP192AT-3W24V-BW
Features
· Dual channel constant voltage output, per channel 4A Max
· Input Voltage Range 108-305Vac
· Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
· TRIAC and ELV dimming at 120 Vac only
· 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: Overload; short circuit; Overcurrent
· Class 2 Output
· Safety according to UL8750 &UL 1310
· Suitable for Dry , Damp & Wet Locations
Technical Parameters
| Model | MUP192AT-2W24V-BW | |
| Input | Efficiency | ≥90%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.9Amax@120VAC 1.0Amax @230VAC 0.8Amax @277VAC | |
| PF | ≥0.95@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start, 40A@120VAC 500us, 80A@277VAC 200us | |
| Standby power | <5W@120VAC | |
| No load power | <5W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 2 Channel, 4A per channel |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W per channel, total 192W | |
| Channel | 2 | |
| Power limit | 120% | |
| Ripple | ≤300mV | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0/1-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Load | Turn off overloaded channel output, Auto-recovery after Fault Clearance | |
| Over Current | Shut down output, Auto-recovery after Fault Clearance | |
| Safety&EMC | Surge | L-N: 2kV L-N-PG:4kV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | (-20~+60) ℃ [-4°F~140°F] |
| Storage Temp., Humidity | (-40~+90)℃ [-40°F~194°F] | |
| tc | 85℃ [ 185°F ] | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ [ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: TBDg (– lb)±5%/PCS; 10PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 322*279*302mm(12.68*10.98*11.98 Inch)(L*W*H) | |
| Dimension | 260*132*52mm (10.24*5.2*2.05 Inch) (L*W*H) | |
