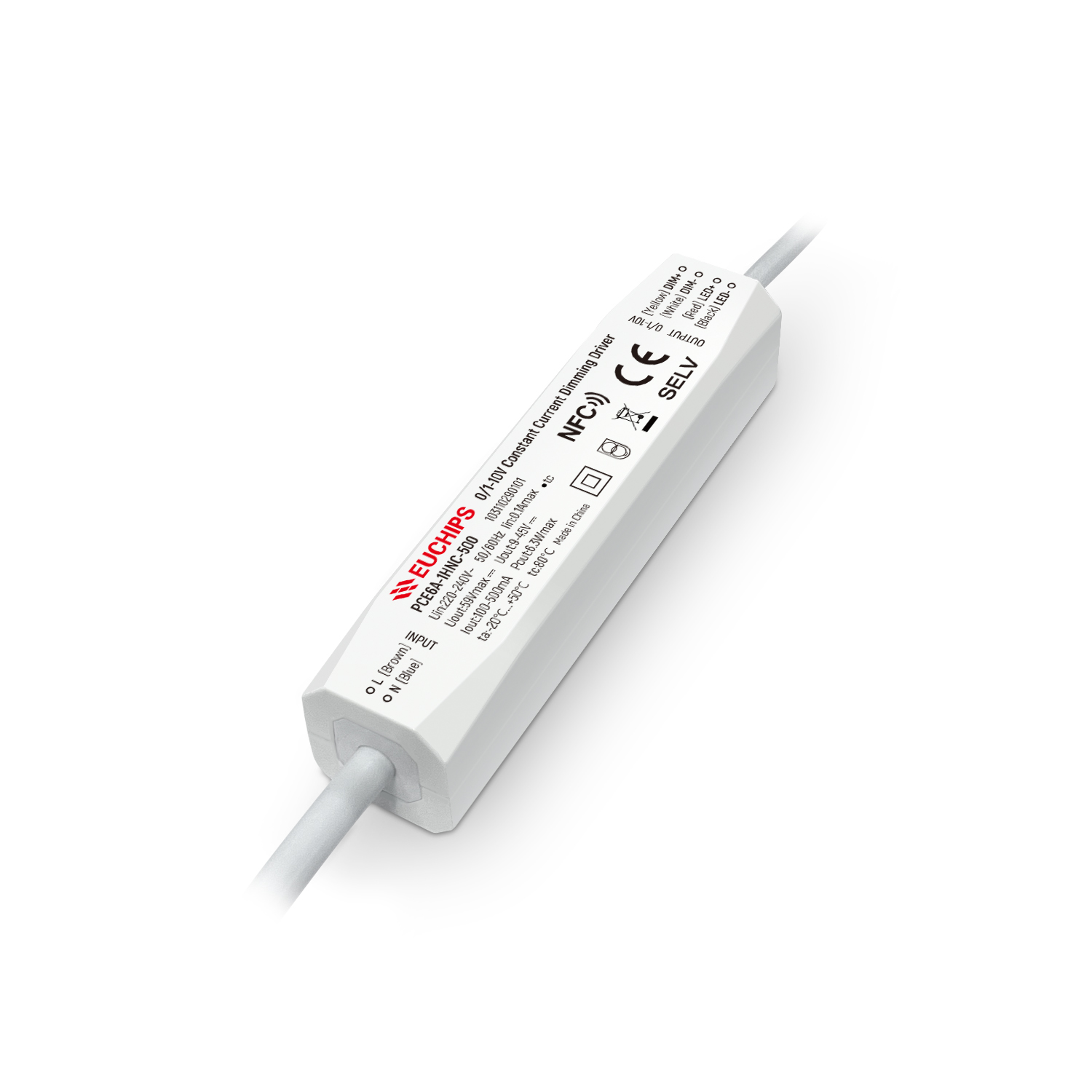

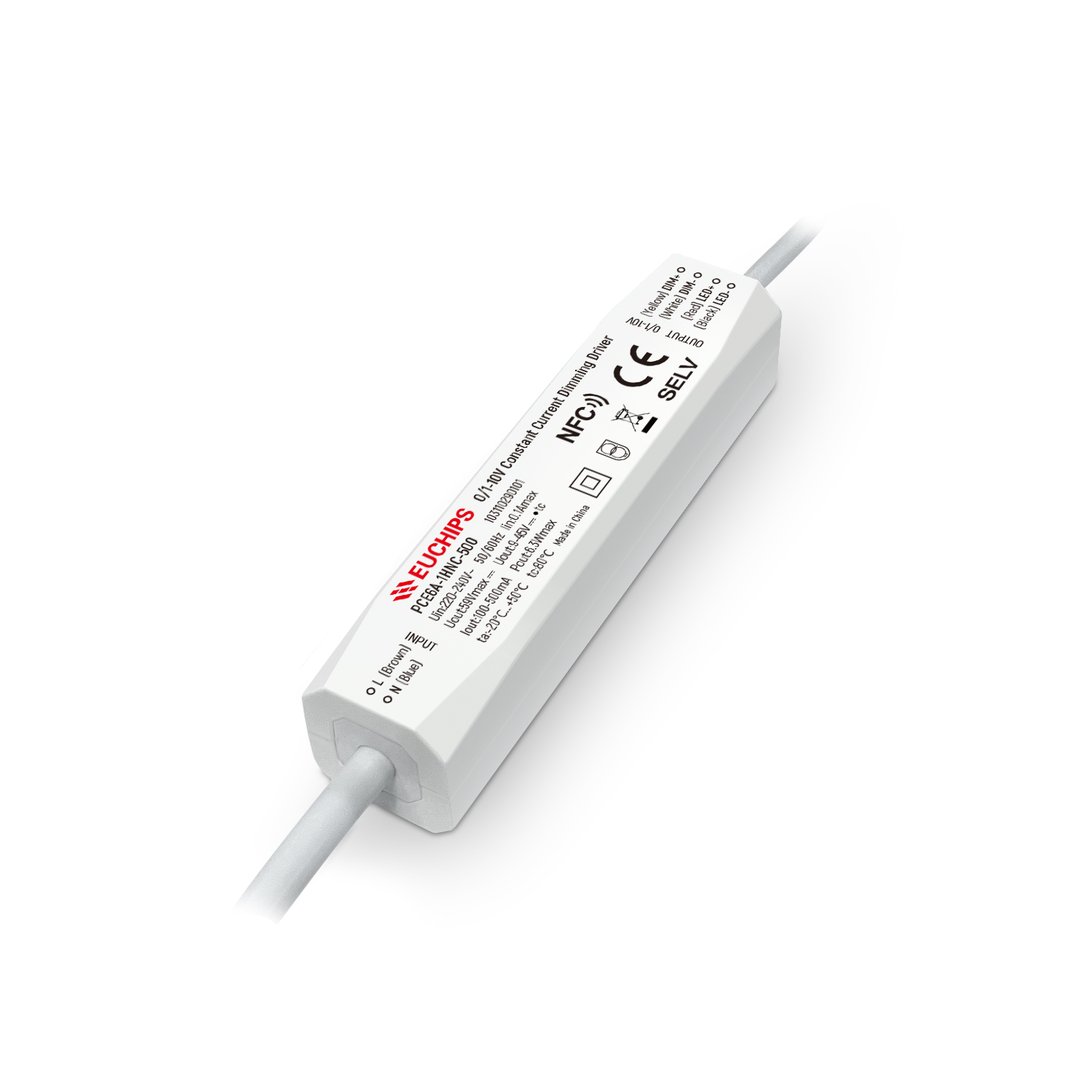

6W 100-500mA 0-10V CC Driver PCE6A-1HNC-500
6W 100-500mA 0-10V CC Driver PCE6A-1HNC-500
Features
· Single channel output, output current can be selected through NFC regulation
· Short circuit, overvoltage, overload, V0 class flame retardant housing
· Efficiency up to 71%
· High voltage input: 220VAC ~ 240VAC
· Protection level IP20, suitable for indoor ⅠⅡⅢ lamps
· Dimming range 0.5%-100% dimming, smooth dimming without step sense and stroboscopic
· Mini size is suitable for installation in narrow Spaces
· Lifespan: 50,000 hours, 5-year warranty
· Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | PCE6A-1HNC-500 | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.1Amax@230VAC | |
| Power Factor | >0.5@230VAC, Full load | |
| Efficiency | 71%@230VAC, Full load | |
| THD | / | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current | Cold start,13.2A@230V 76us | |
| Output | Output Voltage | 9-45VDC |
| Voltage Accuracy | / | |
| Output Current | 100mA-500mA (NFC adjustable current, factory default 100mA, maximum on-load power 6.3W) | |
| Current Accuracy | ±5% | |
| Output Power | 6W Max. | |
| Output Power Range | 0W~6.3W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Dimming frequency | / | |
| Line Regulation | ±1% @Full load | |
| Load Regulation | ±0.5% @Full load | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | 0/1-10V |
| Dimming Range | 0.5%-100% Dimming to OFF | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Protection | Short circuit | There was no output due to short circuit. The output was normal after the fault was eliminated |
| Over Current | / | |
| Over load | The current has dropped, but the fault has been eliminated and the output is normal | |
| Over Voltage | / | |
| Over temperature | / | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA O/P-Signal( 0/1-10V ):1500VAC/1min/5mA | |
|
Safety Standards |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
|
EMC Emission |
CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 80℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 84*20*20mmmm (L*W*H) | |
| Packing(weight) | Net weight: 50g±5%/PCS; 80PCS/Carton; 4.5kg±5%/Carton; Carton Size: 341*252*174mm(L*W*H) | |
| Noise | In a quiet environment, no noise beyond 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
