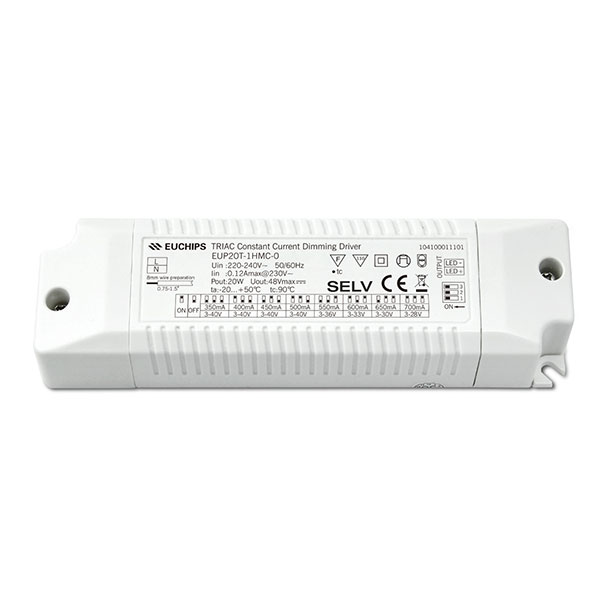

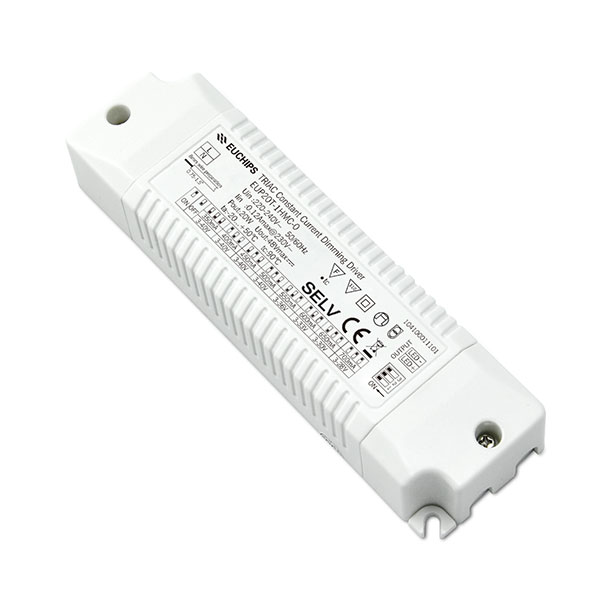

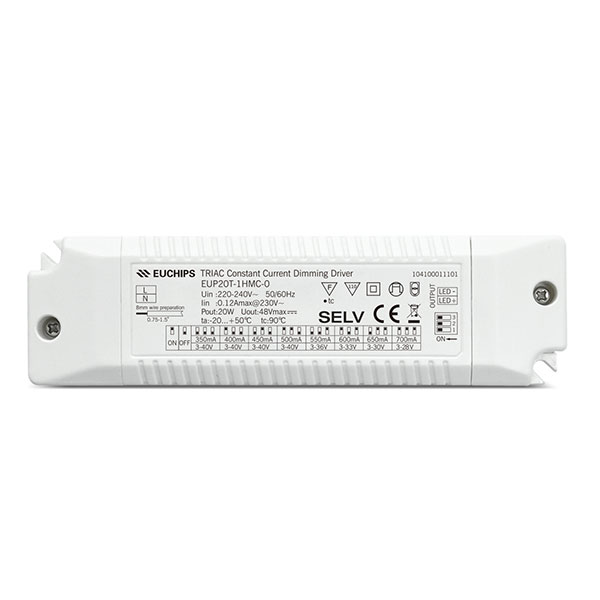

20W 350~700mA*1ch Phase-cut CC Driver EUP20T-1HMC-0

Short Description:

  • Item No.: EUP20T-1HMC-0
  • Input Voltage: 220-240VAC
  • Output Current: 350/400/450/500/550/600/650/700mA
  • Output Power: 20W
  • Dim Mode: Triac/ELV
  • Size: 150 *43*29mm

Product Detail

Product Tags

20W 350/400/450/500/550/600/650/700mA Phase-cut dimmable constant current led driver EUP20T-1HMC-0

Feature

1. Single channel output, output current level selectable by DIP S.W.

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

3. Dimming range from 40VAC to 240VAC

4. Built-in active PFC function

5. Class 2 power supply. Full protective plastic housing

6. Dimming effect smooth, no flicker

7. Protections: Short circuit, over load, over temperature

8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on

Technical Parameter

Model EUP20T-1HMC-0
Input Efficiency 81%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Power Factor ≥0.95@230VAC,full load
Current 0.12Amax@230VAC,
THD <20%@230VAC,full load
Inrush Current Cold start, 15A(twidth=30us measured at 50% Ipeak@230VAC
Output Current/Voltage/Power 350mA/9-40VDC/14W 450mA/9-40VDC/18W 550mA/9-36VDC/19.8W 650mA/9-30VDC/19.5W
400mA/9-40VDC/16W 500mA/9-40VDC/20W 600mA/9-33VDC/19.8W 700mA/9-28VDC/19.6W
Ripple Current <3%
Channel 1
Current Tolerance ±5%
No Load Output Voltage 48V Max
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac/ELV
Protection Over temperature Shut down the output, recovers automatically when temp. back to normal.
Short Circuit Shut down the output automatically recovers after faulty condition is removed.
Over Load When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
Others Working Temp. -20℃~50℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 90℃
Material PC
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 130g±5%/PCS; 50PCS/Carton; 7kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H)
Dimension 150*43*29mm(L*W*H)
