350W 24V Non-dimmable CV Driver DLRS350-1K24V
350W 24V Non-dimmable CV Driver DLRS350-1K24V

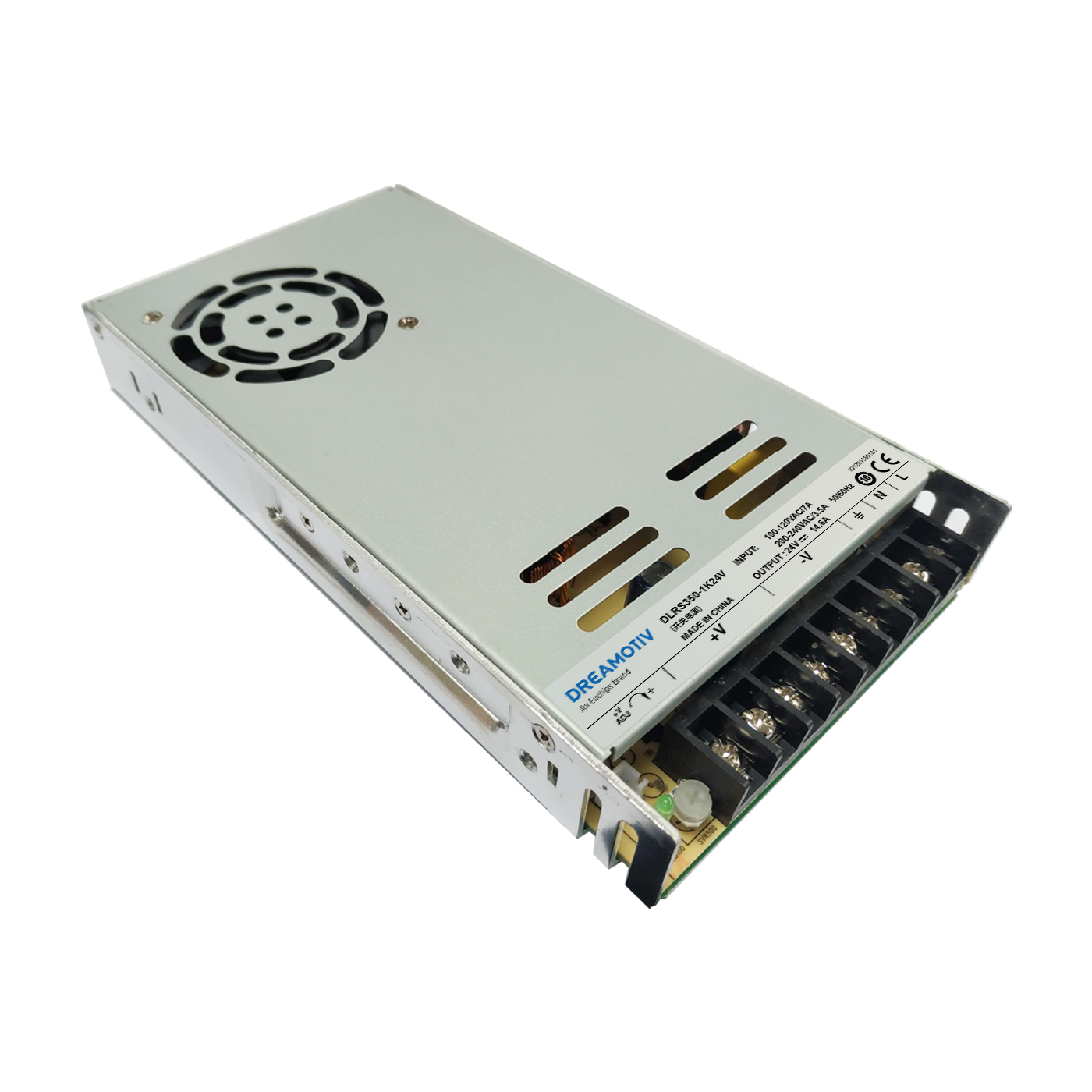

DLRS350-1K24V is a 350W single output metal chassis power supply. This series of power supplies have the characteristics of universal universal input voltage range, AC / DC dual-use, high cost performance, low power consumption, high efficiency, high reliability, and safe isolation. The product is safe and reliable, and has good EMC performance, providing a cost-effective solution for various industrial power supplies.
Features
· Full range AC input（90-132VAC/180-264VAC）
· Input voltage range：240-373VDC(switch at 230 gear)
· Support 300vac surge input for 5 seconds
· Low power consumption, high efficient
· Small size, ultra low height 30mm
· Working temperature: -30℃ ~ +70℃
· Short circuit/ Over current/ over voltage protections
· Meet IEC/EN/UL62368、EN60335、GB4943 certification standards
· Meet 5000m altitude applications
· Low ripple noise, low power consumption, and high efficiency
· Over voltage level Ⅲ
Technical Parameters
| Model | DLRS350-1K24V | ||||||
|
Input |
Efficiency | 87%@230VAC, Full load | |||||
| Voltage | low(Switch 115):90-132VAC | High(Switch 230):180-264VAC | Dc Input(Switch 230):240-373VDC | ||||
| Voltage Frequency | 47/63Hz | ||||||
| Current(max) | 7Amax@115VAC | 3.5Amax@230VAC | |||||
| Inrush Current(max) | Cold start,60A@230VAC | ||||||
| Leakage current | 0.75mA@240VAC | ||||||
|
Output |
Current / Voltage / Power | 14.6A/24VDC/350.4W | |||||
| Output Voltage Range | 21.6~28.8V | ||||||
| normal temperature Capacitive Load(max) | 4000 | ||||||
| R & N (Max) | 180mVp-p | ||||||
| Channel | 1 | ||||||
| Current Tolerance | 0-100% Load | ±1.5% | |||||
| Line regulation | rated load | ±0.5% | |||||
| Load regulation | 0-100% Load | ±1.5% | |||||
| Temperature drift coefficient | ±0.03% | ||||||
| Start-up delay | 1500ms max, at115Vac | 1500ms max, at230Vac | |||||
| Rise time | 50ms max, at115Vac | 50ms max, at230Vac | |||||
| Hot Swap | Not support | ||||||
|
Protection |
Short Circuit | Close output，recovers automatically after fault removed | |||||
| Over current | 105~125%Io，recovers automatically | ||||||
| Over Voltage | 28.8-34V protection voltage range, shut down the output voltage during protection,
and restart after the remaining power in the power supply is discharged. |
||||||
| Safety testing | Isolation voltage（1minute，Leakage current＜10mA） | Input-Output＞3000VAC,Input-Earth＞2000VAC,Output-Earth＞500VAC | |||||
| SIR（500VDC/25℃/70%RH） | Input-Output,Input-Earth,Output-Earth＞100M Ohms. | ||||||
|
Others |
Working Temp. | -30 ~+70℃ | |||||
| Storage Temp.; Humidity | 10~95%RH, No condensation environment, -40℃~+85℃ | ||||||
| Safety standards | IEC/EN/UL62368/EN60335/GB4943 | ||||||
| Material | Metal | ||||||
| IP Rating | IP20 | ||||||
| MTBF | ＞300K hrs. MIL-HDBK-217(25℃) | ||||||
| Switching frequency | 65K Hz | ||||||
| Pack Information | Net weight:690g±5%/PCS; 15PCS/Carton; 11.4kg±5%/Carton; Carton Size:364*227*179mm(L*W*H) | ||||||
| Dimension | 215*115*30mm | ||||||
