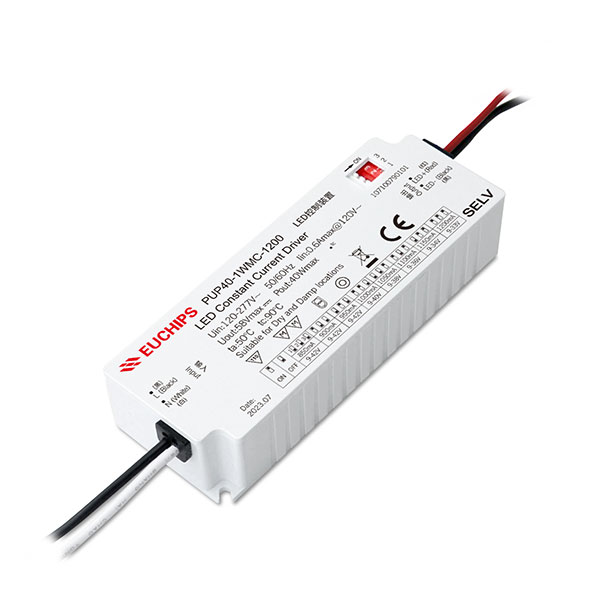

40W 850~1200mA Non-dimmable CC Driver PUP40-1WMC-1200
40W 1200mA Constant Current Driver PUP40-1WMC-1200
PUP40-1WMC-1200 is a constant current output mode LED driver. The output circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
· Single channel output, output current level selectable by DIP S.W.
· Input voltage of 120VAC ~ 277VAC
· flicker free
· Protections: Short circuit, Over load，Over voltage
· Suitable for indoor LED lighting application
Technical Parameters
| Model | PUP40-1WMC-1200 | |
| Input | Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@120VAC, Full load | |
| PF | ≥0.99@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Output | Current/Voltage/Power | 850mA/9-42V/35.7W 950mA/9-42V/39.99W 1050mA/9-38V/39.9W 1150mA/9-34V/39.1W900mA/9-42V/37.8W 1000mA/9-40V/40W 1100mA/9-36V/39.6W 1200mA/9-33V/39.6W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015 ,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Others | Dimension | 121*44*26.5mm(L*W*H) |
| Pack Information | Net weight: 214g±5%/PCS; 50PCS/Carton; 11.2kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
