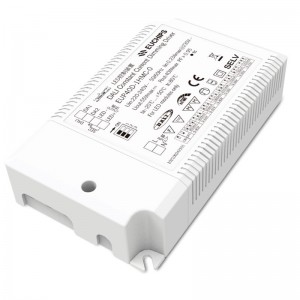

40W 12VDC DALI CV Driver EUP40D-1W12V-0

Short Description:

  • Item No.: EUP40D-1W12V-0
  • Input Voltage: 100-240VAC
  • Output Current: 3.4A*1CH
  • Output Voltage: 12VDC
  • Output Power: 40W
  • Dim Mode: Touch DIM
  • G.W.: 220g
  • Size: 137*82*31mm

Product Detail

Product Tags

40W 12VDC 3.4A*1ch 100-240VAC Constant Voltage DALI Driver EUP40D-1W12V-0


1. Single-channel constant voltage output,12V;
2. Meet DALI Protocol IEC 62386
3. Support Touch-DIM function
4. Wide input voltage of 100VAC ~ 240VAC
5. High efficiency up to 86%
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Over power protection , over voltage protection
9. Suitable for indoor LED lighting application

Technical Parameter

Product Name 40W 12VDC DALI Dimming Constant Voltage LED Driver
Model EUP40D-1W12V-0
Output DC Voltage 12V
Current 3.4A/CH
Rated Power 40.8W
Voltage Tolerance ±5%
R & N(max) 120mVp-p
Channels 1
Input Voltage Range 100 – 240VAC
Frequency Range 50/60Hz
Power Factor(Type) ≧0.5
Efficiency(Type) 86%
Current 0.4A max. @230VAC
Inrush current 30A@230VAC
Protection Over Power Close output, recovers automatically fault condition is removed
Over Voltage Hiccup mode, recovers after fault condition is removed
Function Dimming DALI dimmer/ Touch DIM
Others Dimension 137 (L)*82(W)*31(H)mm
G.W.(g) 220g
Relative Humidity 20%~90%RH
Working Temp -20℃ - 40℃
