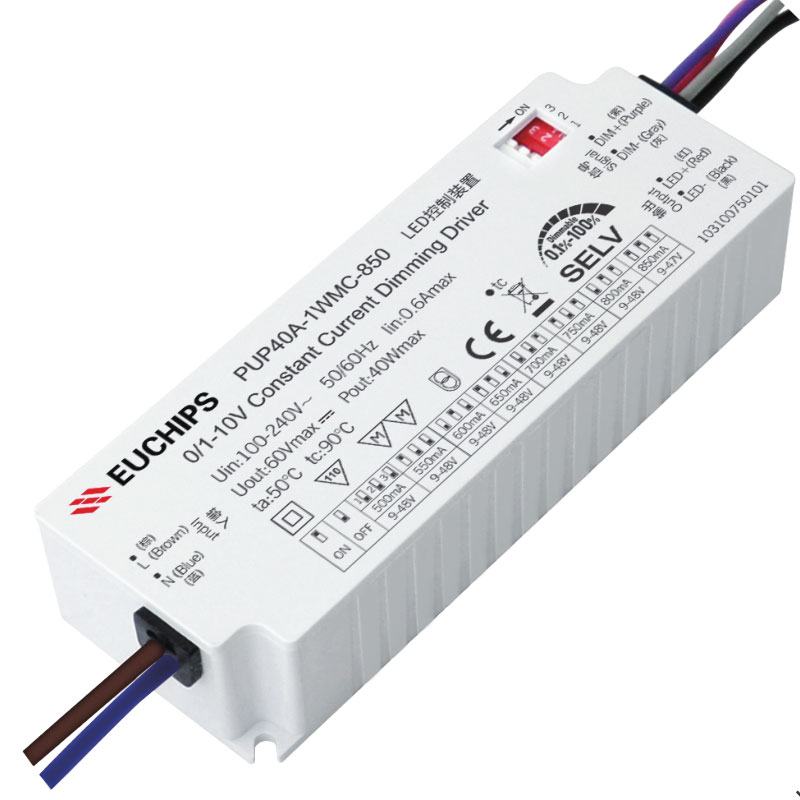

40W 500~850mA 0/1-10V CC Driver PUP40A-1WMC-850

Short Description:

  • Item No.: PUP40A-1WMC-850
  • Input Voltage: 100-240VAC
  • Output Power: 40W

Product Detail

Product Tags

40W 500~850mA 0/1-10V Constant Current Driver PUP40A-1WMC-850

PUP40A-1WMC-850 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.

Features

1. Single channel output, output current level selectable by DIP S.W.

2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM(A model)

3. Input voltage of 100VAC ~ 240VAC

4. Dimming range: 0.1-100%,Dimming effect smooth, no flicker

5. Protections: Short circuit, Over load,Over voltage

6. Suitable for indoor LED lighting application

Technical Paramters

Model PUP40A-1WMC-850
Input Voltage 100VAC-240VAC
Frequency 50/60Hz
Efficiency >87%@230VAC, Full load
PF 0.95@230VAC, Full load
THD(full load) <10%@230VAC, Full load
Current 0.6Amax@100VAC
Inrush Current Cold start,30A@230VAC
Standby Power <1W
Output Current/Voltage/Power 500mA/9-48V/24W
550mA/9-48V/26.5W
600mA/9-48V/28.8W
650mA/9-48V/31.2W
700mA/9-48V/33.6W
750mA/9-48V/36W
800mA/9-48V/38.4W
850mA/9-47V/39.95W
Channel 1
No load output voltage 60V Max
Frequency 1KHz Min PWM
Current Accuracy ±5%
LF current ripple(<120Hz) <3%
Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Close output, recovers automatically after fault removed
Safety&EMC Surge L-N:1KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMC Eission EN50515,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)
Others Dimming type 0/1-10V(Type A)
Dimming range 0.1%-100% Dimming to off
Dimension 121*44*26.5mm(L*W*H)
Pack Information Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H)
IP rating IP20
Working temp. -20℃~50℃
tc 90℃
Relative humidity 20~90% RH
Lifetime 50,000h@tc:85℃
Material PC
Switch cycle >25,000 times
