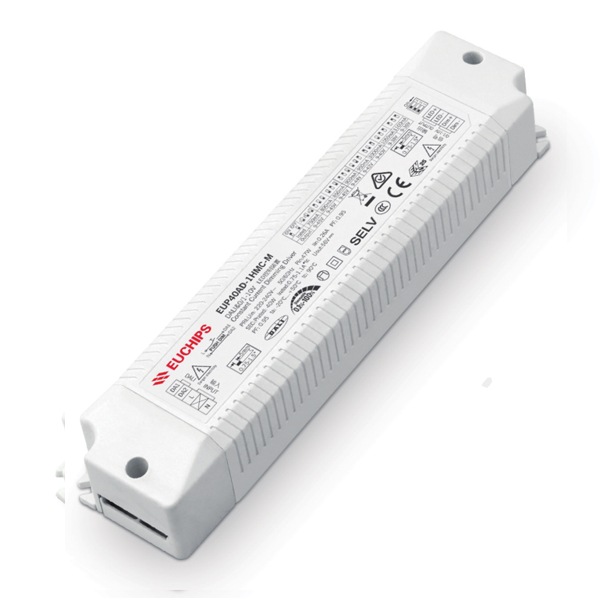

EUP40AD-1HMC-M is a constant current output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming
circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support DALI2.0 dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
· Dimming range: 0.1-100% Dimming effect smooth, no flicker
· Protections: Short circuit, Over load, Over Voltage
· Suitable for indoor LED lighting application
Technical Parameters
| Model | EUP40AD-1HMC-M | |
|
Input |
Efficiency | 88%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | 0.26Amax@230VAC | |
| Standby power | 0.5W | |
| Inrush Current(max) | Cold start, 60A@230VAC | |
| Current/Voltage/Power | 750mA/9-45V/33.75W 850mA/9-45V/38.25W 950mA/9-42V/39.9W 1050mA/9-38V/39.9W | |
| 800mA/9-45V/36W 900mA/9-44V/39.6W 1000mA/9-40V/40W 1100mA/9-36V/39.6W | ||
| Ripple Current | <3% | |
| Output | Channel | 1 |
| Current Tolerance | ±5% | |
| No-Load Voltage | 56VDC | |
| Voltage Range | 9-45VDC | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V/DALI-2/Touch DIM (Push DIM)/PWM/RX |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | Hiccup, recovers after fault condition is removed. | |
| Over Voltage | Hiccup, recovers after fault condition is removed. | |
|
Safety & EMC |
Surge | L-N:1KV; |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3, EN6154 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
|
Others |
Working Temp., Humidity | -20°C~+50°C, 20-50%RH |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| Tc | 90°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | |
| Dimension | 185*43*29mm(L*W*H) |
