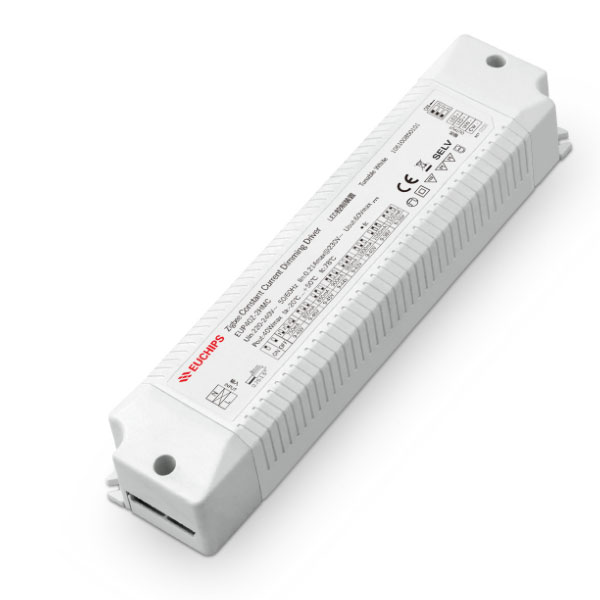

40W 750~1100mA*2ch Zigbee CC Driver EUP40Z-2HMC
40W 750~1100mA*2ch Zigbee CC Driver EUP40Z-2HMC
EUP40Z-2HMC is a product that can provide 750 / 800 / 850 / 900 / 950 / 1000 / 1050 / 1100ma The output current of LED Driver with 8-level current can be easily set through dip dial switch Realize wireless dimming and color matching effect through ZigBee.
Features
1. output current level selectable by DIP S.W.
2. Wide input voltage of 220VAC ~ 240VAC
3. High efficiency up to 87%
4. Built-in active PFC function
5. Protections: Over Voltage, Over Load, Short circuit
6. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP40Z-2HMC | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range | 50/60Hz | |
| Efficiency | ≥87%@230VAC, full load | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.21Amax@230VAC | |
| Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | |
| standby power | ≤1W | |
| No load power | ≤1W | |
| start delay | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Current / Voltage / Power | 750mA/9-45VDC/33.75W 800mA/9-45VDC/36W850mA/9-45VDC/38.25W 900mA/9-44VDC/39.6W950mA/9-42VDC/39.9W 1000mA/9-40VDC/40W
1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W |
| Voltage | 45V | |
| electric current | MAX 1.1A | |
| Output voltage range | 9-45V | |
| Dial switch | 750-11000MA | |
| Channel | 2 | |
| Current accuracy | 5% | |
| power | 40W | |
| Ripple current | <3% | |
| No load voltage | 60V | |
| Fuction | Dimming Type | Zigbee |
| Dimming Range | 1%-100% | |
| Dimming curve | linear | |
| Protection | Over voltage | The current drops and the output is normal after troubleshooting |
| Over Load | Reduce the current burping protection, remove the fault, and the output is normal | |
| short circuit | There is no output due to short circuit. After troubleshooting, the output is normal | |
| Safety & EMC | Surge | L-N 2000VAC |
| Withstand voltage | Input to output 3750VAC / 1min / < 5mA | |
| safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation impedance | 5MΩ | |
| Others | Waterproof grade | IP20 |
| working temperature | ta:-20℃~50℃ | |
| tc | 78℃@220Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| life | 50,000h@tc:78℃ | |
| Warranty | 5 Years | |
| texture of material | Plastic shell | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 183g ± 5% / PCS; 50PCS/Carton; 9.65kg ± 5% / box; Outer box size:430*306*168mm | |
| Dimension | 185*42.5*28.5mm | |
