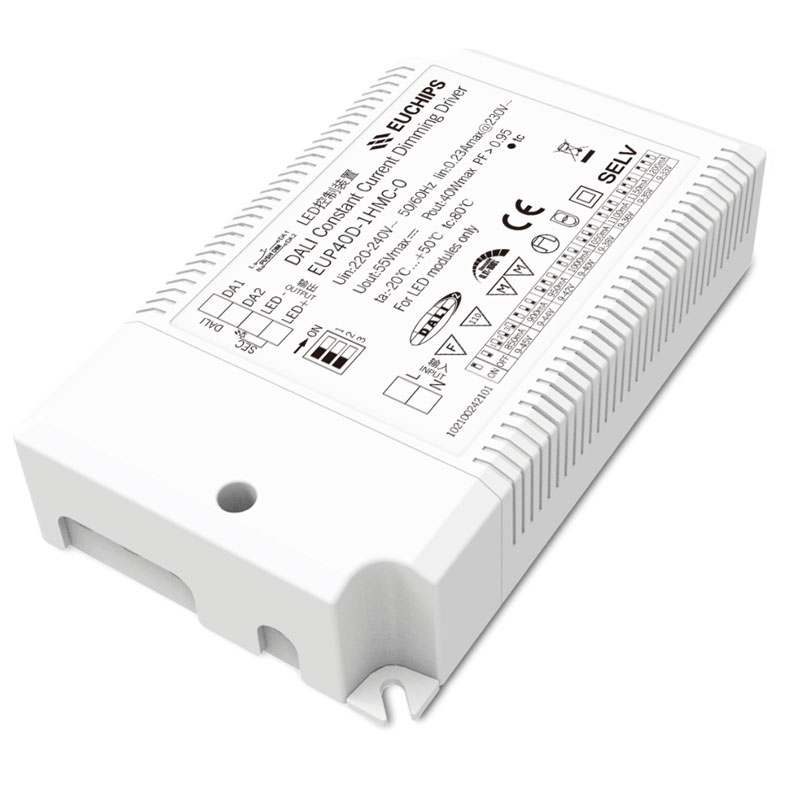

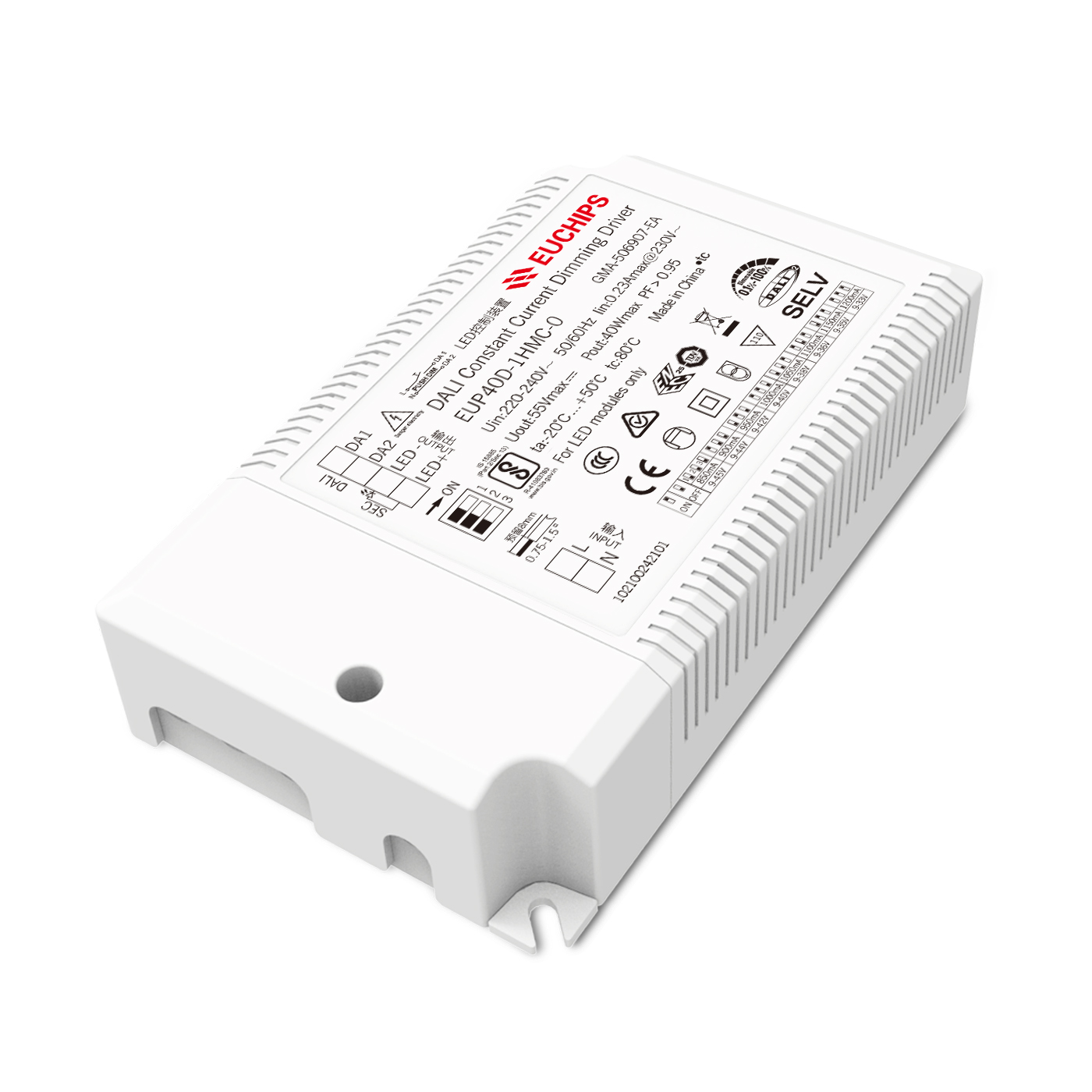

40W 850~1200mA*1ch DALI CC Driver EUP40D-1HMC-0
40W 850/900/950/1000/1050/1100/1150/1200mA Constant Current DALI Driver EUP40D-1HMC-0(DALI-2)
EUP40D-1HMC-0 is a 40W AC/DC constant current mode output LED driver featuring the
multiple levels selectable by DIP switch and complies with DALI standard protocol IEC
62386. EUP40D-1HMC-0 can be connected to DALI main controller or Touch DIM(Push DIM)
to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed 2.0
3. Support Touch DIM (Push DIM)function
4. High efficiency up to 88%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, no load
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP40D-1HMC-0 | ||
| Input | Efficiency | 88%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.23Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,22A(twidth=60us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
850mA/9-45VDC/38.25W900mA/9-44VDC/39.6W950mA/9-42VDC/39.9W1000mA/9-40VDC/40W1050mA/9-38VDC/39.9W1100mA/9-36VDC/39.6W1150mA/9-35VDC/40.25W1200mA/9-33VDC/39.6W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 55V Max | ||
| Function | Dimming Mode | DALI /Touch DIM(Push DIM) | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| No load | The LED Driver will not be damaged | ||
| Safety&EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC62386-207 Ed2.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 80℃ | ||
| Material | ABS | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:80℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 517*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
