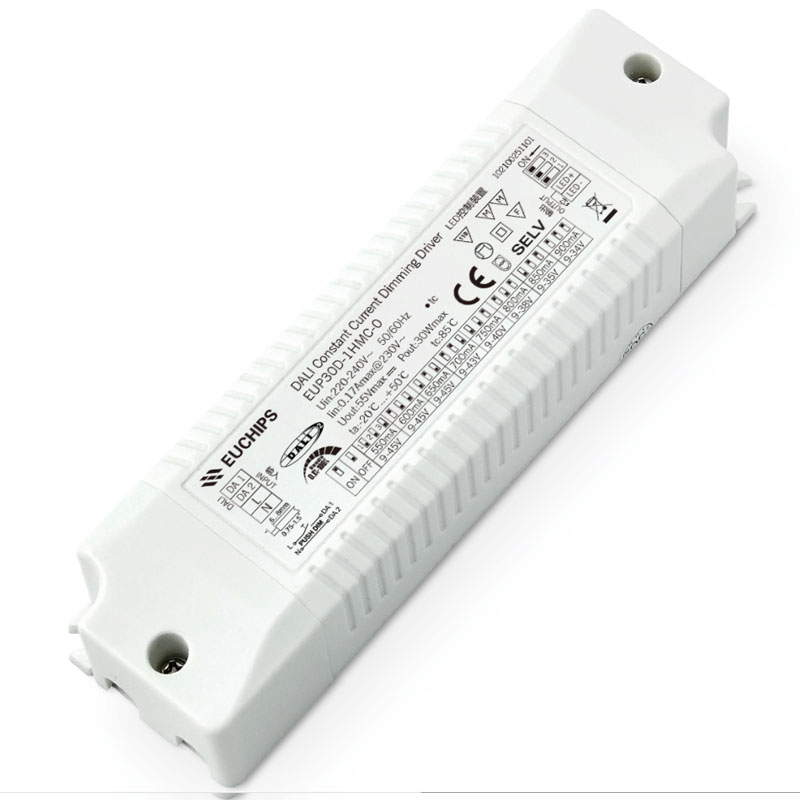

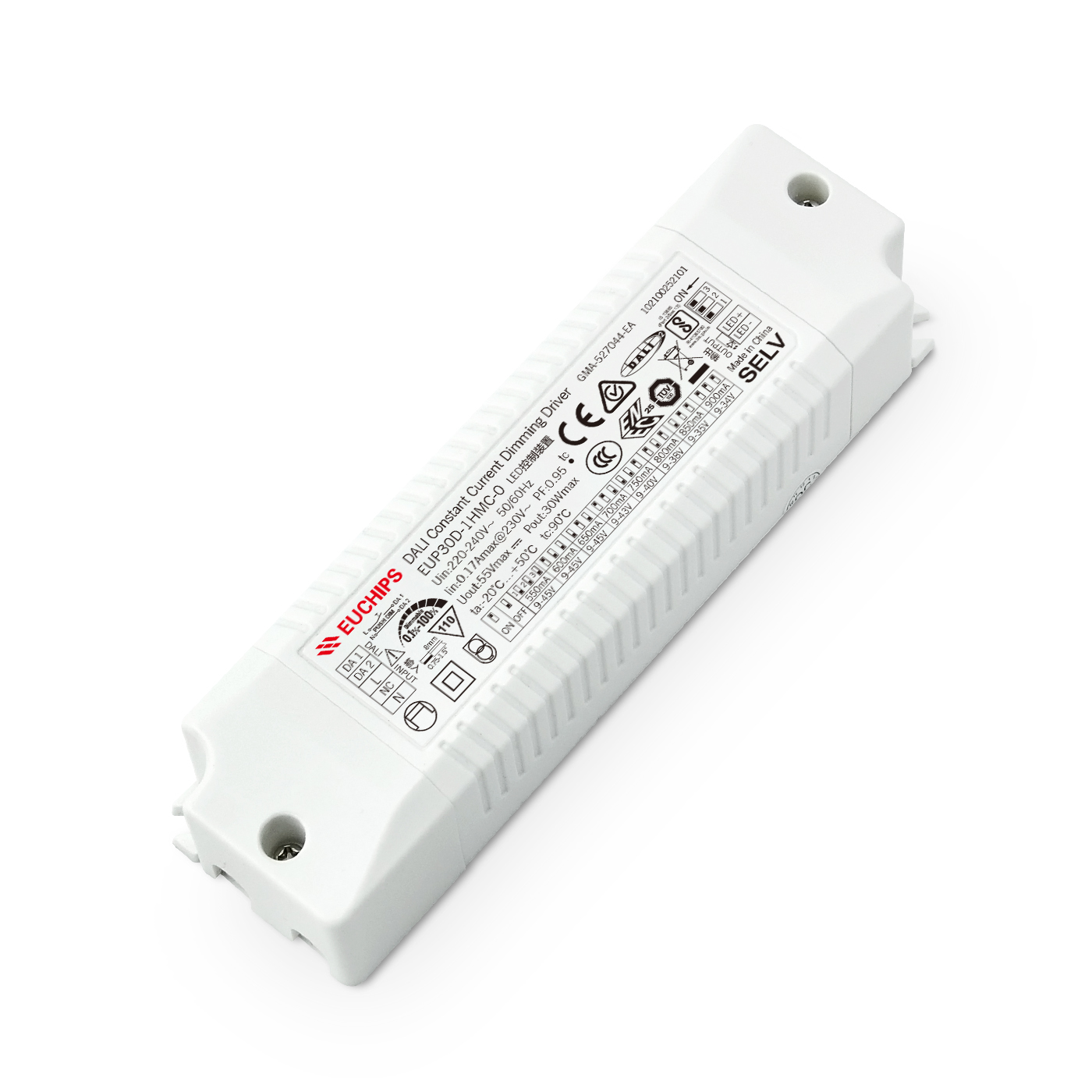

30W 550~900mA*1ch DALI CC Driver EUP30D-1HMC-0
30W 550/600/650/700/750/800/850/900mA*1ch Constant Current DALI Driver(DALI-2) EUP30D-1HMC-0
EUP30D-1HMC-0 is a 30W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP30D-1HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed2.0
3. Support Touch DIM(Push DIM) function
4. High efficiency up to 87%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protection: short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel lights, and so on
Technical Parameter
| Model | EUP30D-1HMC-0 | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.17Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,28A(twidth=30us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
550mA/9-45VDC/24.75W 600mA/9-45VDC/27W 650mA/9-45VDC/29.25W 700mA/9-43VDC/30.1W 750mA/9-40VDC/30W 800mA/9-38VDC/30.4W 850mA/9-35VDC/29.75W 900mA/9-34VDC/30.6W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 55V Max | ||
| Turn on delay Time | <1.5s, at230Vac | ||
| Function | Dimming Mode | DALI/Touch DIM(Push DIM) | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Protection | Short circuit | Shut down the output, recovers automatically after fault removed | |
| Over Load | The output current decreases and, recovers automatically when the load is reduced | ||
| Over Voltage | The output current decreases and, recovers automatically when the load is reduced. | ||
| Safety&EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC62386-207 Ed2.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 85℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*42.5*28.5mm(L*W*H) | ||
