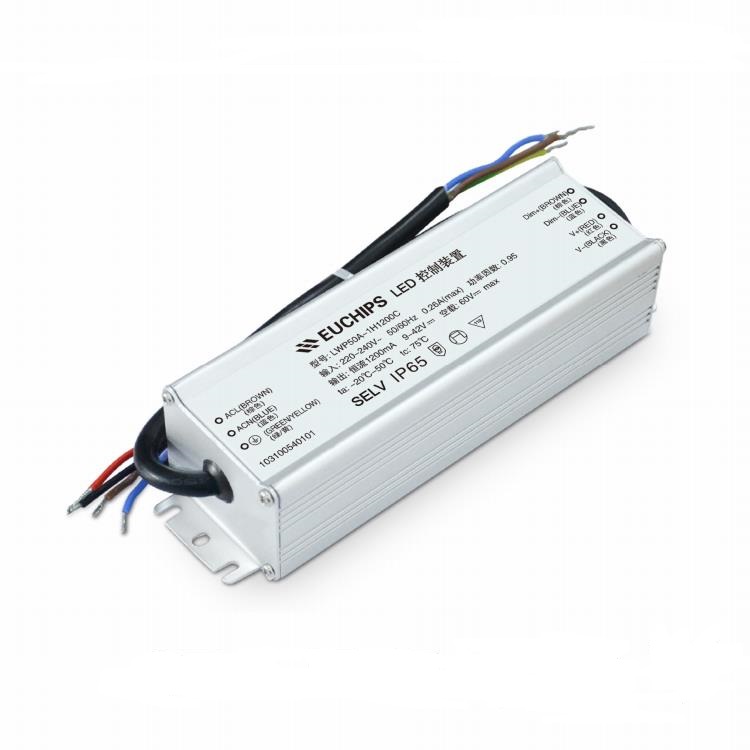

50W 1200mA 0/1-10V Waterproof CC Driver LWP50A-1H1200C

Short Description:

Item No.: LWP50A-1H1200C
Output Power: 50W

Download Certificates Download Test Reports

Product Detail

Product Tags

50W 1200mA 0/1-10V Waterproof CC Driver LWP50A-1H1200C

LWP50A-1H1200C is a 50W AC to DC LED driver, which can achieve smooth dimming effect by adding 1-10VDC active signal, 10V PWM signal or adjustable resistance.

Features

· Constant current output
· Built in active PFC function
· THD <10%
· Overload protection, short circuit protection, no-load protection
· IP65, suitable for various LED lighting applications requiring dimming

Technical Parameters

Model	LWP50A-1H1200C
Input	Efficiency	88%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50Hz
	Power Factor	≥0.95@230VAC, Full load
	THD(full load)	<10%@230VAC, Full load
	AC Current(max)	0.26Amax@230VAC
	Inrush Current(max)	Cold start, 35A(twidth=10us measured at 50% Ipeak)@230VAC
Output	Current/Voltage/Power	1200mA/9-42VDC/50.4W(max)
	No load output voltage	60VDC Max
	Current Tolerance	±5%
	Ripple Current	<3%
	Load Rugulation Rate	<±5%
	Linear Rugulation Rate	<±5%
	Turn on Delay	<1.5s
Function	Dimming Type	1-10V(0.7V start, 9.7V full light)
Function	Dimming Depth	1%
Protection	Short Circuit	Close output, recovers automatically after fault removed
	Over Load	Hiccup, recovers automatically after fault removed
	No load	Power supply will not be damaged
Safety & EMC	Surge	L-N:2KV,L,N-PE:4KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA; I/P-G: 1500vac/5mA/1min;
	Safety Standards	GB19510.1-2009, GB19510.14-2009
Others	Working Temp.	-20°C~50°C
	Storage Temp., Humidity	-25°C~75°C, 5-95%RH
	tc	75°C
	Material	Metal
	IP Rating	IP65
	Lifetime	50,000h@ta:40°C
	Warranty Condition	5 Years
	Switch Cycle	>25,000 times
	Packing(weight)	Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: –mm(LWH)
	Dimension	16749.540.5mm(LWH)
