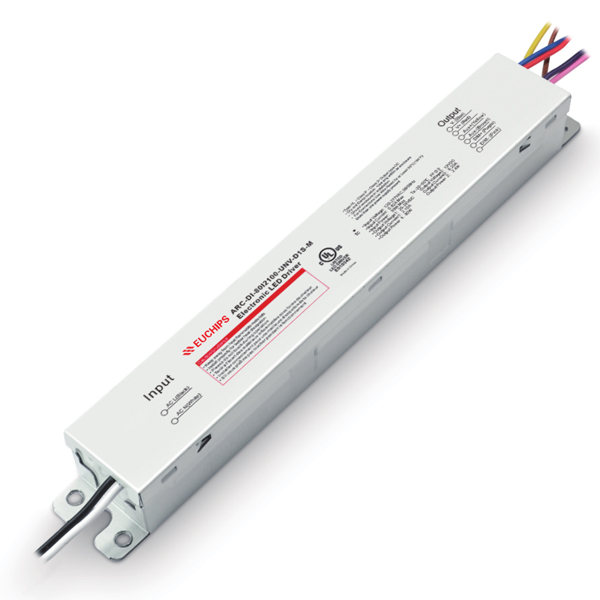

60-80W 0-10V CC Dimming Driver ARC DI 60-80 W M Series
60-80W 0-10V CC Dimming Driver ARC DI 60-80 W M Series
Features
· Supply Voltage 108-382Vac
· Great Surge Immunity 2.5k(ringwave)
· 50000Hour Life @ Tc=90℃
· 5Year Warranty@Tc<=90℃
· ±5% Output Current Accuracy
· 0-10V/DIP Dimmable
· UL Class P, Class 2
· Safety according to UL8750 & UL 1310
| Model No. | InputVoltage (VAC) | Input Current (A) |
PF |
Output Voltage (VDC) | MAX Output power (W) | MAXIout(mA) | Eff(Max) | Life at Tc 90℃(h) |
| ARC-DI-80I2100-UNV-DI-M | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-DI-80I1200-UNV-DI-M(EX) | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-DI-80I2100-UNV-DI+D3-M | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-DI-80I2100-UNV-DIS-M | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-DI-80I1200-UNV-DIS-M(EX) | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-DI-80I500-UNV-DIS+D3-M | 120-277 | 0.90(Max) |
0.90 |
24-38 | 80 | 2100 | 86% | 50000 |
| ARC-XX-AAIBBBB-CCC-XYZ-M | CCC | 0.22-0.90 |
0.90 |
24-50 | 60-80AA | 1200-2100 BBBB | 86% | 50000 |
Optional List:
|
XYZ= |
0-10V |
DIP |
12Vaux |
Dim-off |
CCC= |
120-277V |
120-347V |
XX= |
N |
(EX) |
Isolation |
Non-isolation |
|
N |
UNV |
√ |
DI |
√ |
√ |
|||||||
|
D1 |
√ |
√ |
MUV |
√ |
DN |
√ |
||||||
|
D1S |
√ |
√ |
√ |
√ |
||||||||
|
D1+D3 |
√ |
√ |
√ |
|||||||||
|
D1S+D3 |
√ |
√ |
√ |
√ |
Application and Performance Specification Information Subject to Change without Notification
Technical Parameters
| THD | <20%@70-100%load, refer to THD vs. Load curve |
| Inrush Current | 40A peak, 1.2ms duration, <0.25A2s@120Vac, Cold Start |
| Surge Protection | L-N 2.5KV L/N-PE 2.5KV The RING WAVE is IEC61000-4-12 |
| Leakage Current | 0.75mA max @277Vac 60Hz, UL8750 |
| Current Accuracy | ±5%Io |
| Ripple Current | Ip-p:8%Io max |
| Setup Time | 0.75s max |
| Short Circuit | Auto recovery. The output recovers when short is removed. |
| EMC | FCC Part 15 Class A |
| Operating Temperature | -20℃～+55℃ ；10%RH～100%RH |
| Storage Temperature | -40℃～+85℃； 5%RH～100%RH |
| MTBF | ≥320,000 hours, 75℃ case temperature (MIL-HDBK-217F) |
| Case Temperature | 90℃ max, marked in the Tc point of label |
