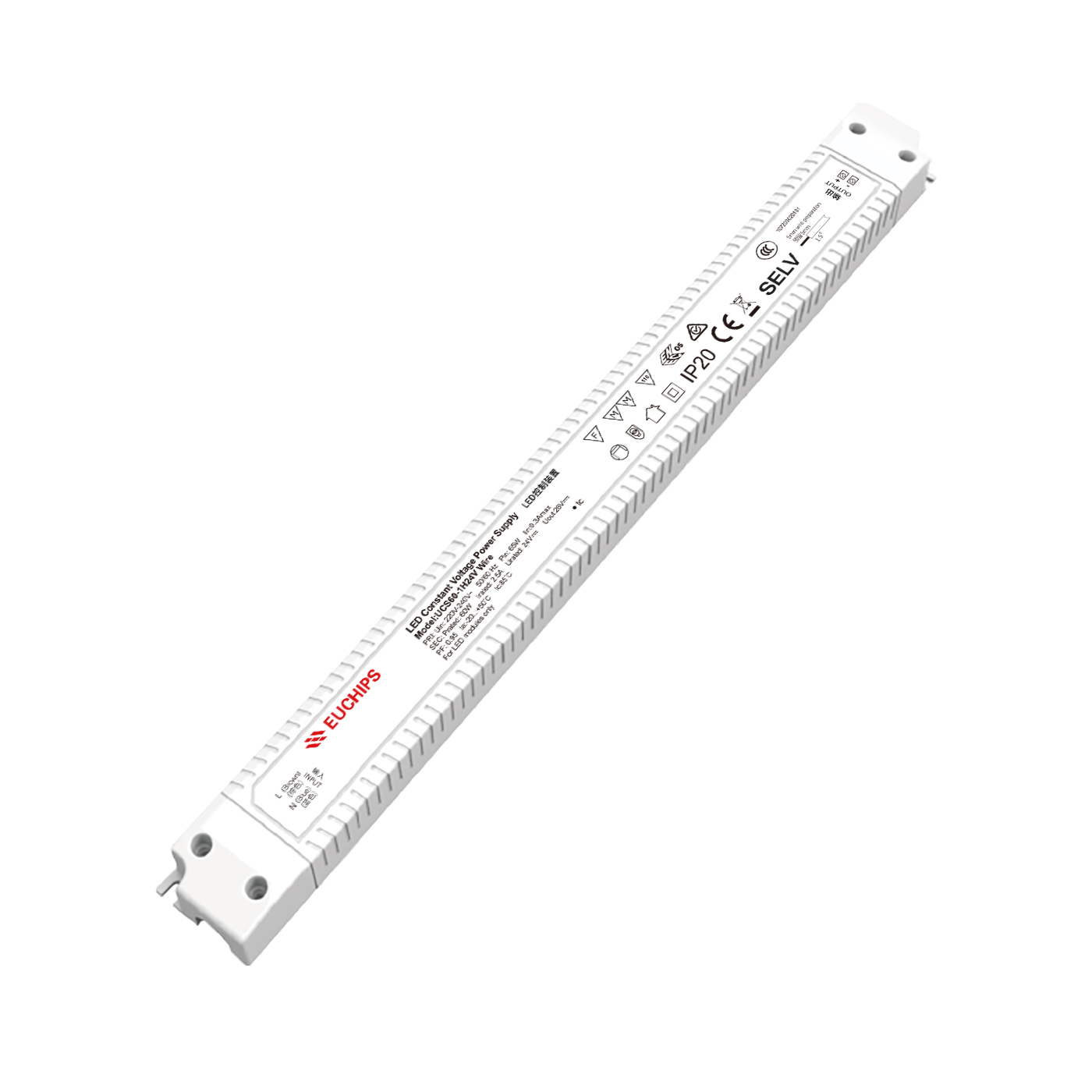

60W 24VDC Non-dimmable CV LED Driver UCS60-1H24V
60W 24VDC Non-dimmable Constant Voltage LED Driver UCS60-1H24V
Features
1. A channel constant voltage output Max
2. Applicable to indoor LED lights
3. Small size, high efficiency, high reliability and long life time
4. -25℃~+50℃, working temp
5. Protections: overload, overvoltage, short circuit self-recovery protection
6. Compliance with CE and ROHS
7. 100% Full load aging test
8. The warranty period is 5 years
Technical Parameter
| Model | UCS60-1H24V | |
| Input | Efficiency | 90%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| Current | 0.3Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| No load power | <0.5W | |
| Output | Current/Voltage/Power | 2.5A/24VDC/60W |
| Channel | 1 | |
| Ripple Voitage | ±20% | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 150g±5%/PCS; 50PCS/Carton; 8kg±5%/Carton; Carton Size: 435*346*100mm(L*W*H) | |
| Dimension | 312*30*18mm(L*W*H) | |
