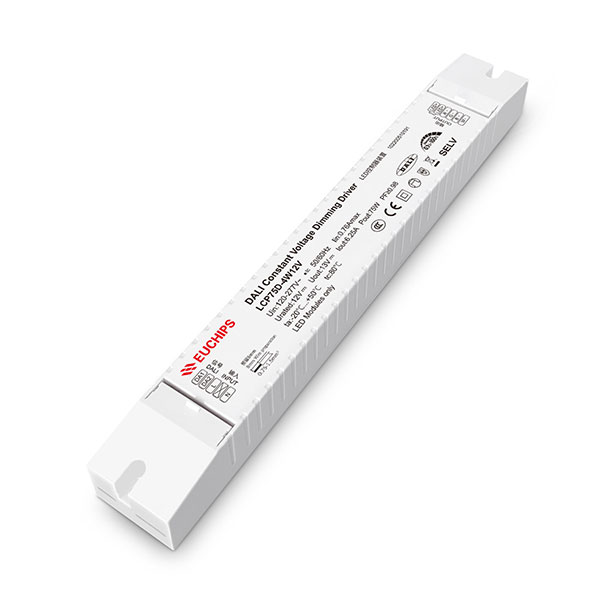

75W 12VDC 4ch DALI CV Driver LCP75D-4W12V
75W 12VDC 6.25A*4ch Constant Voltage DALI Driver LCP75D-4W12V
LCP75D-4W12V is a constant voltage mode output LED driver and complies with DALI standard protocol IEC 62386
Feature
1. Single channel constant voltage output,6.25A Max
2. Meet DALI Protocol IEC62386
3. High input voltage of 120VAC ~ 277VAC
4. Dimming effect smooth, no flicker
5. Over load protection; over voltage protection; short circuit protection
6. IP20, suitable for indoor LED lighting application
Technical Parameter
| Model | LCP75D-4W12V | |
| Input | Efficiency | 90%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.98@230VAC, full load | |
| THD(full load) | ＜5%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start 35A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 6.25A/12VDC/75W |
| Channel | 4 | |
| Current Tolerance | ±5% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over load | aHiccup, recovers after fault condition is removed | |
| Short Circuit | after fault removed Close output ,the output current recovers automatically | |
| Safety&EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃@110Vac 70℃@230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃@110Vac 70℃@230Vac | |
| Warranty Condition | 5 years | |
| Switch Cycle | ＞100,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
