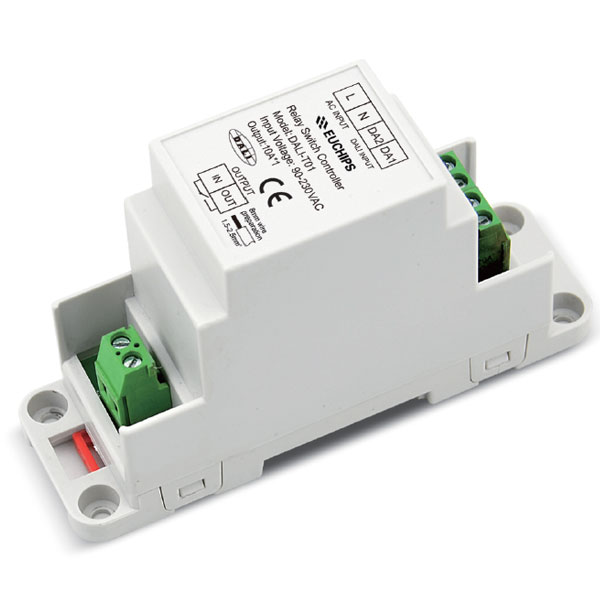

DALI Relay Switch Controller DALI-T01

Product features

1. Follow DALI IEC62386 standard protocol

2. The maximum current of a single channel is 10A

3. Wide voltage supply

4. Connected to DALI Bus, occupies 1 address, the address can be changed

5. Support grouping, scene editing

6. Support two mounting modes: guide rail and screw fixation

Technical Parameters

Model DALI-T01
Input voltage 90-240VAC
Input frequency 50/60Hz
Maximum switching current 10A
Communication protocol Standard DALI Agreement
The equipment size 111*35*67mm(L*W*H)
Packing size 353*234*232mm(L*W*H)
Gross weight 110g
Working temperature -20℃~50℃
Relative humidity 20-90%RH
