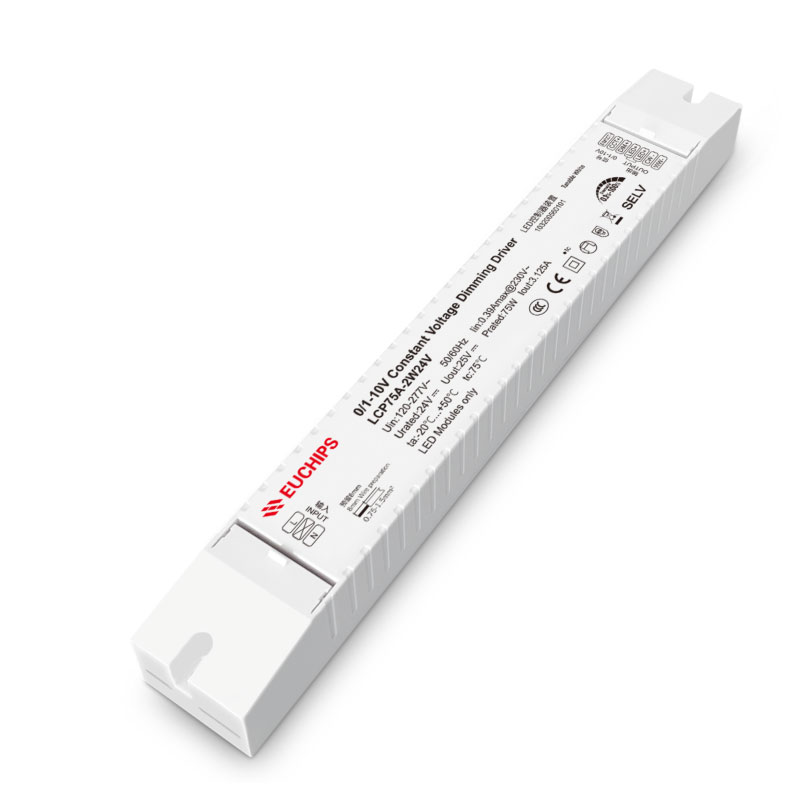

75W 24V 2ch 0/1-10V CV Driver LCP75A-2W24V
LCP75A-2W24V is a constant voltage mode output LED driver, adjustment of brightness and colour temperature，Dimming Range 0.1%-100%。
Product Features
·Double channel constant voltage output,3.125A Max
·High input voltage of 120VAC ~ 277VAC
·Dimming effect smooth, no flicker
·Over load protection; short circuit protection
·IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LCP75A-2W24V | |
| Input | Efficiency | 92%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC,Full load | |
| THD(full load) | 10%@230VAC, Full load | |
| AC Current(max) | 0.39Amax@230VAC | |
| Inrush Current(max) | Cold start,40A@230VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 3.125A/24VDC/75W |
| Channel | 2 | |
| Voltage Tolerance | ±3% | |
| Standby power | <0.5W | |
| No load output voltage | 24VDC±3% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | 0-10V |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Hiccup, recovers after fault condition is removed |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
| Safety& EMC | Surge | L-N:2KV L&N-GND:NC |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃ ~50℃, |
| Storage Temp., Humidity | -40℃ ~85℃ 20-90%RH | |
| tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
