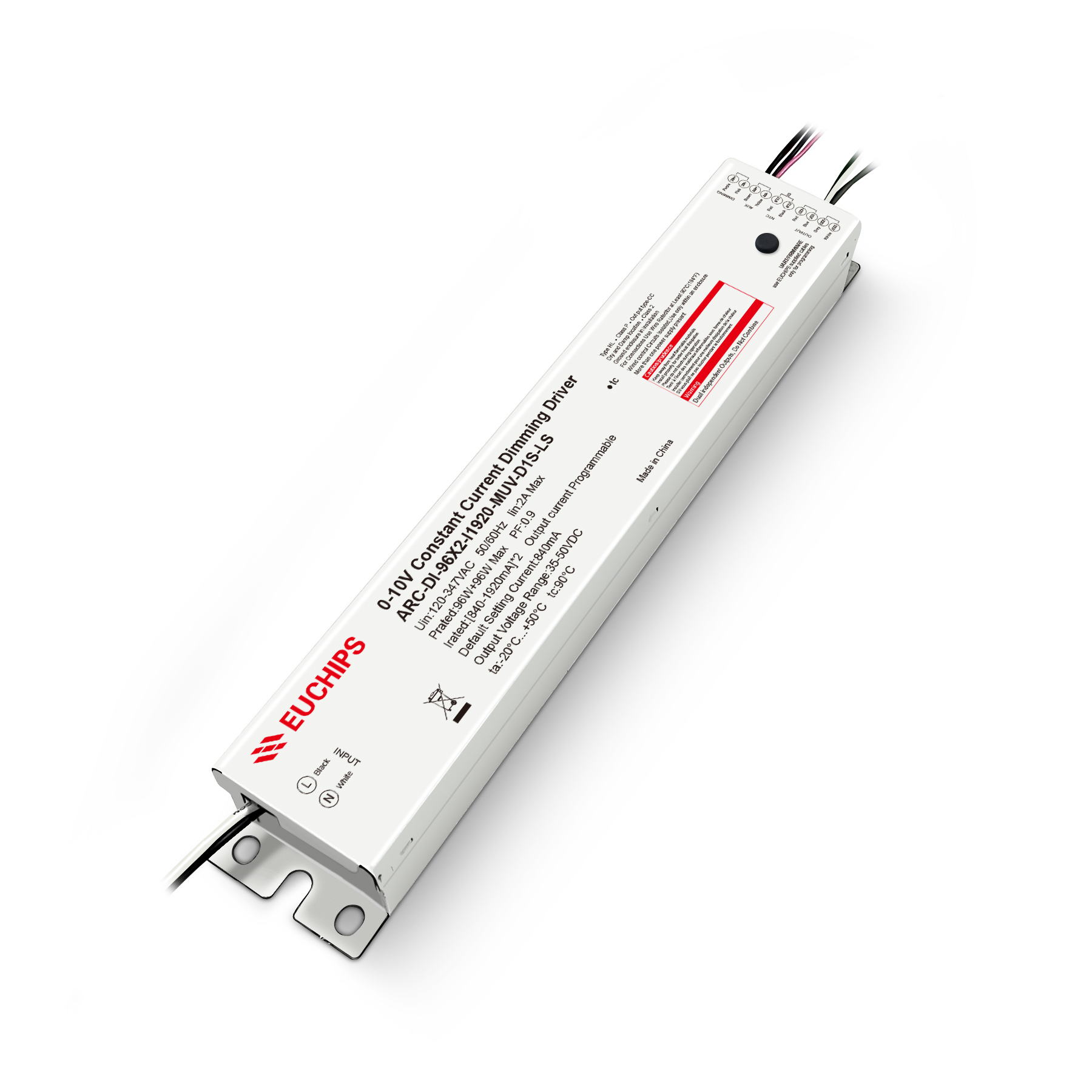

96W 0-10V CC Driver ARC-DI-96X2-I1920-MUV-D1S-LS
96W 0-10V CC Driver ARC-DI-96X2-I1920-MUV-D1S-LS
Features
· Universal AC Input Voltage(120-347VAC)
· Metal sheet case
· One isolated 0-10V dimming interface
· Flicker free, excellent camera compatibility
· Dual Output, Class2, Class P
· Operating temperature: -20℃~+50℃
· Comply with IEEE1789, UL8750
· Programmable
Output current(1mA step)
Dim to off
· Aux power, 12V/200mA
· ANSI C62.41 Category B 6kV
Model List
|
Model NO. |
Rated Input Voltage |
Max Output power |
Default Output Current |
Output Current Range |
Output Voltage Rated |
Aux Power |
|
ARC-DI-96X2-I1920-MUV-D1S-LS |
120-347Vac |
96W+96W max. |
840mA*2 |
(840-1920mA)*2 |
35-50VDC |
12V |
Technical Parameters
| INPUT | Parameter |
Min |
Typ. |
Max |
Note |
| Input Voltage |
120Vac |
- |
347Vac |
- | |
| Input Voltage range |
108Vac |
- |
382Vac |
- | |
| Rated Frequency |
47Hz |
50/60Hz |
63Hz |
- | |
| Input current |
- |
- |
2A |
@120Vac full load | |
| Inrush current |
- |
- |
100A |
230Vac, cold start (25℃) | |
| Power Factor |
>0.95 |
- |
- |
@120Vac 100% load | |
|
>0.9 |
- |
- |
@347Vac 100% load | ||
| T.H.D. |
- |
<5% |
@120Vac 100% load | ||
|
- |
<20% |
@347Vac 100% load | |||
| Efficiency |
- |
86-88% |
- |
@120Vac Vout=50V, Iout=1920mA, steady state | |
|
- |
88-90% |
- |
@347Vac Vout=50V, Iout=1920mA, steady state | ||
| Turn On Delay Time |
- |
- |
0.75S |
Cold Start, 1500-2100mA | |
| Output | Parameter |
Min |
Typ. |
Max |
Note |
| Programmable Output Current |
840mA |
- |
1920mA |
Per Channel | |
| Output current tolerance |
- |
- |
5% |
1500-1920mA | |
| Output Voltage |
35V |
- |
50V |
The derating begins when the input voltage is less than 108 ±10%Vac | |
| Output Power |
- |
- |
192W |
Total Power, See “Operating window” | |
| Line Regulation |
- |
- |
3% |
- | |
| Load Regulation |
- |
- |
5% |
VOUT from MIN. to MAX. | |
| Ripple Current |
- |
- |
10% |
Full Load, (Iomax-Iomin)/(Iomax+Iomin) | |
| Output Current Overshoot |
- |
- |
10% |
Turning Power ON | |
| 0~10V or Resistor Dimming | Dimming Curve | Linear. please see “Dimming curve”. | |||
| Source Current on 0~10V Dimming Pin |
- |
200uA |
- |
- | |
| Light Off |
- |
0.7±0.1V |
- |
- | |
| Dimming Voltage for Full Bright |
- |
8.5V |
- |
- | |
| Dimming Range |
1% |
- |
100% |
||
| External Resistor Value at Full Bright |
- |
40 |
- |
kΩ | |
| Leakage Voltage |
- |
- |
20 |
Voltage between DIM- and Ground | |
| Programming | The driver can be programmed through Programming Port.·Output current(1mA step)·OTP point of driver, LED thermal protection | |||||
| Programming Port | the driver can be easily connected to a digital control system, to set the driver(eg: output current , dimming level, and so on). | |||||
| Programming software | USBNode Tool | |||||
| Programming tool | TBD | |||||
| Operating voltage |
- |
5V |
- |
|||
| Auxiliary source | Output Power |
- |
- |
2.4W |
- |
|
| Output Voltage |
- |
12VDC |
- |
- |
||
| Voltage tolerance |
- |
- |
8% |
- |
||
| Protection | Parameter |
Min |
Typ. |
Max |
Note |
|
| Over Voltage Protection |
- |
- |
60V | Recover automaticallyafter fault conditions is removed. | ||
| Over Temp. Protection |
- |
90℃ |
- |
Programmable.Current foldback at hotspot greater than TOTP | ||
| Short Circuit Protection | Recover automatically after fault conditions is removed. | |||||
| Environment | Storage Temperature |
-40℃ |
- |
85℃ | Total Power, See “Operating window” | |
| Ambient Operating Temperature (ta) |
-25℃ |
- |
50℃ | |||
| Max. Case Temperature (tc) |
- |
- |
90℃ | Hot spot on case | ||
| Operating Relative Humidity (Ha) |
10% |
- |
90% | Non-Condensing | ||
| Acoustic Noise |
- |
- |
24dBA | Measured from 1 m w/o dimmer. | ||
| Cooling | Convection Cooling | |||||
| IP Rating | Dry and damp UL approved | |||||
| Others | Life Time | 50kHrs |
- |
- |
Full Load, 80℃ case temperature, | |
| MTBF | 200kHrs |
- |
- |
|||
| Warranty | 5 Years Warranty at Tc ≤80°C | |||||
| Flicker | IEEE 1789,Title 24 | |||||
| Safety Compliance | CUL/UL | UL8750, CAN/CSA-C22.2 No. 250.13 | ||||
| Electromagnetic Compliance | EMC Requirements | Standard | Conditions |
| EMI Emissions | FCC Title 47 Part 15B | Class A | |
| Voltage Fluctuations and Flicker | IEC61000-3-3 | ||
| IEC 61000-4-2 | ±8kV air Discharge, ±6kV Contact Discharge | ||
| ANSI C82.77-2015 | Category B, 6kV，Comb wave | ||
| IEC 61000-4-11 | >95% dip, .5 period; 30% dip, 25 periods; 95%reduction, 250 periods | ||
| IEC 61000-4-4 | ± 2kV Direct couple to Line input, 5kHz repitition rate, 15mS duration, 300mS period. 7 coupling paths, 1 minute per path (14 total combinations) | ||
| Note: Unless otherwise specified, all the above parameters are measured at ambient temperature of 25℃ and rated voltage. | |||
Packaging
|
Driver quantity (pcs) |
Layer |
Weight (kg) |
Outer dimensions of Carton L*W*H(mm) |
|
20 |
4 |
TBD |
TBD |
