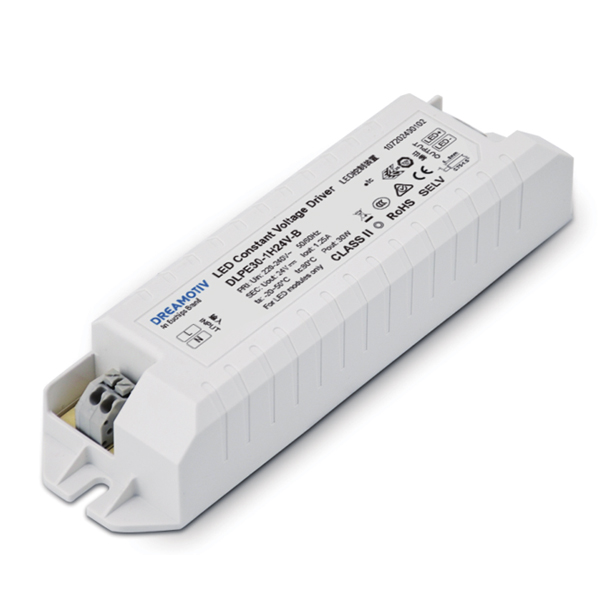

30W 24VDC Non-dimmable CV Driver DLPE30-1H24V-B
30W 24VDC Non-dimmable CV Driver DLPE30-1H24V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20°C~+50°C, working temp
· Protections: Over temperature, Over Load, Short circuit
· The typical efficiency of the machine is up to 82%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Parameters
|
Model
Input |
DLPE30-1H24V-B | |
| Efficiency | 82% | |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.9 | |
| THD(full load) | 30% | |
| Current | 0.17Amax | |
| Input Power@ None Load | 0.5W | |
|
Output |
Current/Voltage/Power | 1.25A/24VDC/30W |
| Percent of the output voltage ripple | 10% | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 1.2s | |
| Protection | Short Circuit | YES |
| Over Temperature | YES | |
| Over Load | YES | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | Input-output: >3.75kV | |
| Safety Standards | IEC 62384:2006, GB 24825-2009 | |
| EMI & Imunity | EN55015, EN61547 | |
|
Others |
Working Temp. | -20°C~+50°C |
| Storage Temp., Humidity | -40°C~85°C, 20-90%RH | |
| tc | 80°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:75°C | |
| Warranty Condition | 3 Years | |
| Switch Cycle | 15,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size:316*234*179mm(L*W*H) | |
| Dimension | 150*40*28mm(L*W*H) | |
