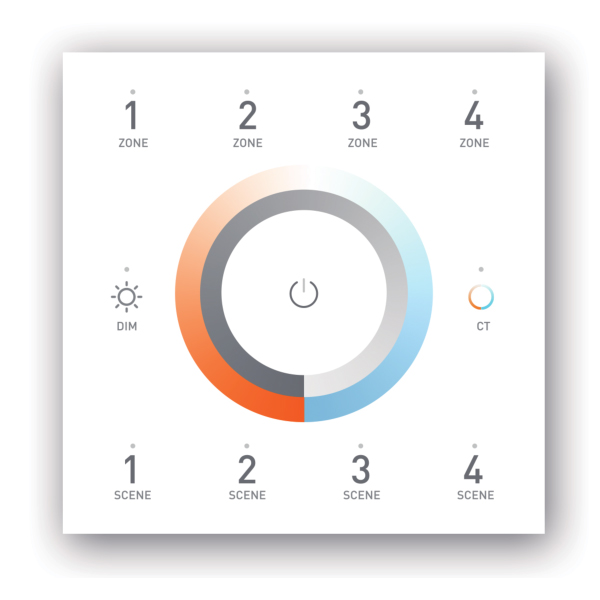

DMX Touch Panel DMX-E06
DMX Touch Panel DMX-E06
Features
· comply with DMX512 (1990) international standard protocol
· supports brightness control of 4 regions independently or synchronously
· support real-time adjustment of brightness and color temperature
· highly sensitive glass touch buttons and adjustment rings for more precise control
· made of glass, the appearance is fashionable and beautiful
· compatible with any DMX luminaire or DMX driver
· can be installed on the wall, suitable for all kinds of wall boxes.
· support RF functions, color temperature, dimming, brightness, call scenes, etc
Technical Parameters
| Model | DMX-E06 |
| Input Voltage | 12-24VDC |
| Dimming Type | DMX512 |
| Input Power | 2.5W |
| Area number | 4 |
| Working Temperature | 0℃~+50℃ |
| Channels | 8 |
| Packing Size | –(mm) |
| Dimension | –(mm) |
| N.W | –g |
| Transmission Distance | 300m |
| RF Function | Support |
