Features
- Maximum output current of each channel:10A, and bypass button for direct control supported.
- Control functions: Statistical ON time, Channel status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold control, Curtain control, etc.
- Logic function: AND, OR, XOR, Gate.
- Heating function: PWM(1bit/1byte) control output.
Technical Parameters
| Product Model |

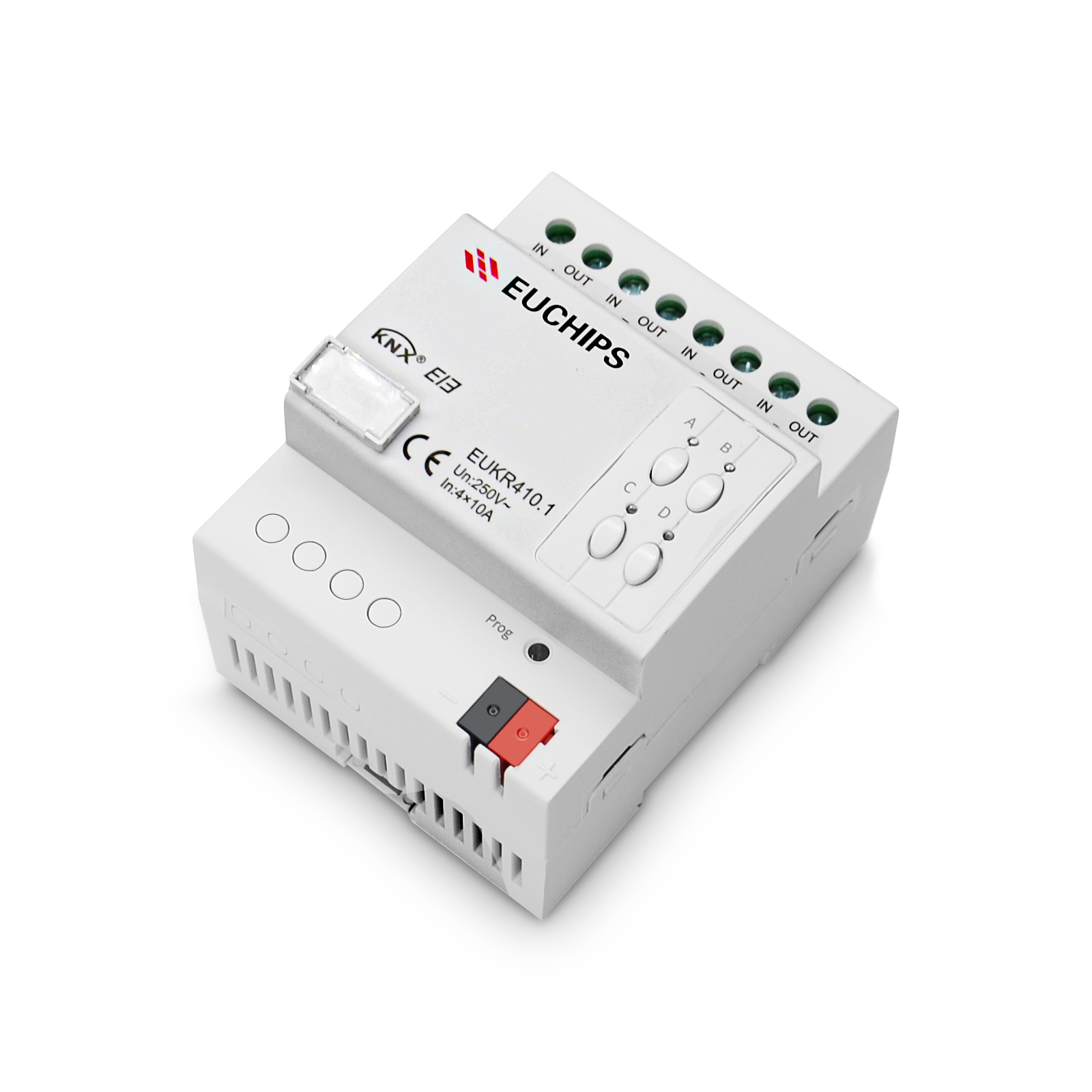

EUKR410.1 |
| Rated voltage |
30VDC |
| Rated current |
15mA/30VDC |
| Input voltage |
100-240VAC~50/60Hz |
| Communication protocol |
KNX |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| Rated switch current |
10A, maximum surge 500A |
| Mechanical life time |
>100,000 hours |
| Input/output cable |
2.5-4mm² |
| Output channel |
4CH, 10A/CH |
| Electric capacity |
<300μF |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounting |
| Installation size |
72mm×64mm×90mm |
| Net weight |
256g |
| Housing material |
Flame-retardant nylon |
