Features
- 12 channels for relay control.
- Maximum output current of each channel: 16A.
- Types of control targets: statistical ON time, status response, status recall, staircase light, flashing, ON/OFF delay, protection delay, threshold function, scenes, curtains, etc.
- Logic function: AND, OR, XOR, Gate.
- Heating function: PWM(1bit/1byte) control output.
Technical Parameters

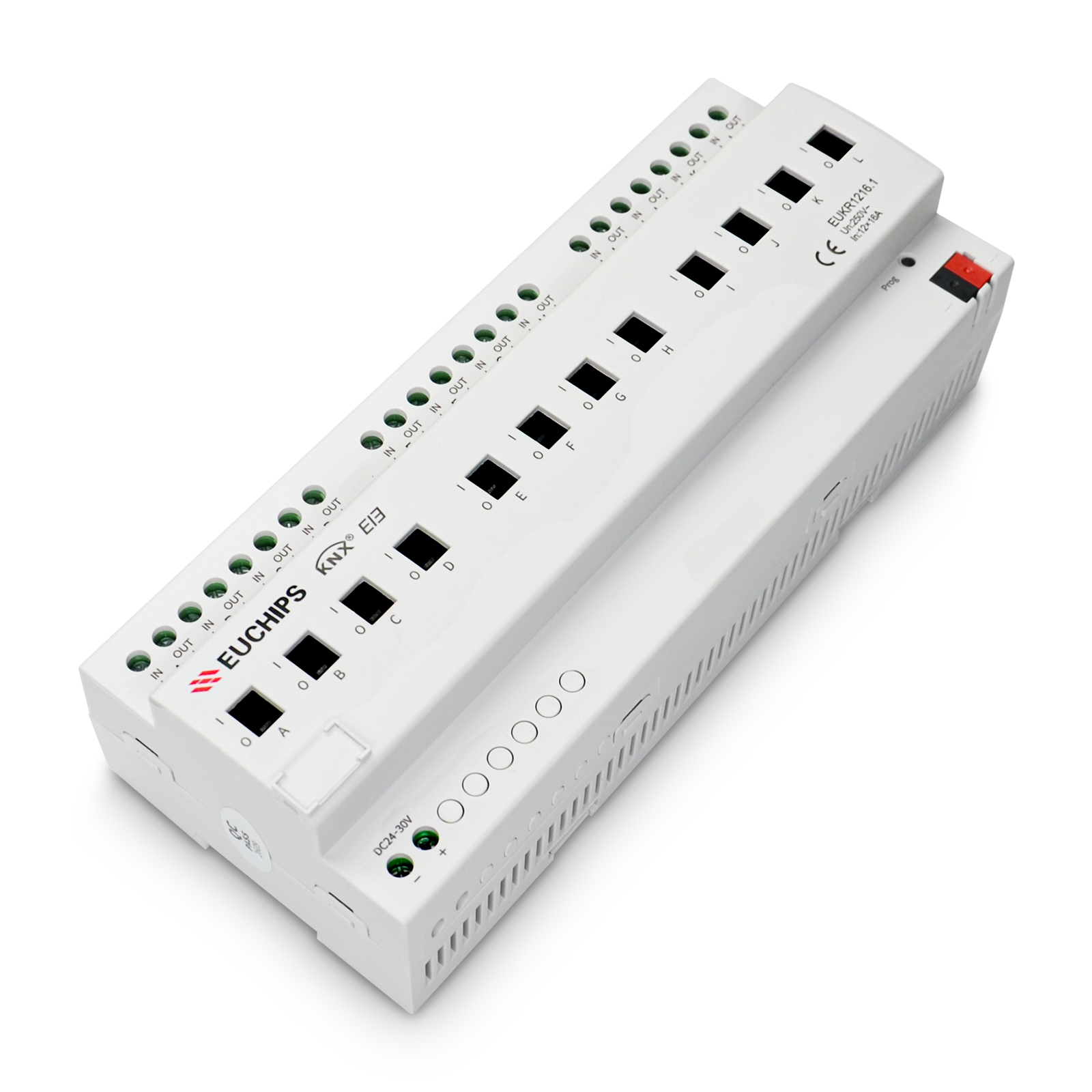

| Product Model |
EUKR1216.1 |
| Rated voltage |
21-30VDC |
| Rated current |
15mA/30VDC |
| Input voltage |
120V/240VAC~50/60Hz |
| Communication protocol |
KNX |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| Rated switch current |
16A lighting load, maximum surge 500A |
| Mechanical life time |
>100,000 hours |
| Input/output cable |
2.5-4mm² |
| Output channel |
12CH, 16A/CH |
| Electric capacity |
<300μF |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounting |
| Installation size |
216mm×64mm×90mm |
| Net weight |
823g |
| Housing material |
Flame-retardant nylon |
| Product Certifications |
RoHS, CE, KNX |
