Features

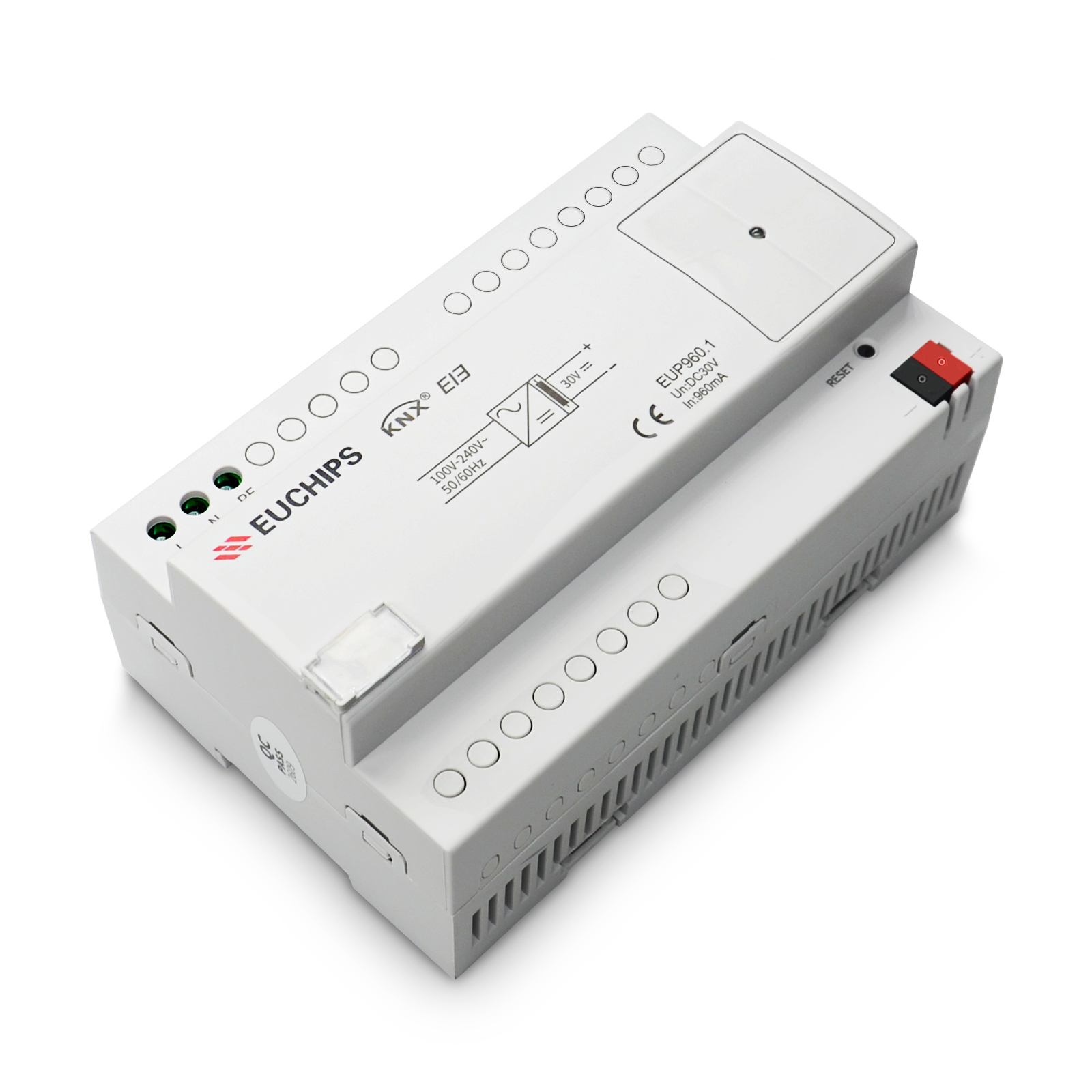

- KNX Power Supply Module provides maximum current 960mA to KNX bus.
- Overload protection and over current protection.
- Output short circuit protection.
- Keep pressing the RESET button for 2 seconds to reset the device.
Technical Parameters
| Product Model |
EUP960.1 |
| Output voltage |
30VDC |
| Output current |
960mA |
| Rated current |
160mA/220VAC 50Hz |
| Input voltage |
100V/240VAC~50/60Hz |
| Communication protocol |
KNX |
| Power loss |
< 20% |
| Power-on time |
<2s |
| User controls |
Reset Button |
| Green LED |
In normal working mode |
| Red LED |
Overload (I> Iₘₐₓ) |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounted |
| Installation size |
144mm×64mm×90mm |
| Net weight |
390g |
| Housing material |
Nylon |
