Features
- Output circuits: 4 dimming channels.
- Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode for inductive loads, and the trailing edge dimming mode is recommended for other load types.
- Parallel channels can form heavy current output.
- Manual control: Manual switching, dimming for each channel.
- Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection, Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming, Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM)..
Technical Parameters
| Product Model |

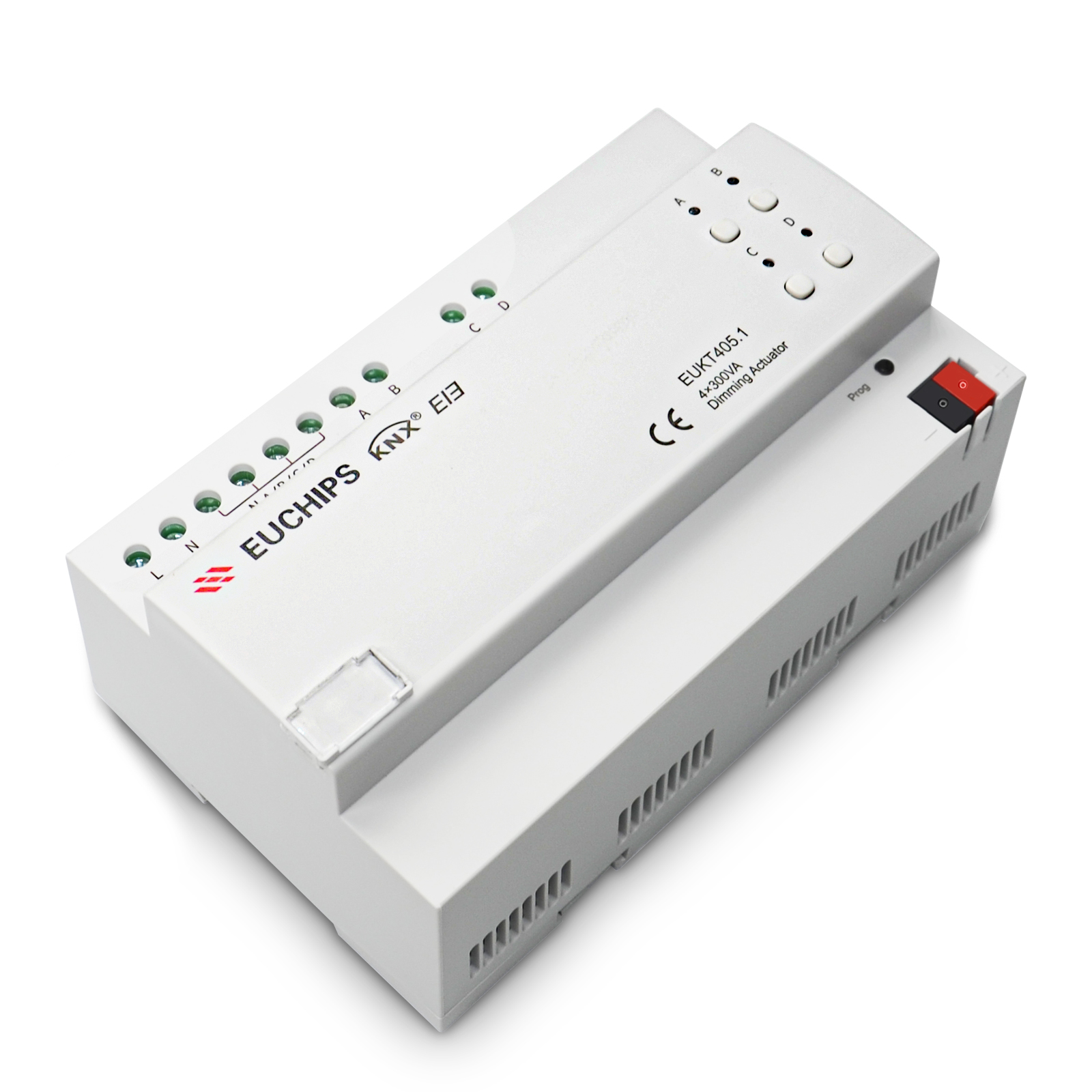

EUKT405.1 |
| Rated voltage |
30VDC |
| Rated current |
20mA/30VDC |
| Input voltage |
100V/240VAC~50/60Hz |
| Output channel |
4CH, 1.5A/CH |
| Maximum total output current |
6A |
| Communication protocol |
KNX |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| User control |
Manual operation for each channel |
| Input/output cable |
2.5-4mm² |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounting |
| Installation size |
144mm×90mm×64mm |
| Net weight |
412g |
| Housing material |
Flame-retardant Nylon |
| Product Certifications |
RoHS, CE, KNX |
